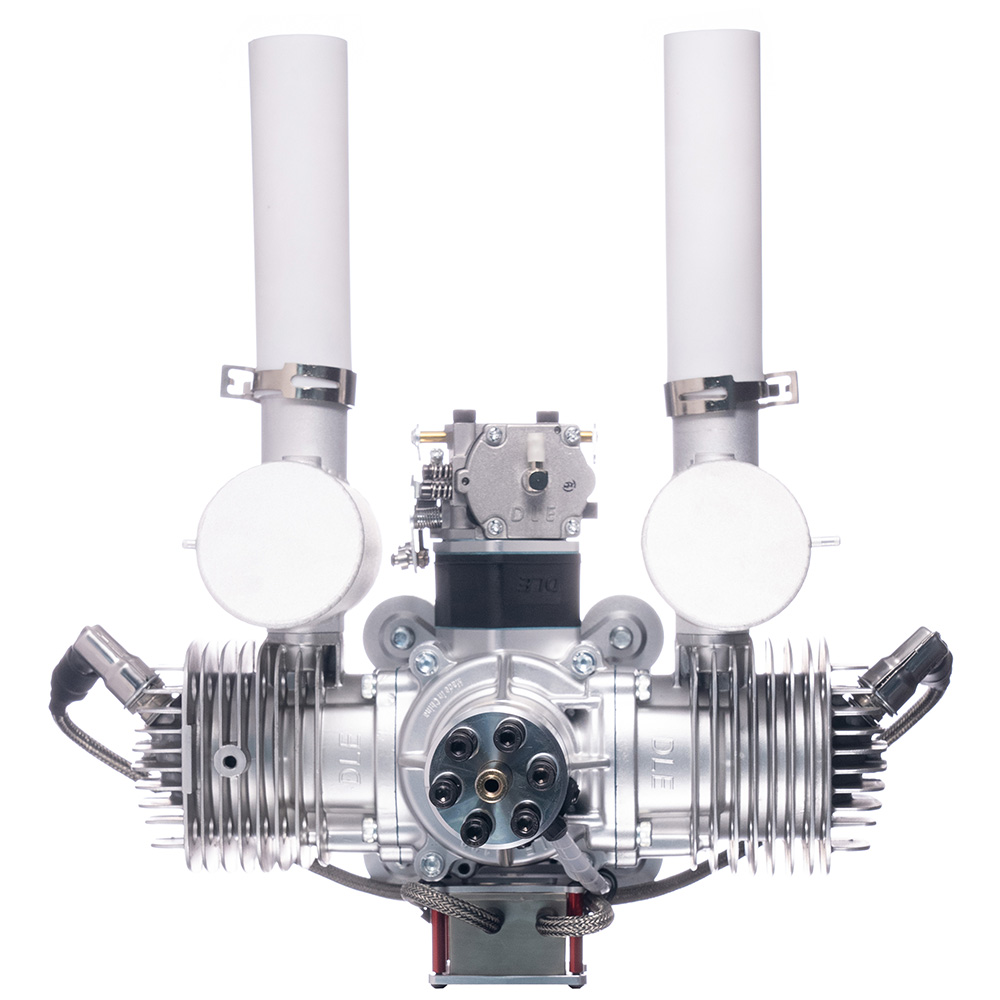

DLE120 Pro 120cc Twin Gas Engine with Electronic Ignition and Mufflers

The DLE-120 delivers 50 pounds of static thrust more than enough power for intense 3D maneuvers. Twin opposed cylinders reduce vibration and engine wear and increase performance. Mufflers, standoffs and electronic ignition boost performance even further. The DLE-120 delivers the most punch at the lowest weight and the lowest price of any engine in its class. Pick up the DLE-120 and fly with performance confidence.

Introducing the Enhanced DLE120 Engine: Precision, Convenience, and Performance Redefined

This is the DLE120 Pro twin gas engine, meticulously enhanced by Mugin UAV from the standard version, crafted to provide aviation enthusiasts with an unparalleled flying experience.

🔧 DLE120 Pro Upgraded Features:

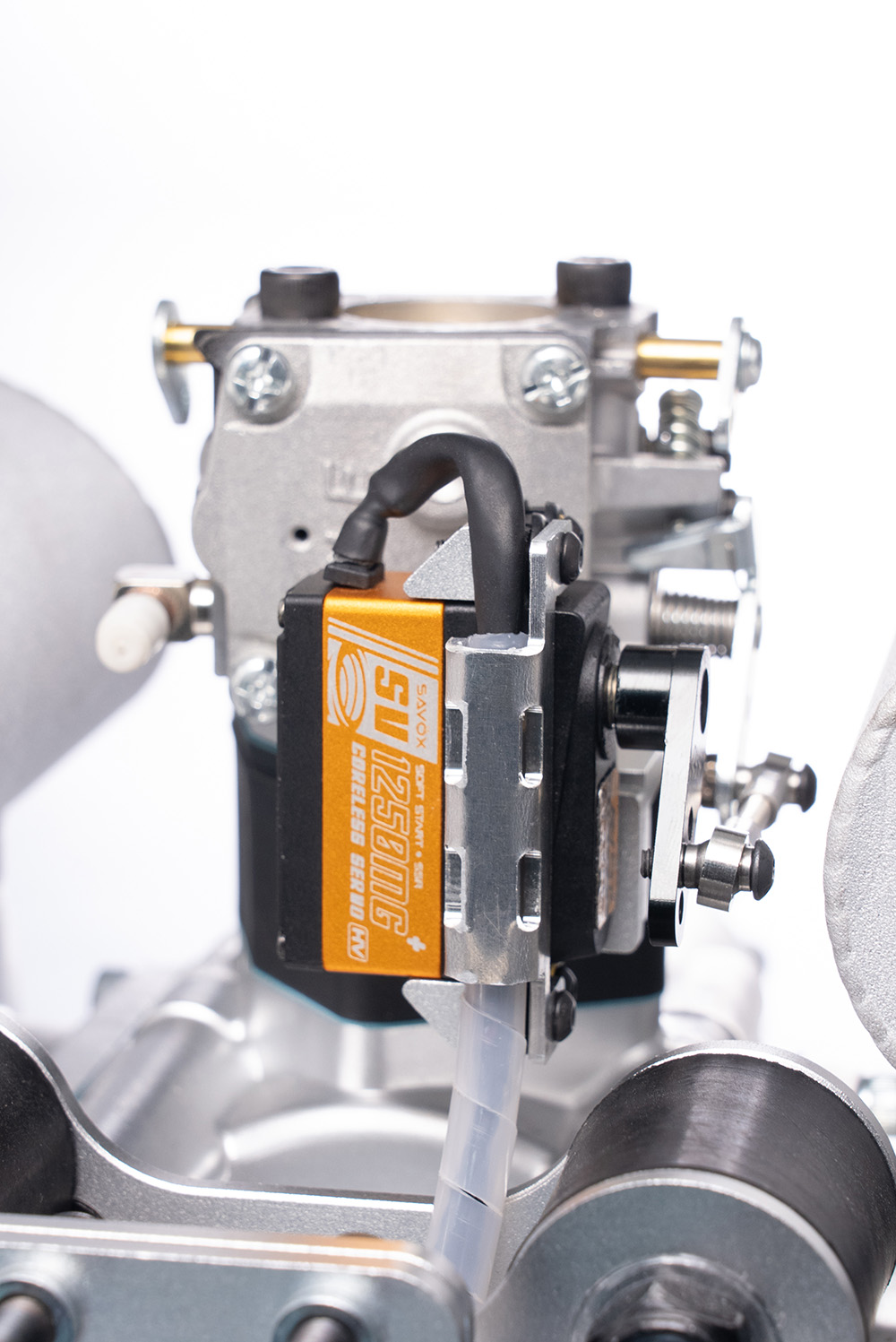

• Built-in Savox 1250 Throttle Servo: Experience precise throttle control with the integration of the Savox 1251 servo, ensuring accurate engine cycles every time.
• Engine Mounting Bracket & Base Plates: Simplify your installation process with our newly added mounting bracket and base plates, designed for a seamless fit.

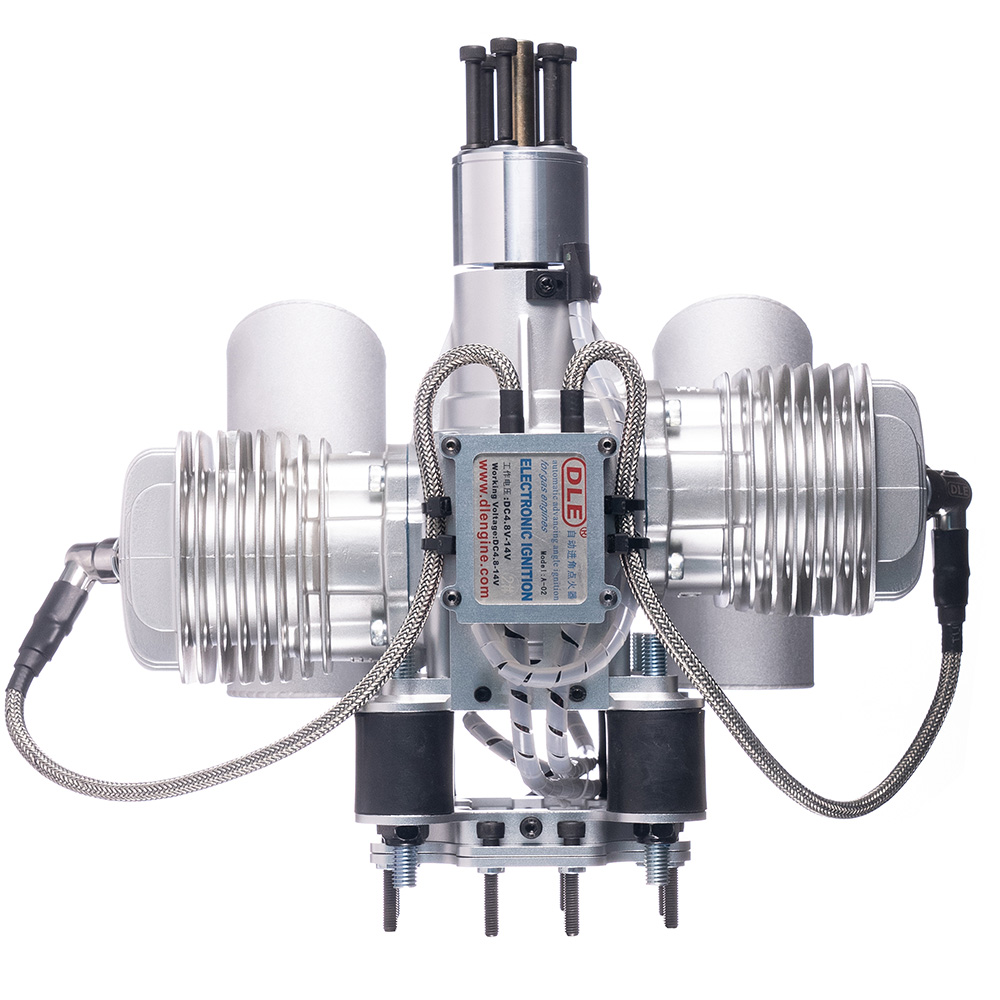

• Ignition Mounting Bracket: Our dedicated bracket ensures that the ignition system remains stable and secure, optimizing performance.

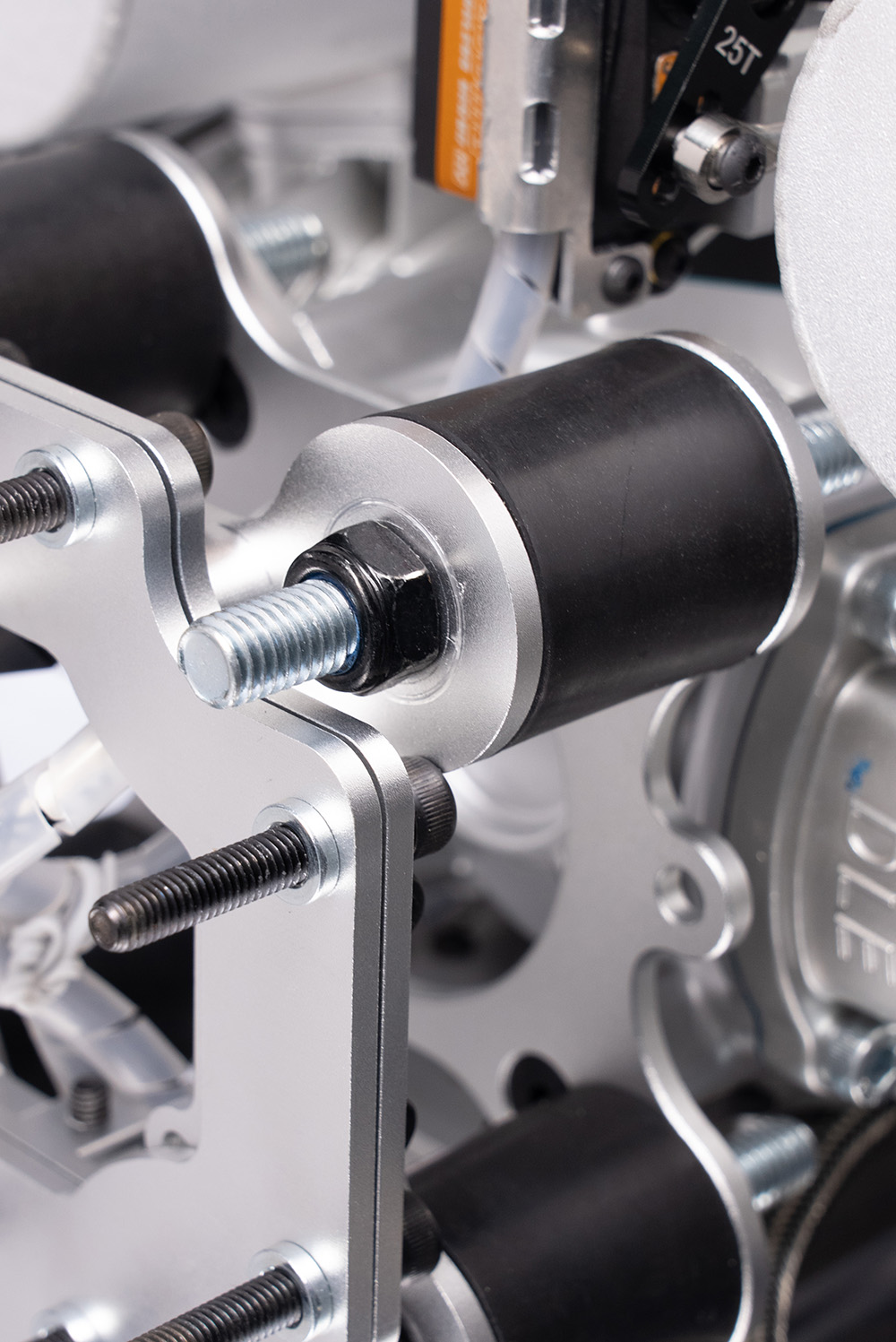

• Vibration Dampening System: Say goodbye to excessive vibrations! Our advanced dampening system greatly enhances the engine’s stability, ensuring smoother operations.
• Redesigned Throttle Intake: We’ve replaced the original engine intake with a design that bypasses the throttle, ensuring more accurate engine cycles and improved fuel efficiency.

Benefits:

• Ease of Installation: Our enhancements are tailored to make the engine installation process as straightforward as possible.
• Improved Vibration Dampening: Experience a significant reduction in vibrations, leading to better aircraft stability and longevity.
• Accurate Engine Cycles: With the throttle no longer passing through the intake, expect more precise engine cycles, optimizing performance and fuel consumption.

Performance Data:
Power: 12hp at 7500rpm
Idle: 1300rpm
Static Thrust: 26.5kg at 100 Meters 23.5kg at 1800 meters
Displacement: 120cc
Bore and Stroke: 47mm x 35mm
Compression Ratio: 10.5:1
Engine Weight: 2310 gram
Mufflers : 220 gram
Ignition: 170 gram

Specifications
Fuel: 2C Regular Gasoline mixed 30:1 – 40:1 (Mineral based for break-in, 40:1 quality synthetic thereafter)
Propeller: 27×10, 26×12, 27×12, 28×10 (2 Blade), 25×12;26×10(3 Blade)
Ignition Battery: 4.8 – 8.4v (max) >= 1200mah
Replacement Spark Plug: NGK CM6 or equivalent
Plug Gap: 0.018″ to 0.020:
Installation Torque: 7 to 8 ft-lbs
