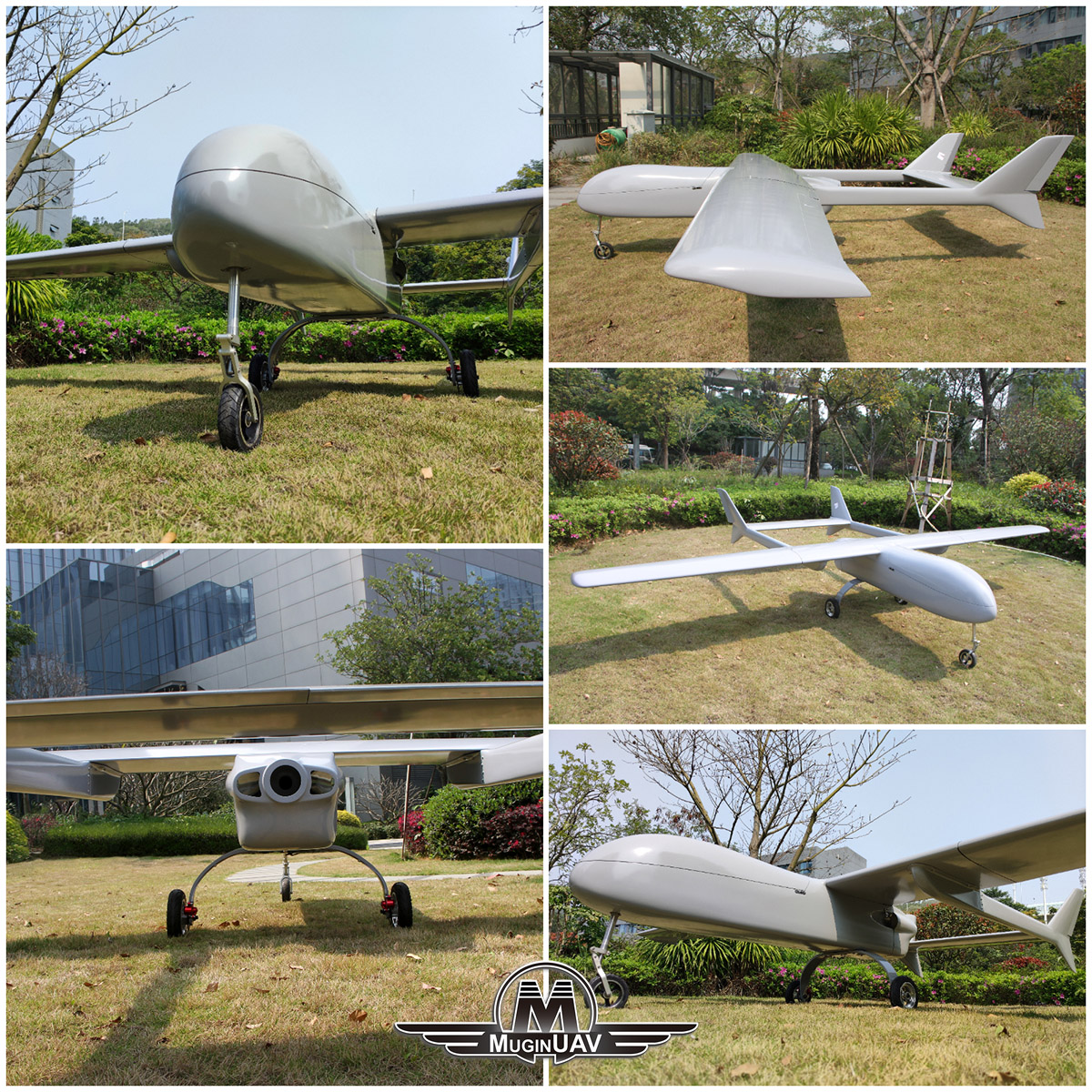

Mugin-5 Pro 5000mm Carbon Fiber UAV Platform

$10,999.00

We always hear to what our customers say, to achieve a longer flight time than the 4450 VTOL, we release a new version of UAV platform with 5000mm wingspan.

The same to the latest version of 4450 VTOL,  we have added the new upgrade disc brakes onto the landing wheels, so it is much safer while landing on the runway.

We have strengthened the internal ribs and other structures. For easier carrying and international shipping, each boom is now changed to two pieces.

The maximum flight time is supposed to be over 7 hours. The maximum take-off weight can be up to 90kg and and the payload can be up to 25kg.

Category: Tags: , , , ,

Description

85kg Take-off Weight
25kg Payload
>7 Hours Flight Time
Disc Brake System

We always listen to our customers’ feedback, and in response to their needs, we are proud to introduce the Mugin-5 Pro 5000, a new and improved fixed-wing UAV platform with a wingspan of 5000mm. Building upon the success of its predecessor, the 4450 Fixed-wing UAV platform, the Mugin-5 Pro 5000 incorporates several enhancements to elevate its performance.

One notable upgrade is the addition of a cutting-edge disc brake system to the landing wheels, ensuring safer landings on the runway. We have also reinforced the internal ribs and structures, enhancing the overall durability and extending its lifespan. To facilitate transportation and international shipping, each boom has been divided into two pieces, making it more convenient to carry.

Referred to as the Skyeye 5000, this fixed-wing UAV platform is equipped with a high-quality Kevlar fuel tank. With a fuel capacity of 30 liters, it boasts an estimated maximum flight time exceeding 7 hours, surpassing its predecessors. The Mugin-5 Pro 5000 can handle a maximum take-off weight of up to 85kg and carry a payload of approximately 25kg, making it an ideal choice for long-range transportation missions.



Disclaimer:

Any illegal or military utilization of Mugin UAVs is forbidden. Mugin Limited will not take any responsibility for any consequences caused by illegal or military use, nor provide any technical support or promise for any obtaining through irregular channels.

We shall not be related to any third party liability by using the products. The direct or indirect application of Mugin UAVs and products will be considered as unconditional acceptance of this statement. If you have any dissent of any clauses, please immediately suspend the usage.

Before purchasing, please make certain that you accept our Statement on Military Use of UAVs.

Specifications:

  • Wingspan: 5000mm
  • Length: 3500mm
  • Fuselage maximum width: 375mm
  • Wing area: 261.5 dm2
  • empty weight: 33.64kg
  • Maximum speed: 150km/hr
  • Cruise Speed: 120km/hr
  • Stalling speed: 55km/hr
  • Maximum Take-off Weight: 90kg
  • Payload: 25kg
  • Equipments cabin size: 920mmx340mmx350mm
  • Volume of fuel tank: 30 Liters
  • Take off distance: 60 meters
  • Landing distance: 85 meters
  • Maximum Flying Time: >7 Hours

Recommended Power Setup (Not included) – US$9399.00

* DLA 180cc EFI Engine with Starter & Alternator x 1
* Pilot PY-48AH Servo x 2
* Pilot PW-28AH Servo x 4
* Tower Pro MG958 Servo x 1
* 32″ x 10″Forward Propeller x 1
* AT23D Long UAV Pitot Tube x 1
* Build Kit (UBEC, 3D part, Wires, Connectors etc.) x 1

For more, please take reference to Mugin 5000 Fixed-wing Flight & Propulsion System.
