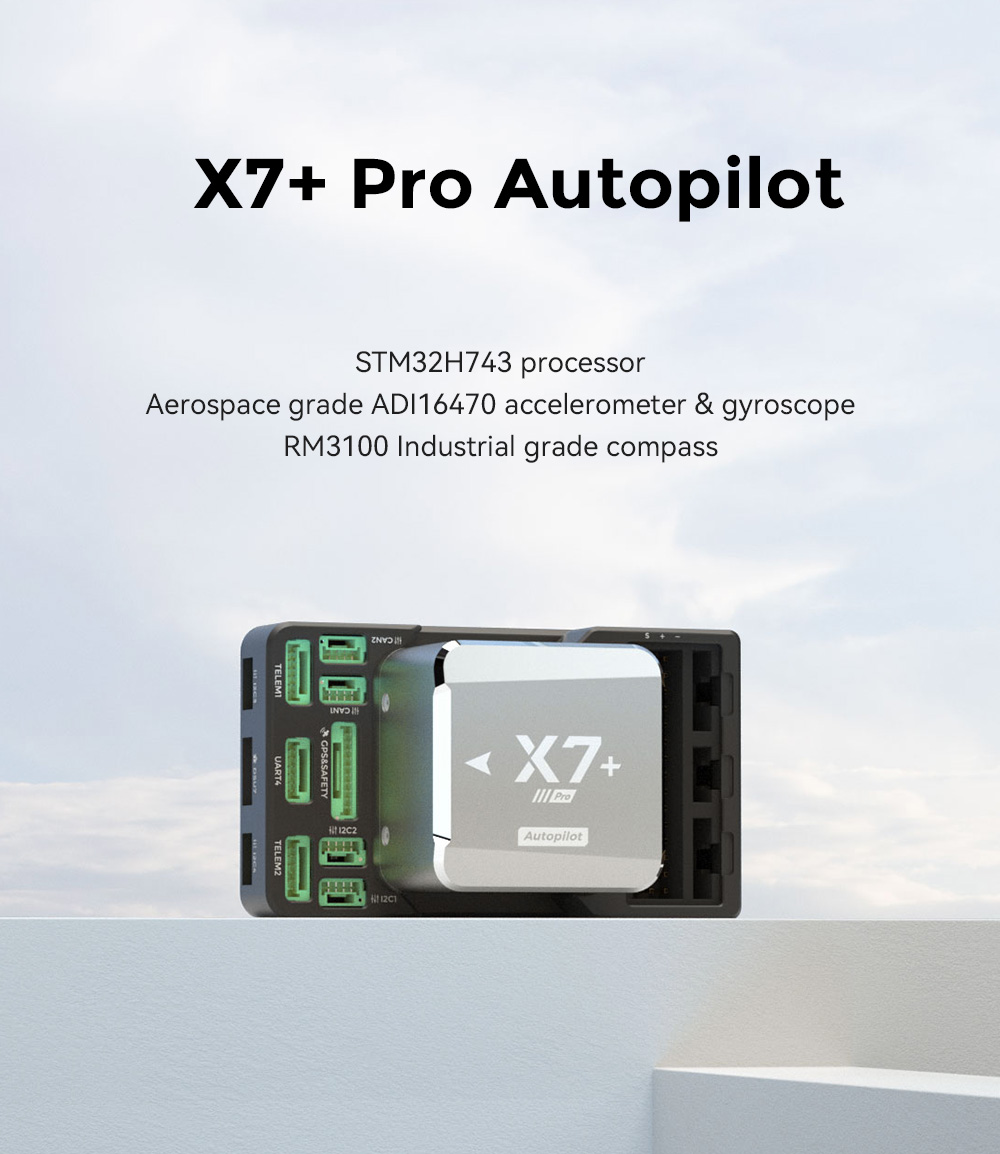

CUAV X7+ Pro Advanced Flight Autopilot System

$889.00

Experience the next level of drone navigation with the CUAV X7+ Pro Advanced Flight Autopilot System. Designed with precision and efficiency in mind, this controller is powered by the high-performance STM32H7 series processor, ensuring rapid response and reliable performance.

Key Features:

  • Superior Processing Power: Equipped with the STM32H7 series processor, operating at a frequency of 480Mhz, and boasting 1024K RAM and 2048K FLASH.
  • Advanced Sensor Integration: Features aerospace-grade ADI16470 accelerometer & gyroscope, RM3100 industrial-grade compass, and multiple other sensors ensuring accurate flight data.

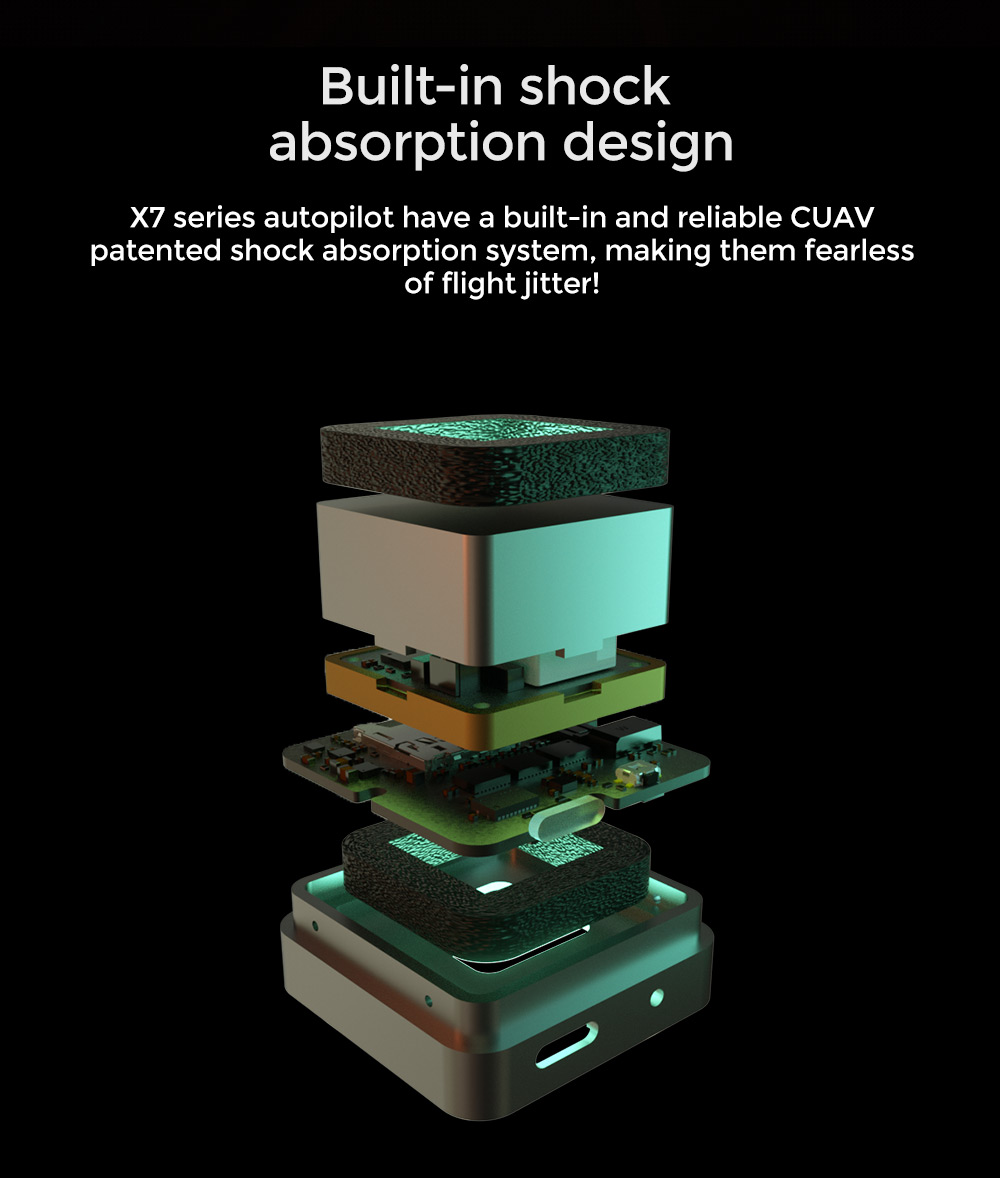

  • Built-in Shock Absorption: Features CUAV’s patented shock absorption system, ensuring stability even in turbulent conditions.

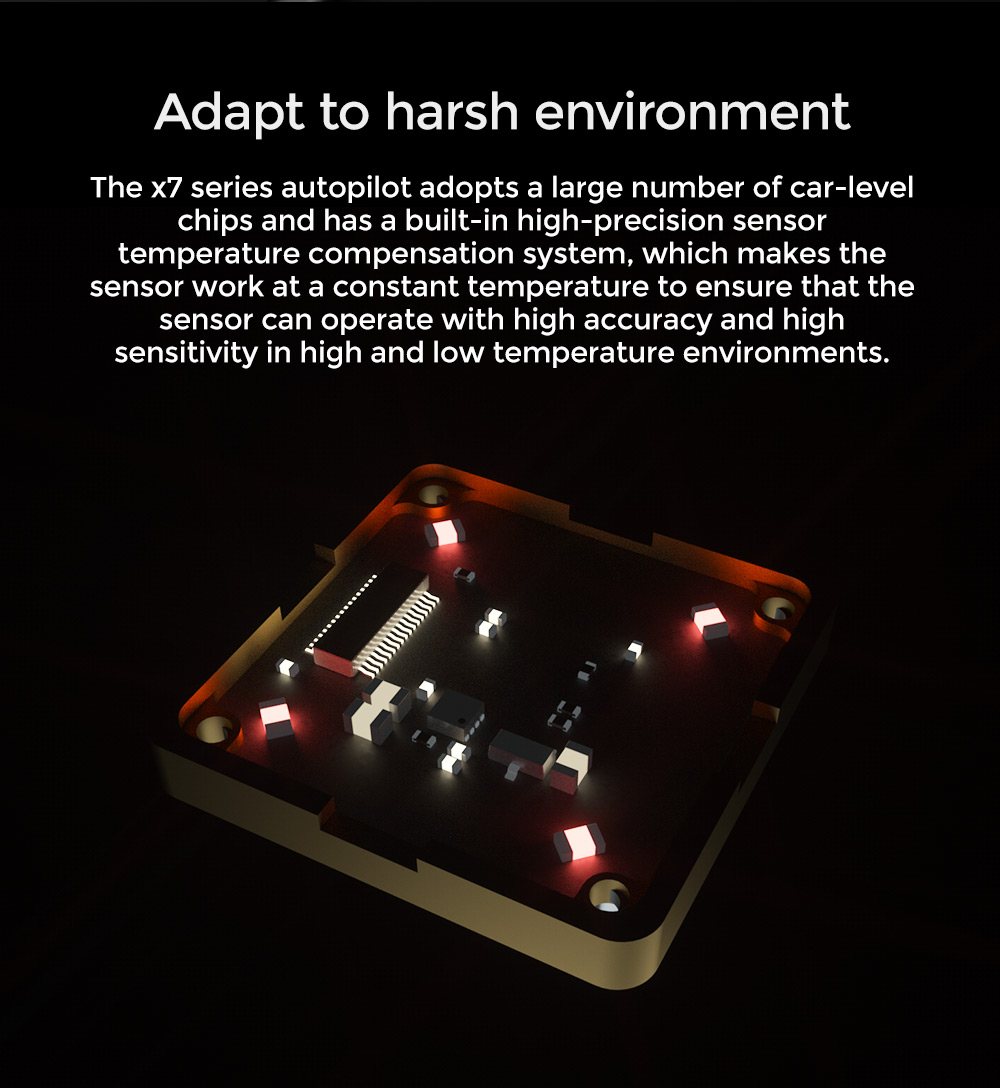

  • Environmental Adaptability: Designed to function optimally in both high and low-temperature environments, thanks to its high-precision sensor temperature compensation system.
  • Dual Firmware Compatibility: Supports both PX4 (currently being adapted) and ArduPilot open-source platform firmware.

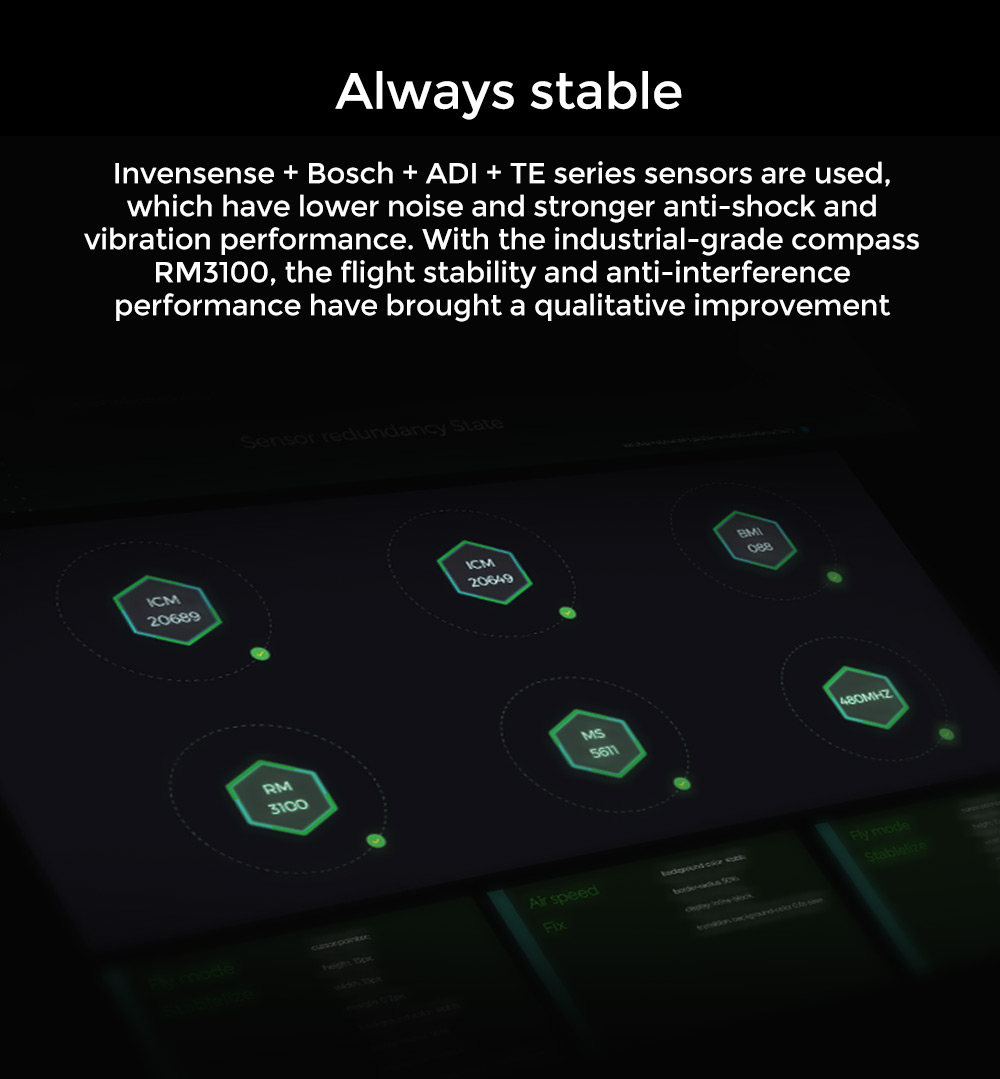

  • Enhanced Stability: Uses a combination of Invensense, Bosch, ADI, and TE series sensors, paired with the RM3100 compass, ensuring unparalleled flight stability and anti-interference performance.
Category: Tags: , , , ,

Description

Experience the next level of drone navigation with the CUAV X7+ Pro Advanced Flight Autopilot System. Designed with precision and efficiency in mind, this controller is powered by the high-performance STM32H7 series processor, ensuring rapid response and reliable performance.

Key Features:

  • Superior Processing Power: Equipped with the STM32H7 series processor, operating at a frequency of 480Mhz, and boasting 1024K RAM and 2048K FLASH.
  • Advanced Sensor Integration: Features aerospace-grade ADI16470 accelerometer & gyroscope, RM3100 industrial-grade compass, and multiple other sensors ensuring accurate flight data.
  • Built-in Shock Absorption: Features CUAV’s patented shock absorption system, ensuring stability even in turbulent conditions.
  • Environmental Adaptability: Designed to function optimally in both high and low-temperature environments, thanks to its high-precision sensor temperature compensation system.
  • Dual Firmware Compatibility: Supports both PX4 (currently being adapted) and ArduPilot open-source platform firmware.
  • Enhanced Stability: Uses a combination of Invensense, Bosch, ADI, and TE series sensors, paired with the RM3100 compass, ensuring unparalleled flight stability and anti-interference performance.

Technical Details:

  • Dimensions: 77×45.5×39 mm
  • Weight: Not specified
  • Operating Temperature: Not specified

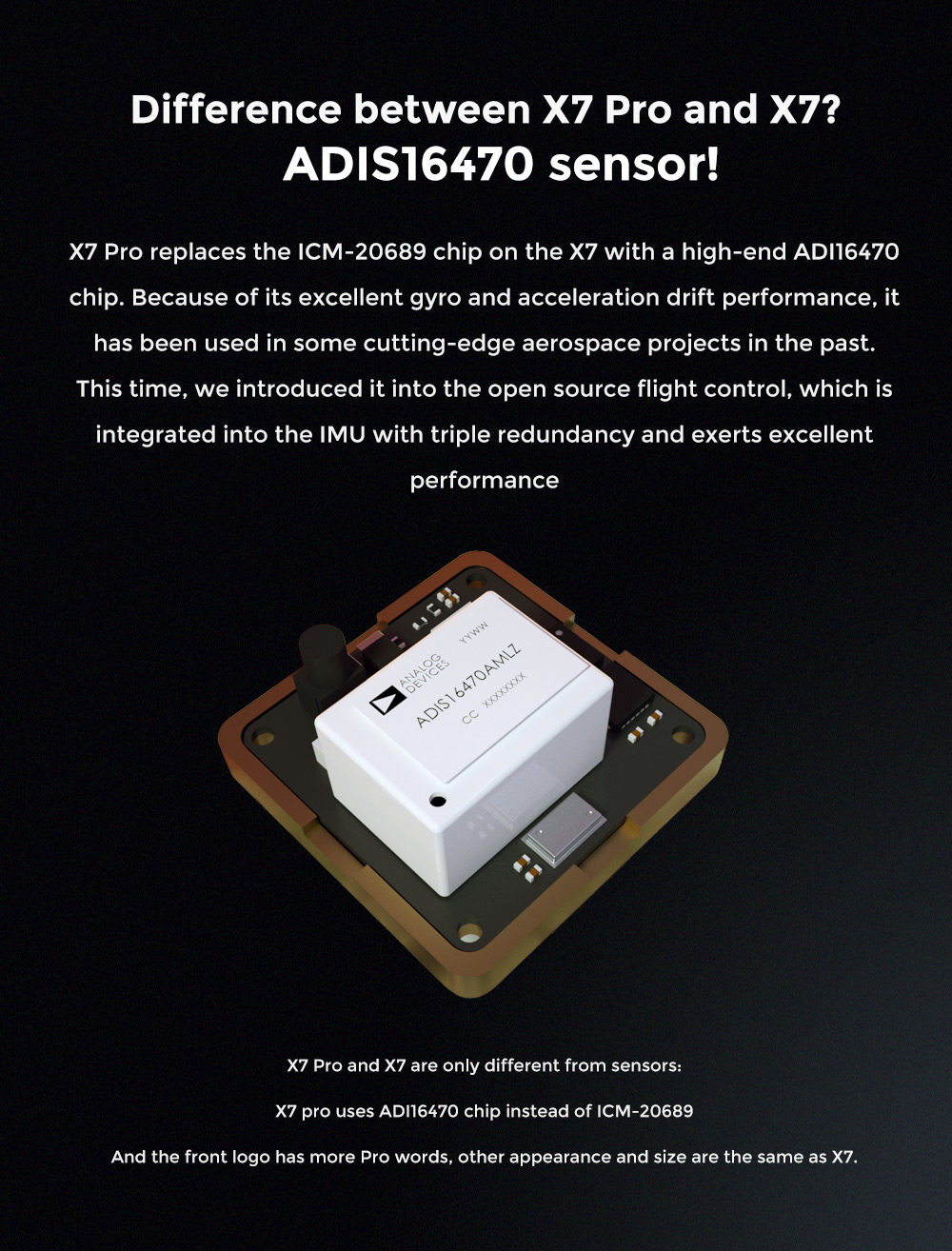

What Sets the X7+ Pro Apart? The X7+ Pro stands out by integrating the high-end ADI16470 chip, previously used in cutting-edge aerospace projects, into its IMU with triple redundancy. This ensures exceptional performance and reliability.

Features of CUAV X7 Series

  CUAV X7 CUAV X7 Plus CUAV X7 Pro CUAV X7 Plus Pro
Processor STM32H743
Sensors BMI088 ICM42688-P ADIS16470 ADIS16470
ICM20689 ICM20689 BMI088 ICM42688-P
ICM20649 ICM20689 ICM20649 ICM20689
MS5611*2 BAROs
RM3100 Compass
PWM outputs 14 14 14 14
Bidi DShot outputs 6(M9~M14) 12(M1~M12 ) 6(M9~M14) 12(M1~M12 )
Servo voltage monitor NO YES(9.9V max) NO YES(9.9V max)
Operating Voltage 4.3~5.4V （USB:4.75~5.25V)

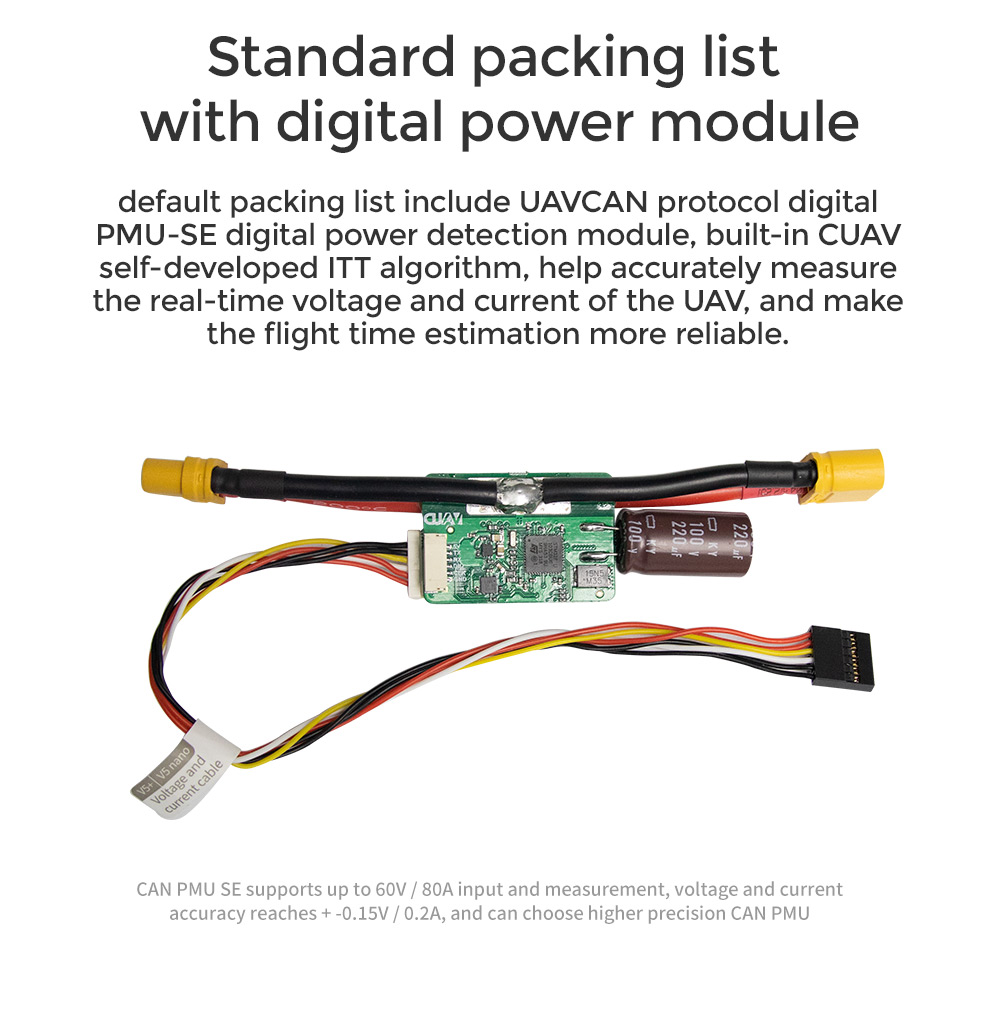

Power monitor 2(1 analog power monitor, 1 DroneCan power monitor)

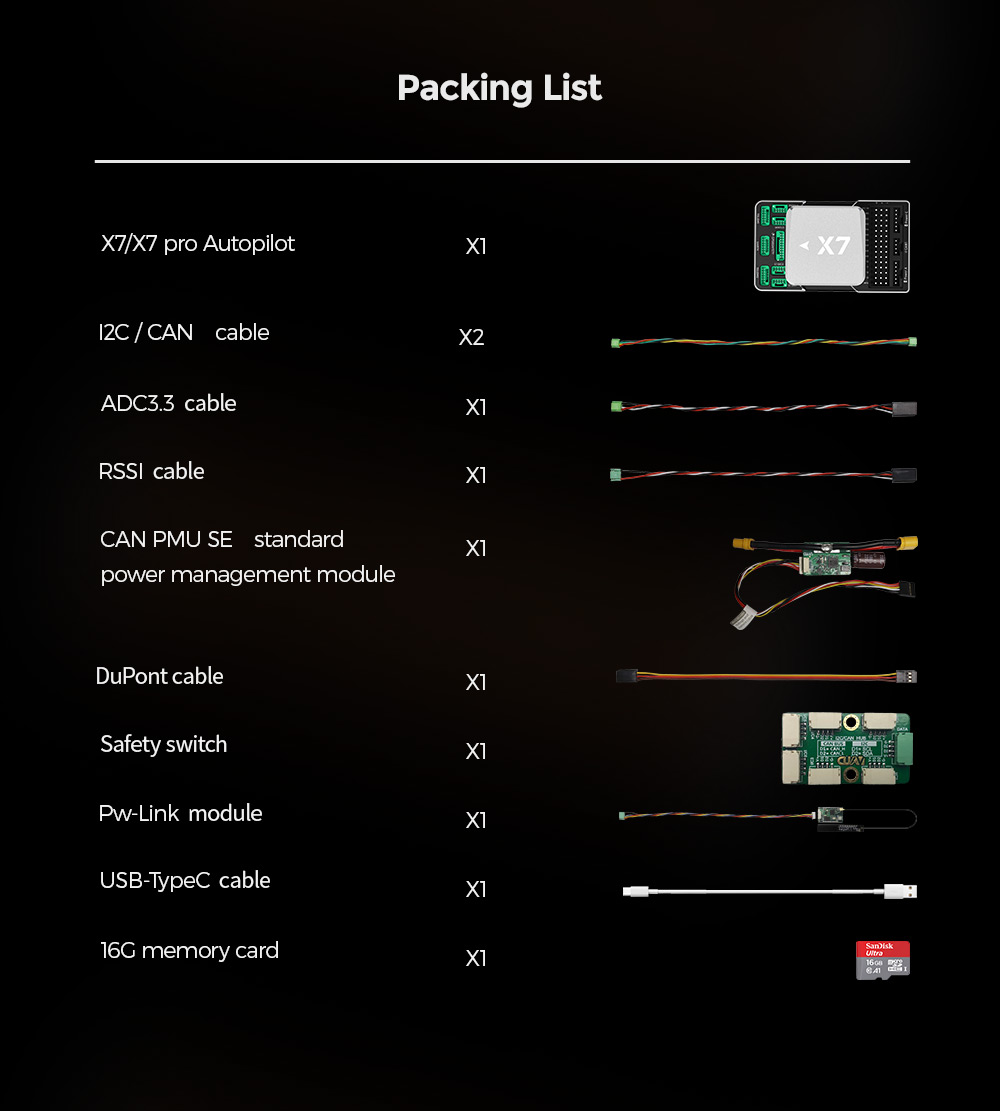

Package Contents:

  • CUAV X7+ Pro Advanced Flight Autopilot System
  • Assorted cables and connectors for seamless integration.
