A10TR 10x Triple Sensor AI Tracking Camera with 1500m Laser Rangefinder

Description

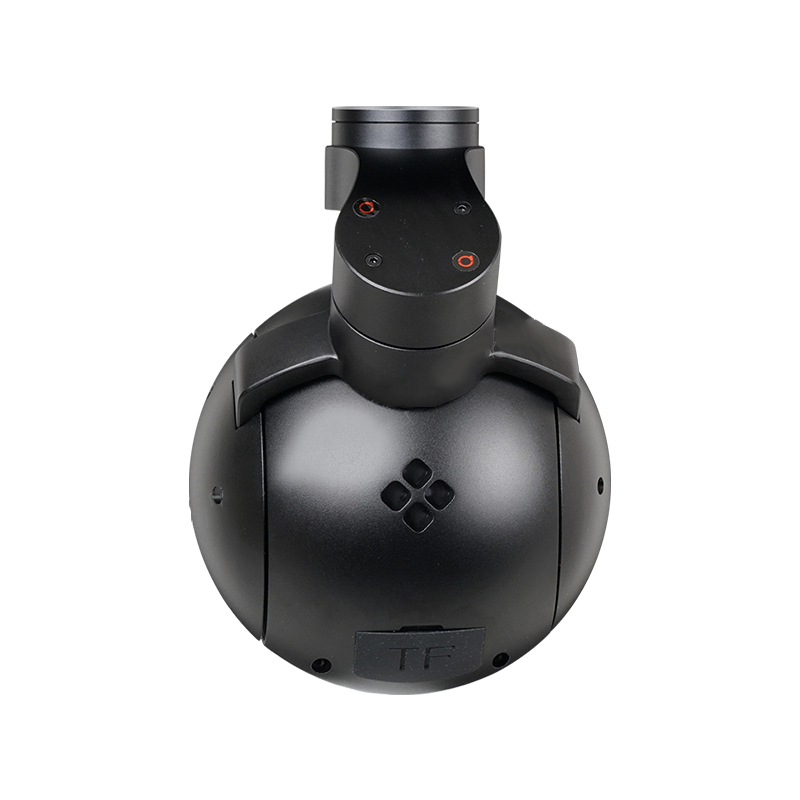

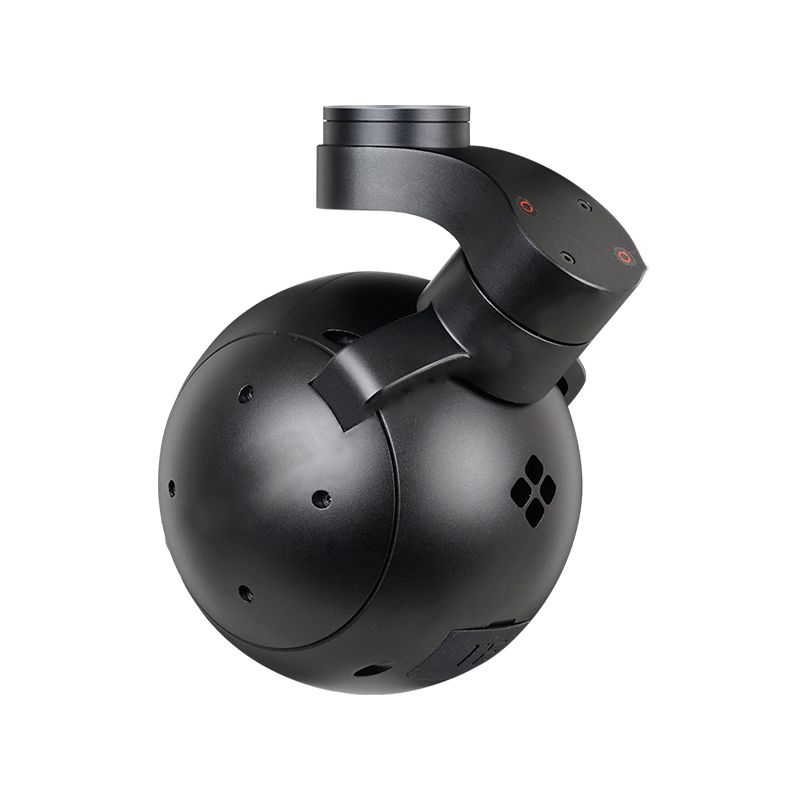

The A10TR 10x Triple Sensor AI Tracking Camera with 1500m Laser Rangefinder is a meticulously designed 3-axis gimbal triple-sensor camera that boasts a lightweight of 795g and a compact size. It seamlessly integrates a 10x optical zoom camera, a 19mm lens 640*512 thermal camera, and a laser rangefinder with a range of up to 1500 meters.

One of its standout features is the AI object identification and tracking module, which is capable of automatically recognizing and tracking vehicles and humans. This makes it an invaluable tool for a variety of applications, including surveillance, evidence collection, powerline inspection, disaster prevention, emergency monitoring and inspection, law enforcement, and search and rescue operations.

Specifications



Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S
Output voltage	5V (connect with PWM)
Dynamic current	580mA~1900mA @ 16V
Working environment temp.	-20℃ ~ +60℃

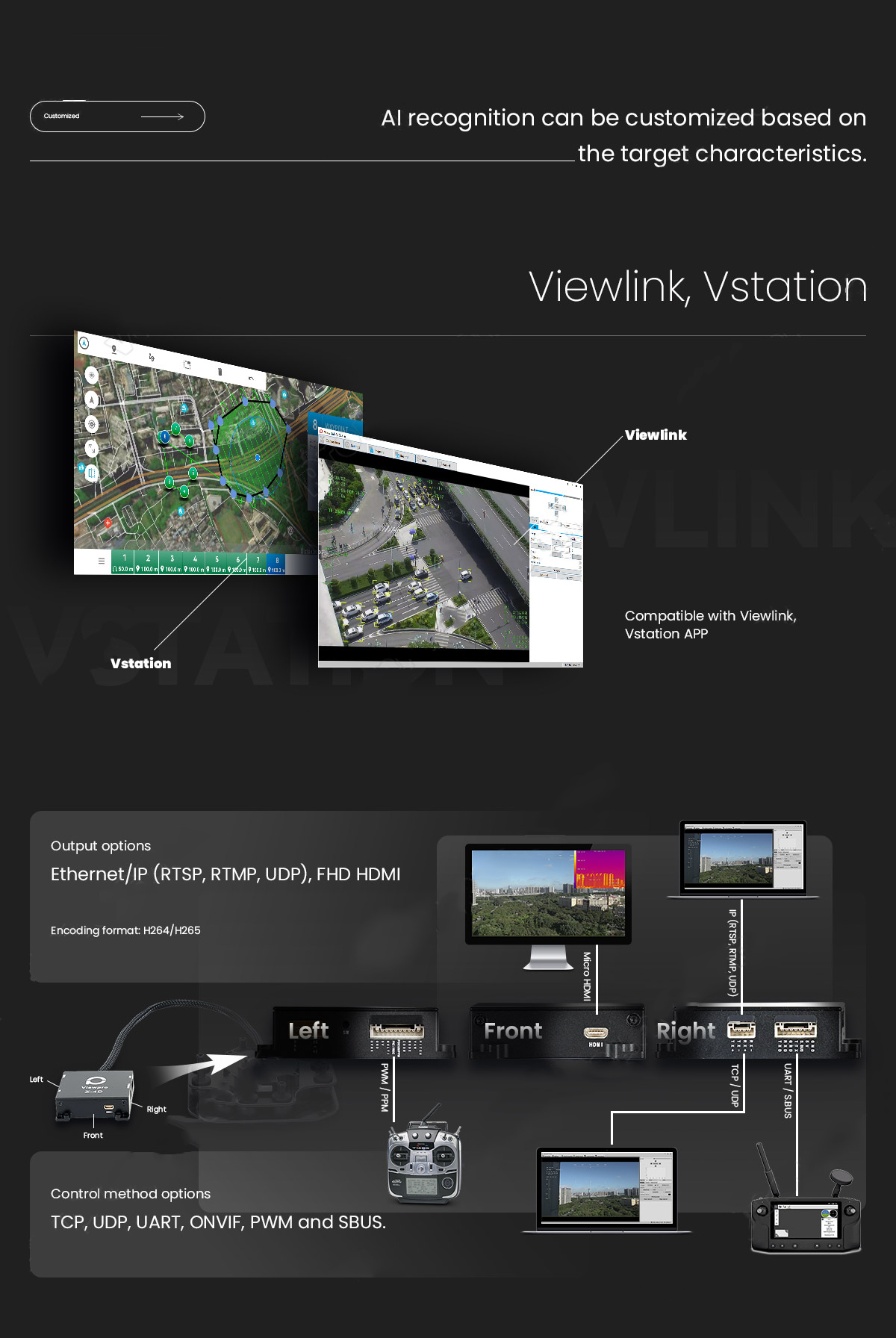

Output	micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps)
Local-storage	TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format	JPG(1920*1080)
Video storage format	MP4  (1080P 30fps)

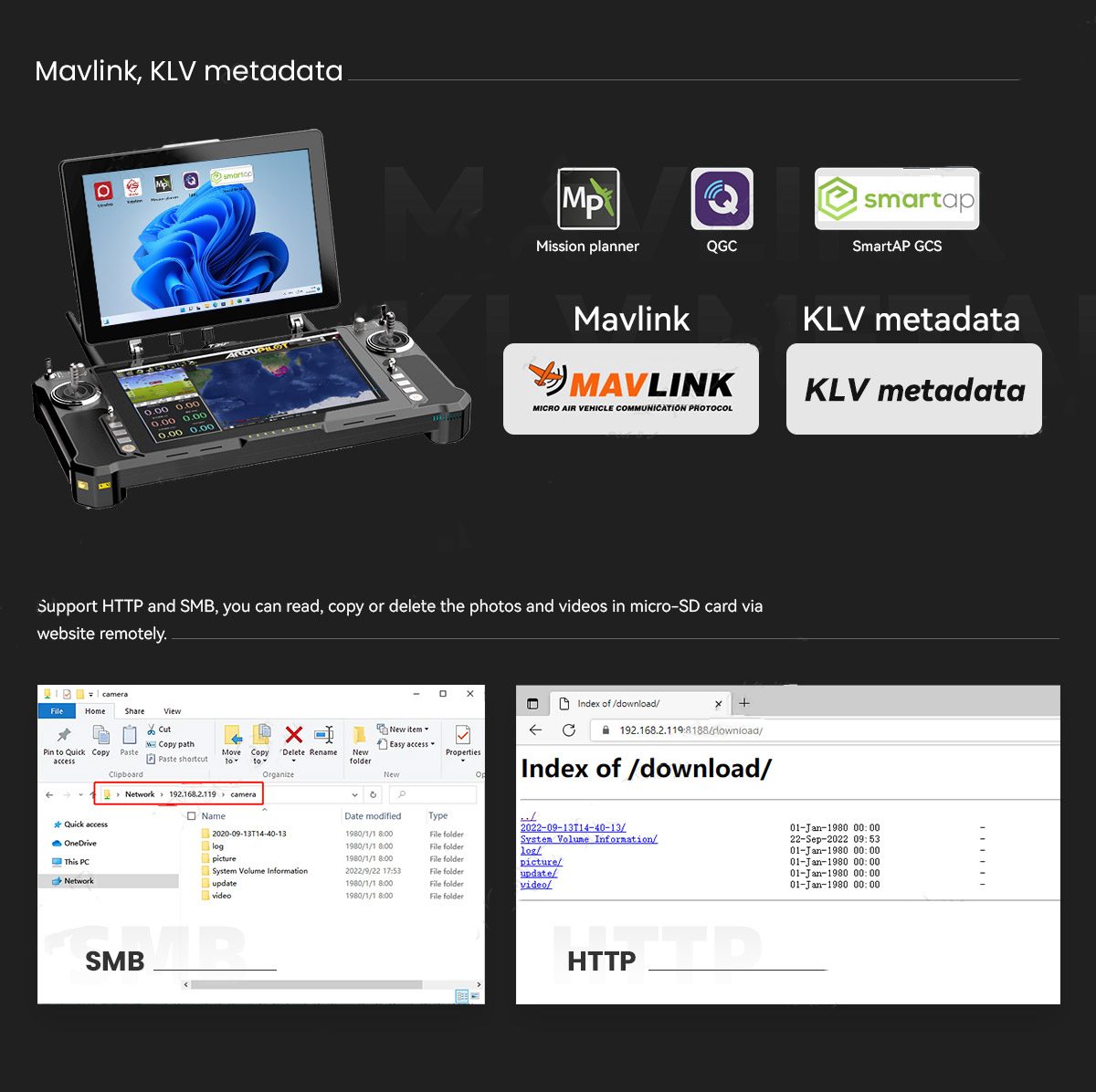

Card reading online	HTTP read pictures
Control method	PWM  / TTL / S.BUS / TCP(IP output)/UDP(IP output version)
Geotagging	Support, display time and GPS coordinate in picture exif

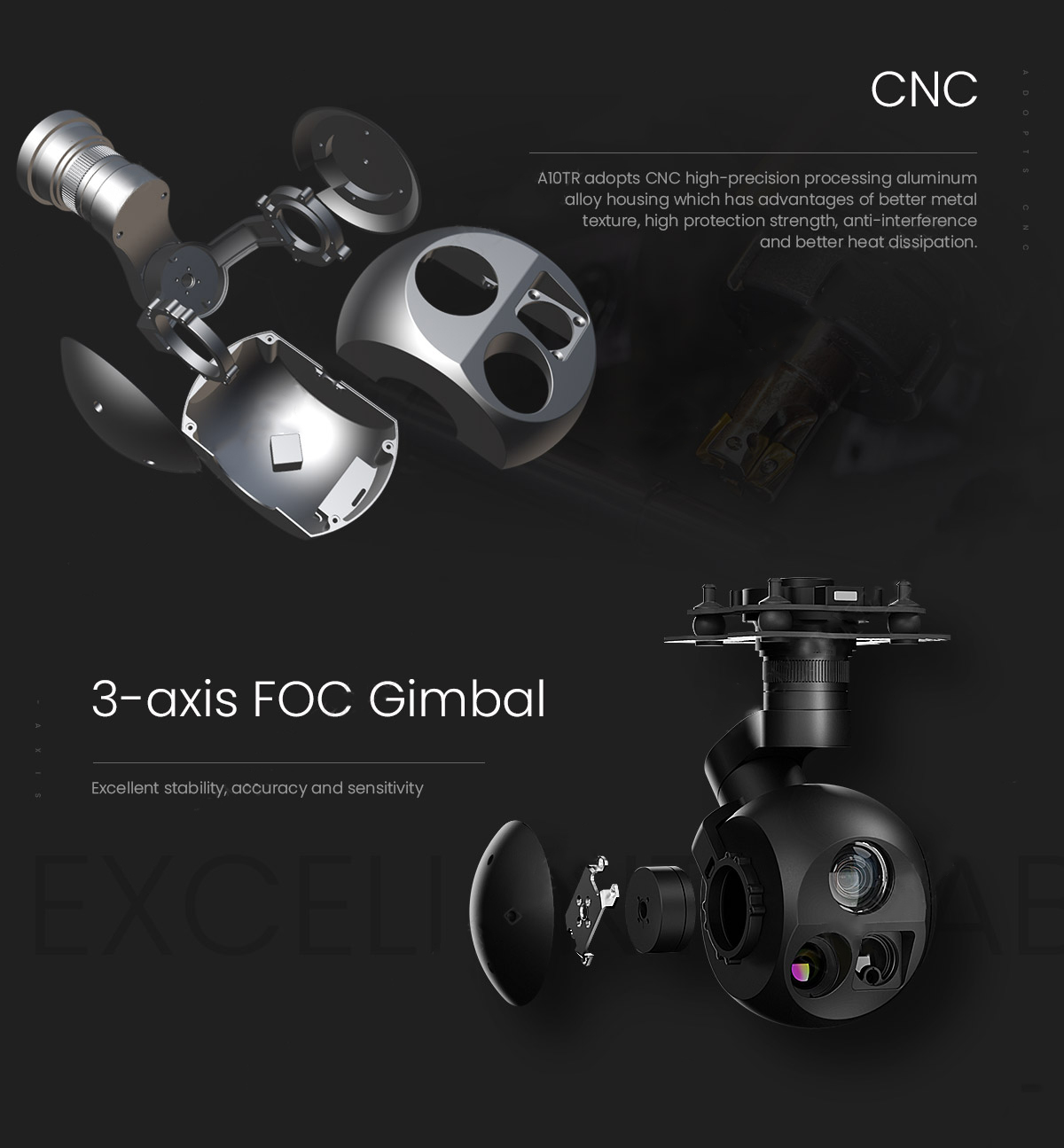

Gimbal Spec
Mechanical Range	Pitch/Tilt: -50°～140°,      Roll: ±40°,    Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～135°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center	√
EO Camera Spec
Imager Sensor	1/3″ Panasonic CMOS Sensor
Total pixel	2.48M
Picture quality	Full HD 1080 (1920*1080)
Optical zoom	10x, f = 5.1mm ~ 51mm
Digital zoom	32x
Angle of View (D, H, V)	D:  68°(Wide end) ~ 6.7° (Tele end)
	H: 54°(wide end) ~ 4.9°(tele end)
	V: 31°(wide end) ~ 4.0°(tele end)
Sync system	Progressive Scan
Sync. System Internal	Internal
S/N ratio	more than 50dB
Min illumination	Color : 0.5 lux , BW : 0.1lux Color DSS : 0.125 lux , BW DSS : 0.025 lux
		Gain Control (AGC)	Off / On
White balance	Auto / One Push / Manual / Indoor / Outdoor
Shutter speed	1/30(25) ~ 1/30,000 sec
Focus	Auto / One Push / Manual
Iris	0 ~ 20 steps
Exposure	Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog	Yes
IR Thermal Imager Spec
Focus Length	19mm
Coating Film	DLC
Horizontal FOV	22.9°
Vertical FOV	18.4°
Diagonal FOV	29.0°
Detective Distance (Man: 1.8×0.5m)	792 meters
Recognize Distance (Man: 1.8×0.5m)	198 meters
Verified Distance (Man: 1.8×0.5m)	99 meters
Detective Distance (Car: 4.2×1.8m)	2428 meters
Recognize Distance (Car: 4.2×1.8m)	607 meters
Verified Distance (Car: 4.2×1.8m)	303 meters
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	640*512
Pixel pitch	12μm
Focusing method	Athermal prime lens
NETD	≤50mK@F.0 @25℃
Color palette	White, iron red, pseudo color
Digital zoom	1x ~ 8x
Sync correct time	Yes
IR Camera Object Tracking
Update rate of deviation pixel	30Hz
Output delay of deviation pixel	<30ms
Minimum object contrast	5%
SNR	4
Minimum object size	16*16 pixel
Maximum object size	256*256 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames
IR Laser Rangefinder
Range	5~1500 meters
Resolution	1:<400±1      2:＞400±0.4%
Light Beam	905nm pulse laser
Divergent Angle	3~10 mrad
Measuring Respond Time	1:<0.06s/m(≤100)  2:<0.28s/m(≥100~600)   3:<0.85s/m(≥600~1000)   4:<1s/m(≥1000~1500)
Power	0.5~0.9W
Location Resolving	Latitude and longitude of target
Ranefinder	Target distance measuring
AI Performance
Targets type	Car and human
Simultaneous detection quantity	≥ 10 targets
Min contrast ratio	5%
Min target size	5×5 pixel
Car detection rate	≥85%
False alarm rate	≤10%
Packing Information
N.W.	795g (Viewport version)

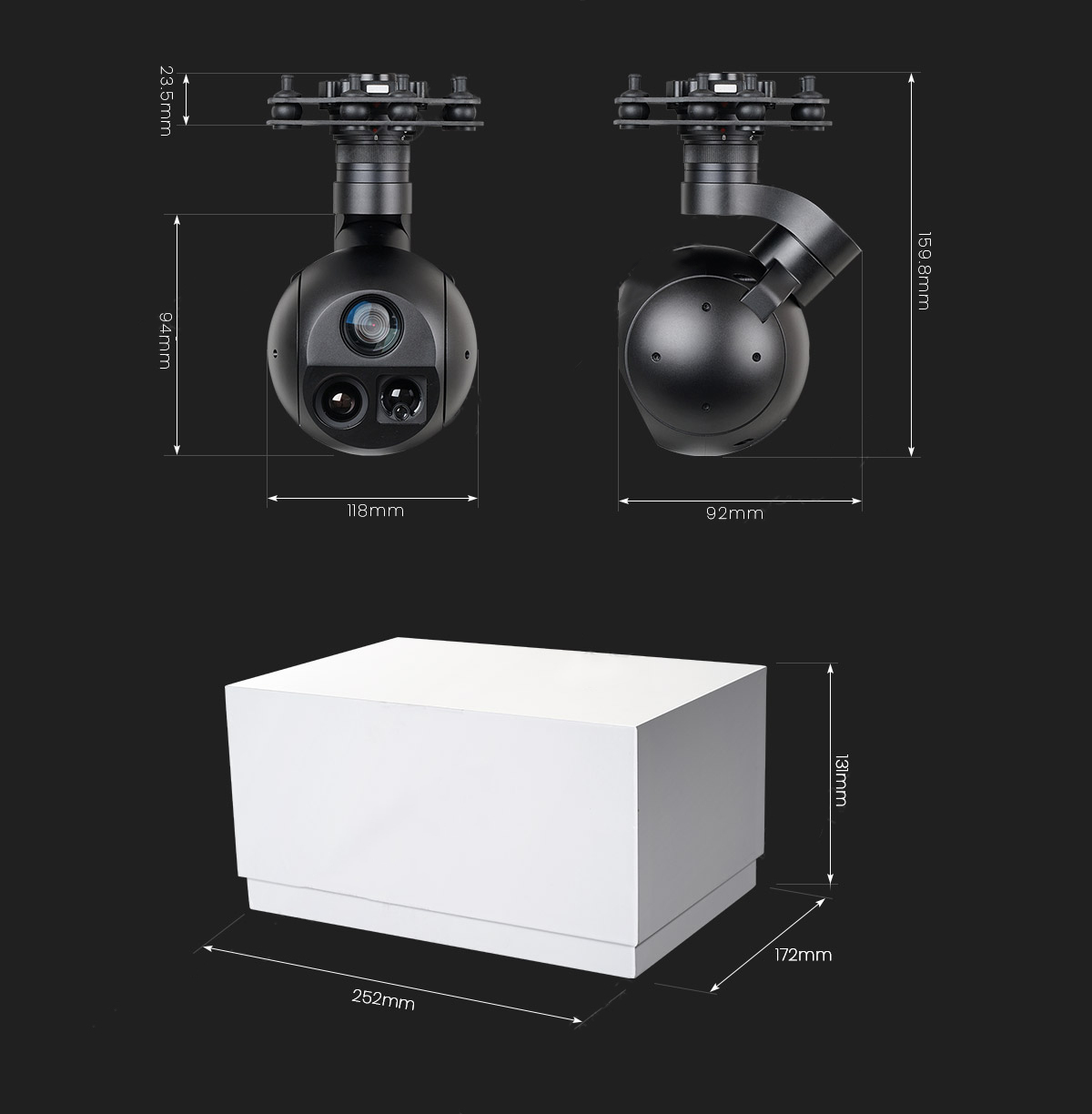

Product meas.	114.7*100*178.1mm (Standard version) /114.7*100*183.8mm (Viewport version)

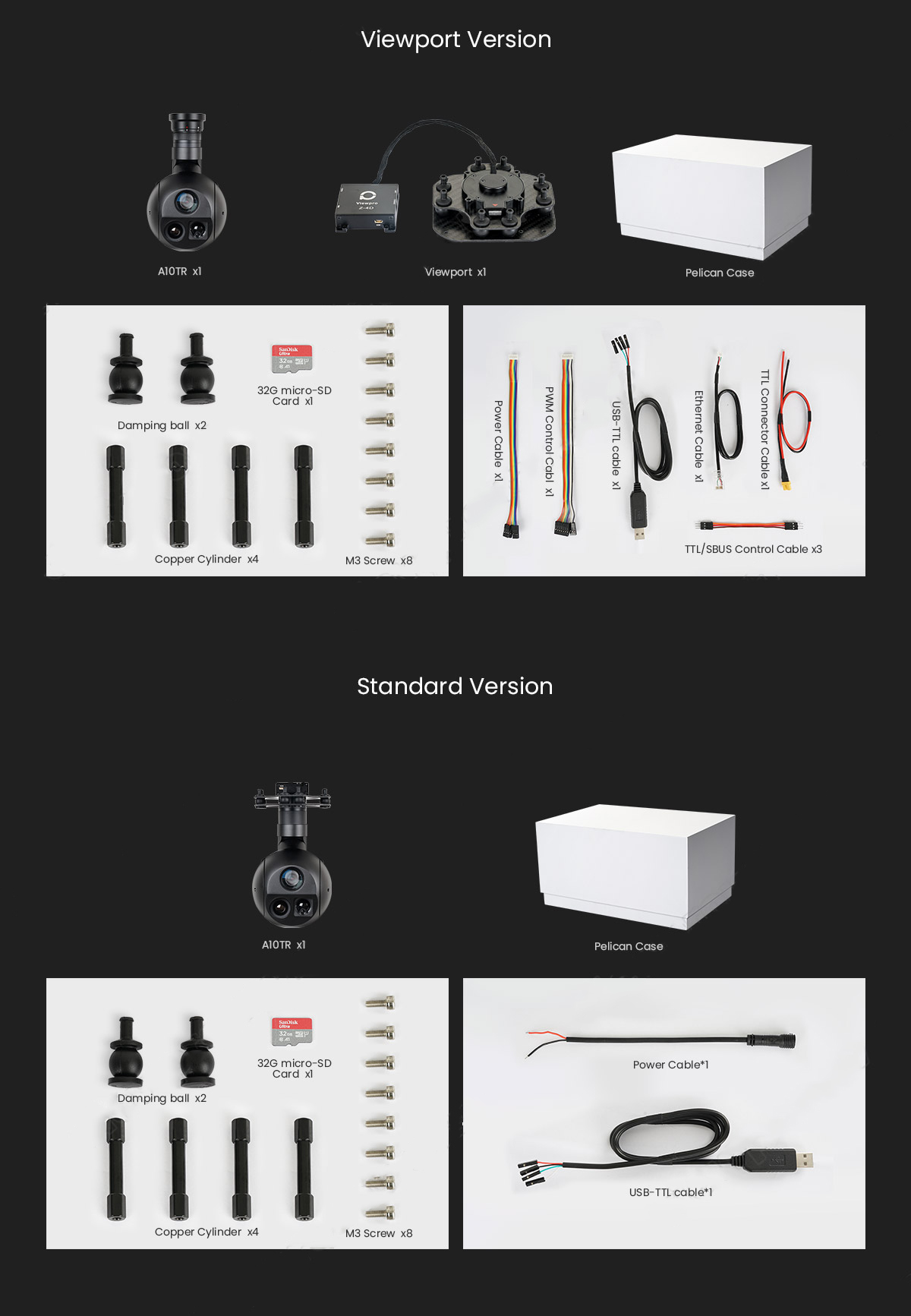

Accessories	1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W.	2194g
Package meas.	350*300*250mm
