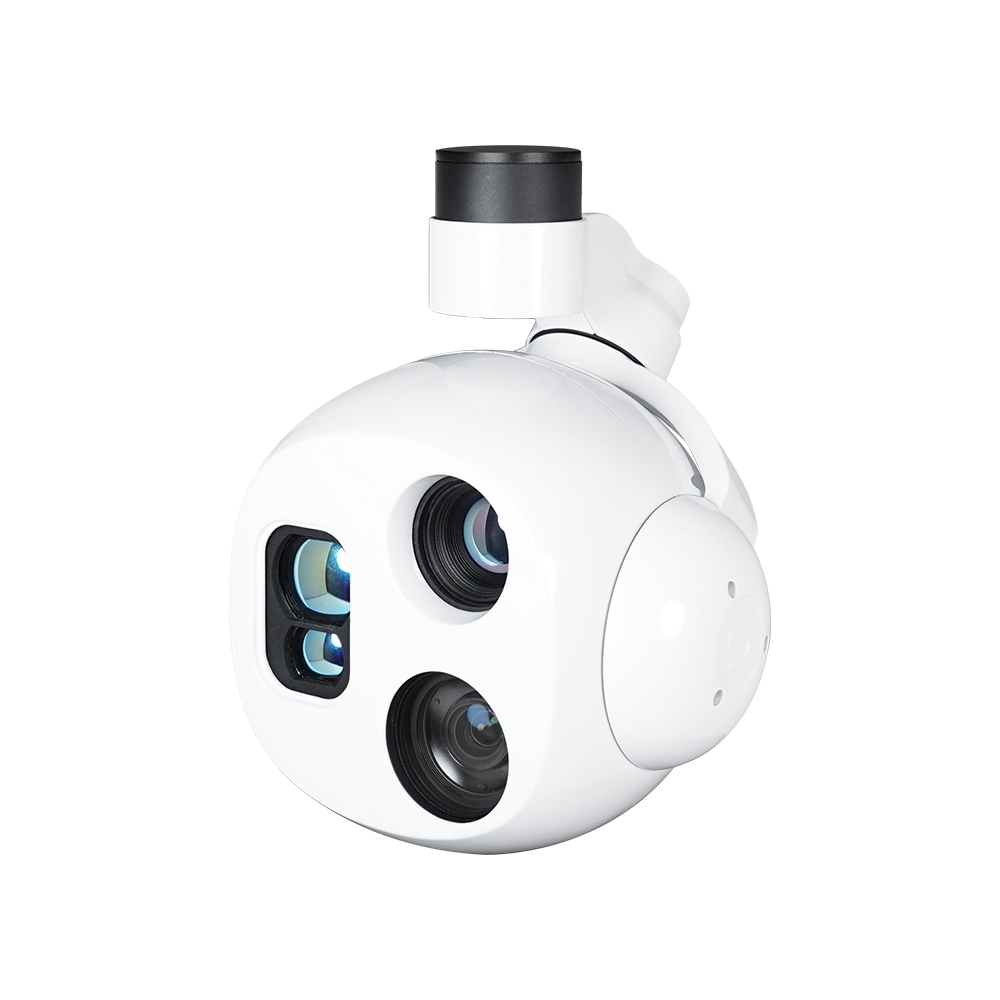

Q30TIRM 30x Zoom Object GPS Coordinate Resolving and LRF Gimbal Camera

$17,749.00

The Q30TIRM gimbal camera seamlessly integrates a 30x optical zoom SONY camera, a 640×480 thermal camera, and a laser rangefinder. Designed for precision and performance, this camera is ideal for a range of applications requiring detailed imaging and distance measurements.

Key Features:

  • High-Precision 3-axis Gimbal: Built on FOC technology, the gimbal offers unparalleled stability, accuracy, and sensitivity, ensuring clear and steady images even in challenging conditions.
  • 30x Optical Zoom: Equipped with a SONY camera, it provides detailed zoom capabilities without compromising on image quality.
  • Thermal Imaging: The 640×480 thermal camera is perfect for night-time or low-light scenarios, offering clear thermal images.
  • Laser Rangefinder: Accurately measure distances with the integrated laser rangefinder, making it a versatile tool for various tasks.
Category: Tags: , , , , , , ,

Description

The Q30TIRM gimbal camera seamlessly integrates a 30x optical zoom SONY camera, a 640×480 thermal camera, and a laser rangefinder. Designed for precision and performance, this camera is ideal for a range of applications requiring detailed imaging and distance measurements.

The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 25mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 1500 meters, this information will display on screen automatically.

SONY 30x Zoom Starlight Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination,

Q30TIRM can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.



IR+EO Dual Sensors Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 192pixel/frame,object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.



GPS Location Resolving

The advanced location calculating algorithm is used to calculate the distance of the object within 1500 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military and police.




Multi Output Methods Optional

Q30TIRM pro supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360 degree enless pan.

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Control box signal interfaces:

Compatible with Viewport

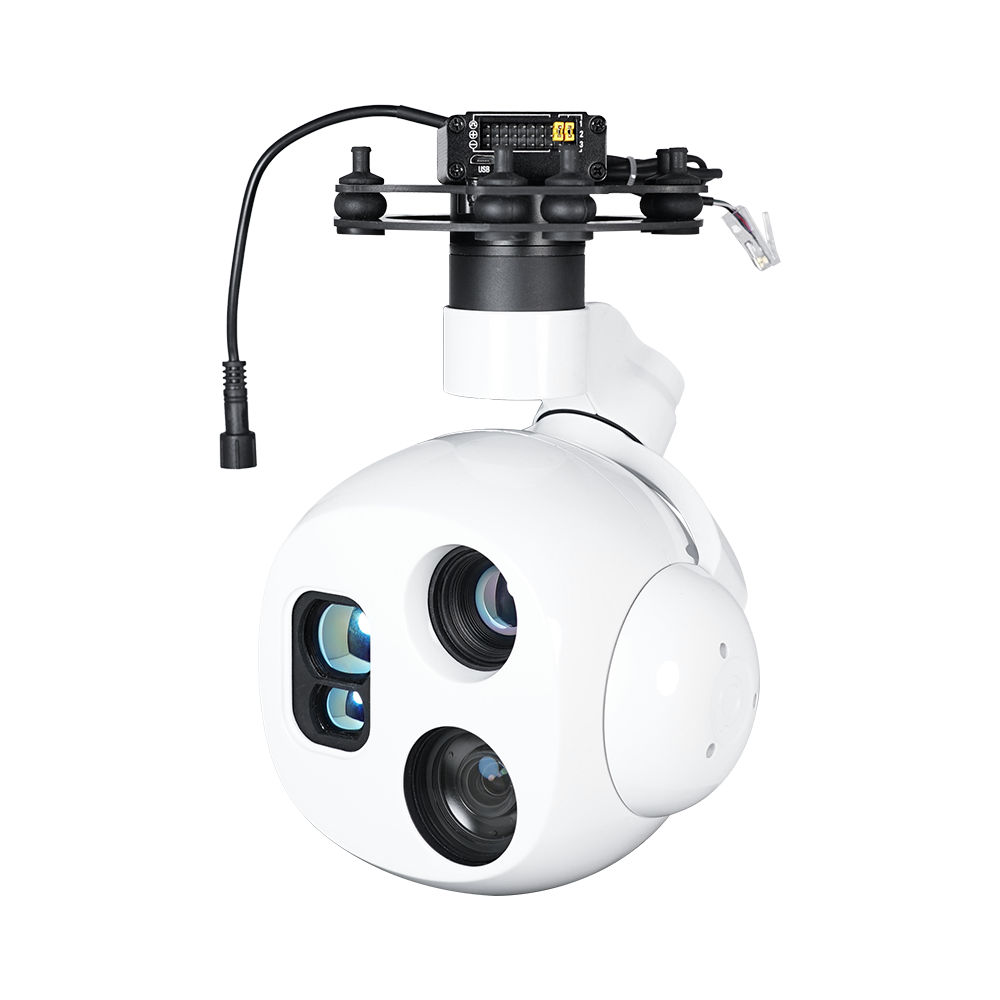

Q30TIRM pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Applications

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.



Specification

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 600~2000mA @ 16V
Working environment temp. -20℃ ~ +60℃
Output  micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p  25fps/30fps) / SDI (1080P 30fps)
Local-storage TF card  (Up to 512G,class 10, FAT32 format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)
Card reading online SMB read / HTTP read
Control method PWM  / TTL / S.BUS / TCP(IP output)
Geotagging Support, display time and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range Pitch/Tilt: -50°～140°,    Roll: ±75°,    Yaw/Pan: ±300° / ±360°*N (IP / SDI output version)
Controllable Range Pitch/Tilt: -45°～125°,   Yaw/Pan: ±290° / ±360°*N (IP / SDI output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center √
Camera spec
Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color 0.01lux@F1.6
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
IR Thermal Imager Spec
Focus Length 35mm
Horizontal FOV 17.7°
Vertical FOV 13.3°
Diagonal FOV 22.0°
Detective Distance (Man: 1.8×0.5m) 1029 meters
Recognize Distance (Man: 1.8×0.5m) 257 meters
Verified Distance (Man: 1.8×0.5m) 129 meters
Detective Distance (Car: 4.2×1.8m) 3157 meters
Recognize Distance (Car: 4.2×1.8m) 789 meters
Verified Distance (Car: 4.2×1.8m) 395 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel pitch 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~120℃ (For thermometry version only)
IR Laser Rangefinder
Range 5~1500 meters
Resolution 0.5m
Light Beam 905nm pulse laser
Divergent Angle 3 mrad
Laser pulse frequency 1HZ
Ranging mode Pulse
Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring
EO / IR Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Packing Information
N.W. 1225g /1320g (Viewport version)
Product meas. 156*140.5*222.2mm / 156*140.5*227.9mm (Viewport version)
Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W. 3400g
Package meas. 360*300*250mm
