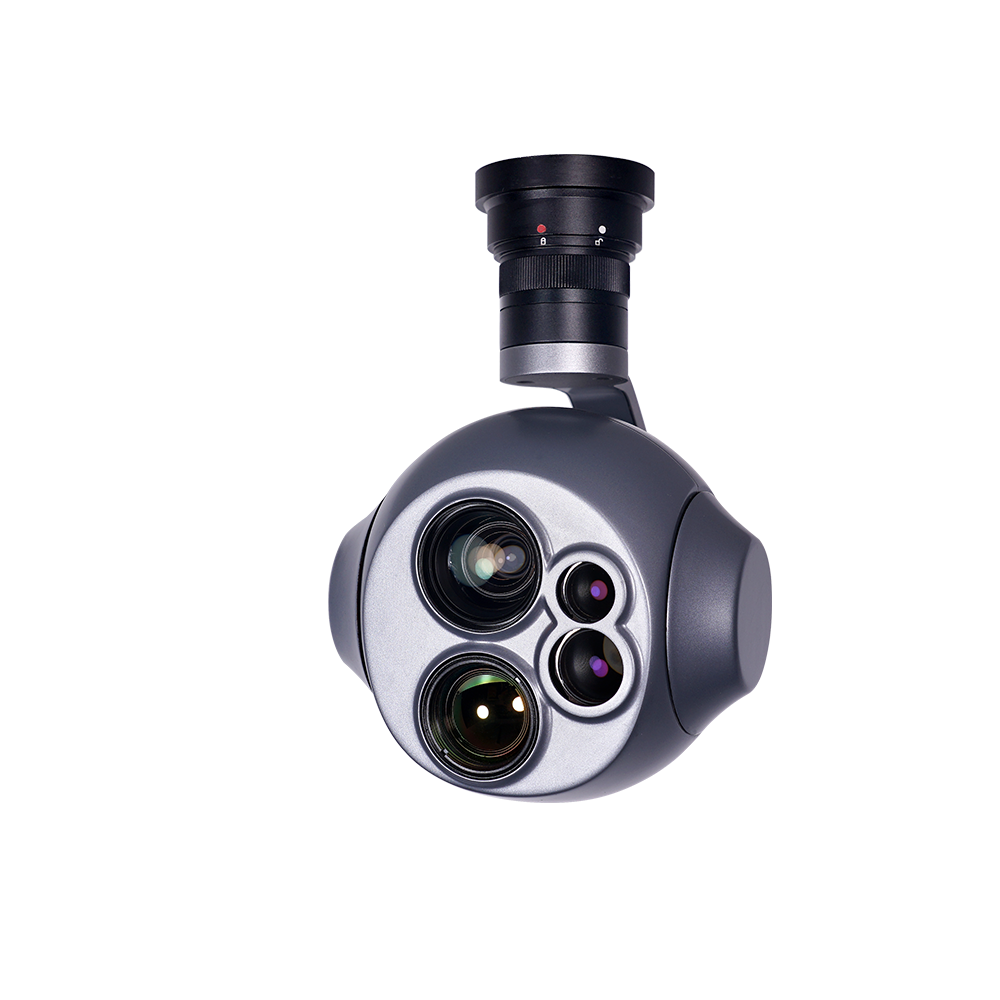

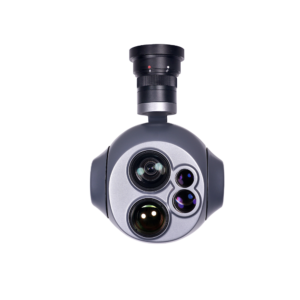

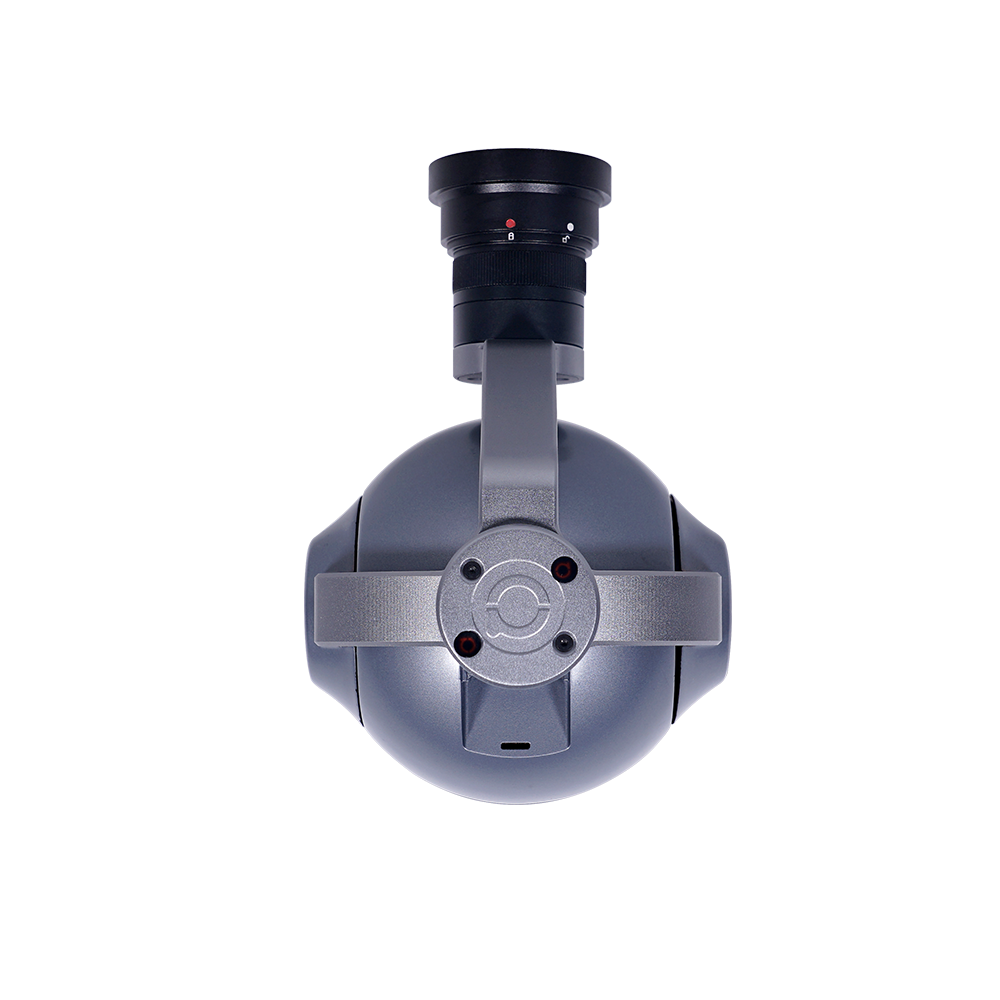

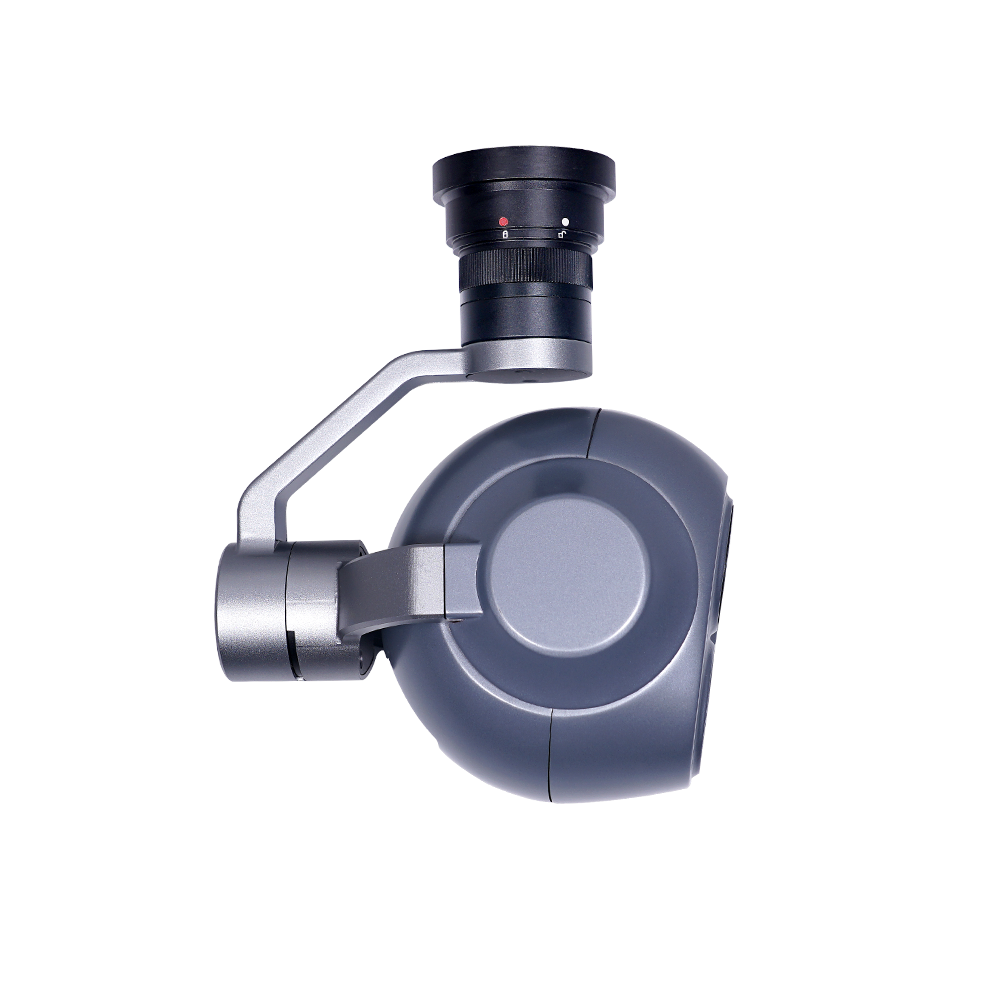

Q10TIRM Dual Sensor 10x Optical Zoom EO/IR Object Tracking Laser Rangefinder Gimbal Camera

Description

Professional 3-axis High-precise FOC Program

Stabilizing the Q10TIRM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor.  Q10TIRM uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

10x Optical Zoom Camera

Stabilizing the Q10TIRM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

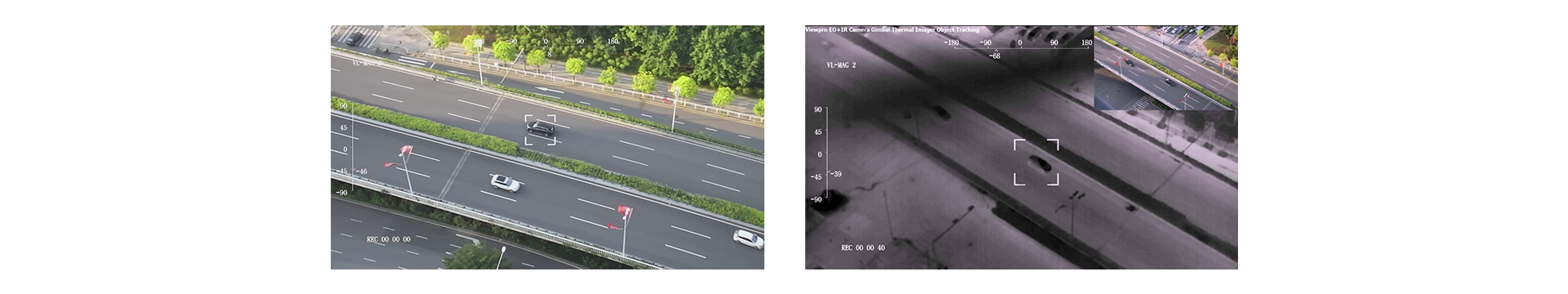

IR+EO Dual Sensors Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

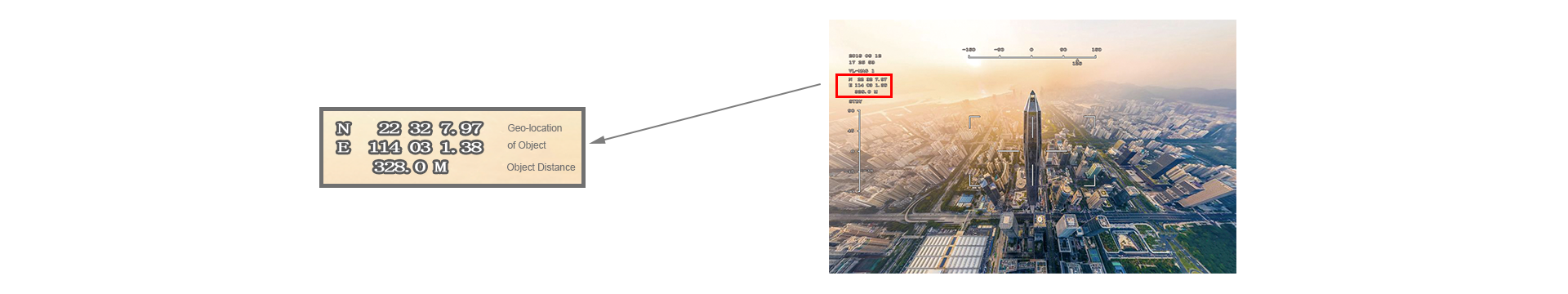

GPS Location Resolving

The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military and police.

Multi Output Methods Optional

Q10TIRM pro supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable.

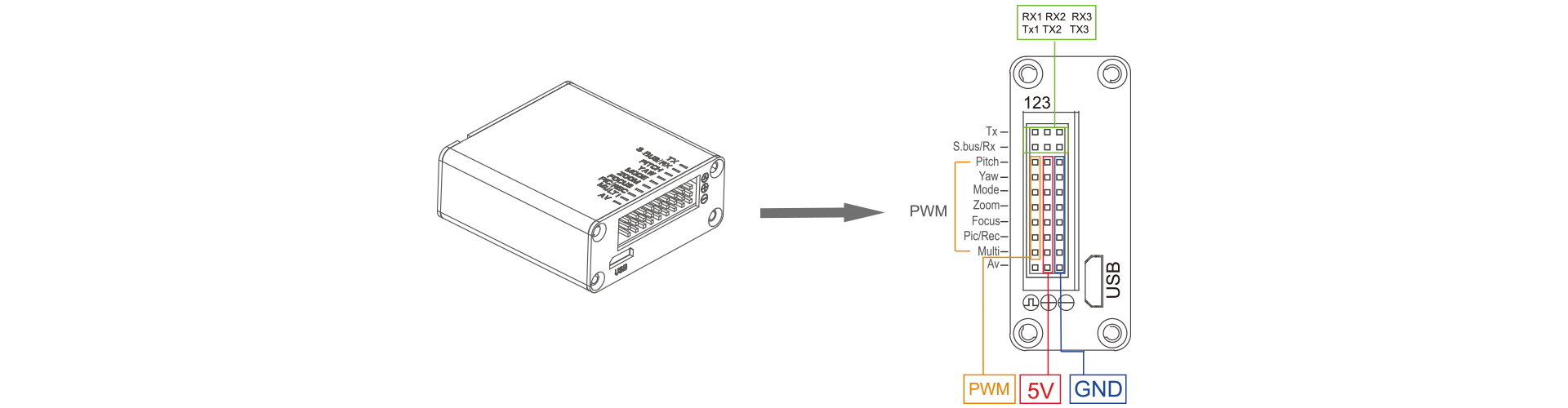

Control box signal interfaces:

Compatible with Viewport

Q30TIRM pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.



Applications

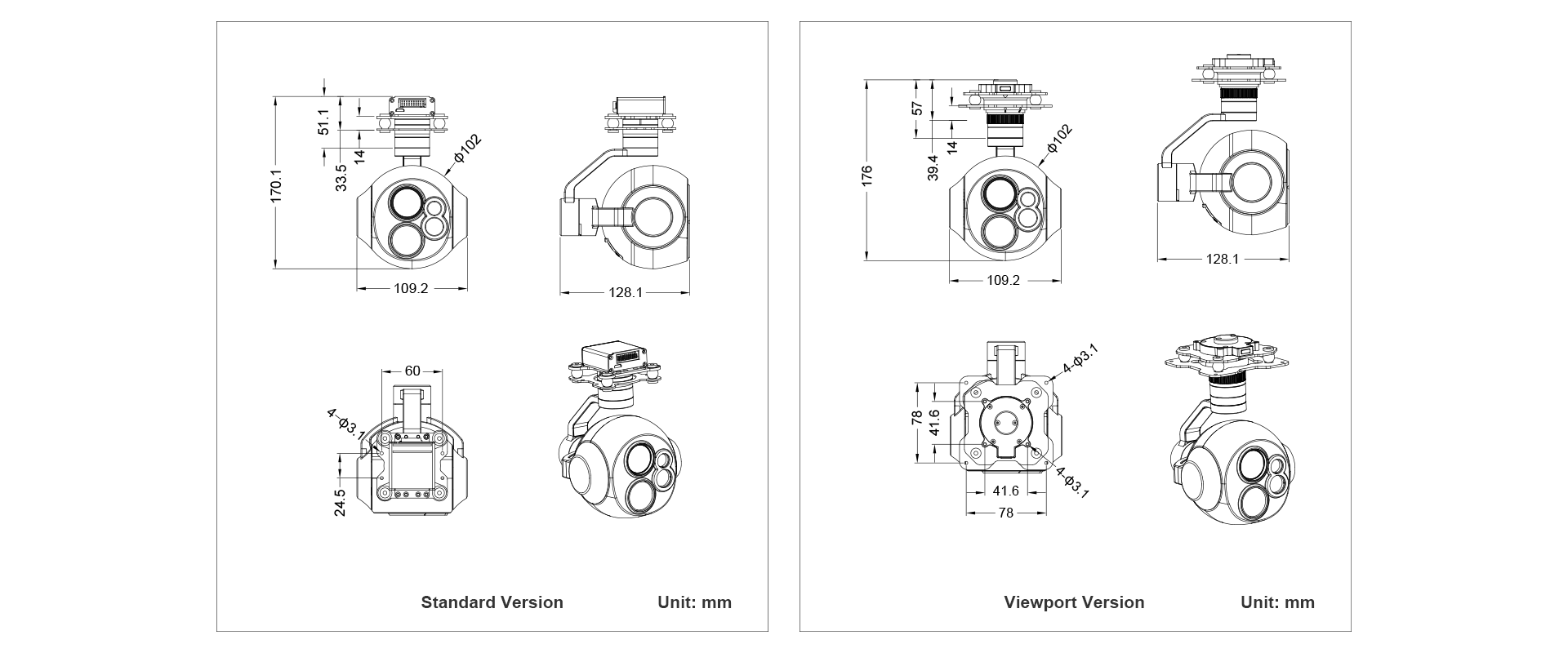

Dimensions

 Specifications

Hardware Parameter
Working voltage	12V
Input voltage	3S ~ 6S
Dynamic current	1100mA @ 12V
Idle current	950mA @ 12V
Power consumption	≤ 6.6W
Working environment temp.	-20℃ ~ +60℃
Output	micro HDMI(1080P 60fps) / IP (720p)
Local-storage	SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method	PWM/S.BUS/TTL/TCP( IP output)
Gimbal Spec
Angle range of structure design	Pitch/Tilt: -50°～105°,      Roll: ±60°,    Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle range of software design	Pitch/Tilt: -45°～90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Yaw/Pan	±170° / ±360°*N (IP/SDI/Skyport Output)
Vibration angle	Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center	√
Camera Spec
Imager Sensor	1/3″ Panasonic CMOS Sensor
Picture quality	Full HD 1080 (1920*1080)
Effective pixel	2.48MP
Lens optical zoom	10x, F=5.1~51mm
Angle of View (D, H, V)	D:  68°(Wide end) ~ 6.7° (Tele end)
	H: 54°(wide end) ~ 4.9°(tele end)
	V: 31°(wide end) ~ 4.0°(tele end)
Photo storage format	JPG(1920*1080/1280*720)
Video storage format	MP4  (1080P/720P 25fps/30fps)
Sync system	Progressive scanning
S/N ratio	more than 50dB
Min illumination	Color : 0.5 lux , BW : 0.1lux; Color DSS : 0.125 lux , BW DSS : 0.025 lux
Illumination range	100 lx ~100,000 lx
Gain Control (AGC)	Off / On
White balance	Auto / One Push / Manual / Indoor / Outdoor
Shutter speed	1/30(25) ~ 1/30,000 sec
Exposure	Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog	Yes
OSD	Yes
Camera Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	5ms
Minimum object contrast	5%
SNR	4
Minimum object size	32*32 pixel
Maximum object size	128*128pixel
Tracking speed	±32 pixel/frame
Object memory time	100 frames (4s)
The mean square root values of pulse noise in the object position	< 0.5 pixel
Thermal imager spec
Lens size	25mm
Horizontal FOV	24.6°
Vertical FOV	18.5°
Diagonal FOV	30.4°
Detective Distance (Man: 1.8×0.5m)	735 meters
Recognize Distance (Man: 1.8×0.5m)	184 meters
Verified Distance (Man: 1.8×0.5m)	92 meters
Detective Distance (Car: 4.2×1.8m)	2255 meters
Recognize Distance (Car: 4.2×1.8m)	564 meters
Verified Distance (Car: 4.2×1.8m)	282 meters
Working mode	Uncooled long wave (8μm~14μm) thermal imager
Detector pixel	640*480
Pixel size	17μm
Focusing method	Athermal prime lens
Emissivity correction	0.01~1
NETD	≤60mK (@25℃)
MRTD	≤650mK (@characteristic frequency)
Image enhancement	Auto adjust image brightness and contrast ratio
Color palette	Gray Scale, pseudo color, Iron Oxide Red, Rainbow, Color
Auto Non-uniform correction	Yes (no shutter)
Digital zoom	1x~4x
Sync correct time	Yes
Thermometry type	Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning	0℃~120℃(For thermometry version only)
Thermal Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	5ms
Minimum object size	32*32 pixel
Maximum object size	128*128 pixel
Tracking speed	±32 pixel/frame
Object memory time	100 frames (4s)
Laser Rangefinder
Range	3000 meters
Resolution	0.5m
Working current:	80mA （max）
Light Beam	905nm pulse laser
Divergent Angle	3 mrad
Laser pulse frequency	1HZ
Power	＜ 1 mW (safe for eye)
Ranging mode	Pulse
Location Resolving	Latitude and longitude of target
Ranefinder	Target distance measuring
Packing Information
N.W.	716g
Product meas.	260*180*280mm
