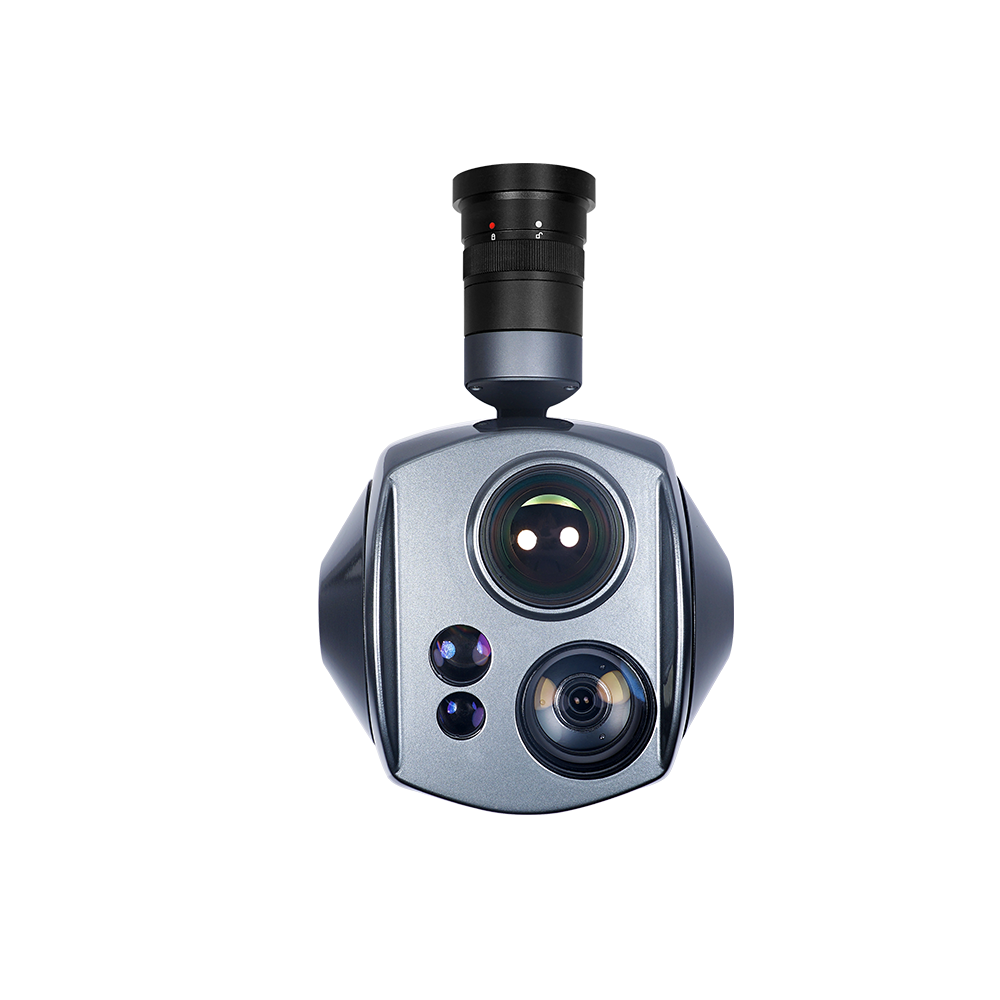

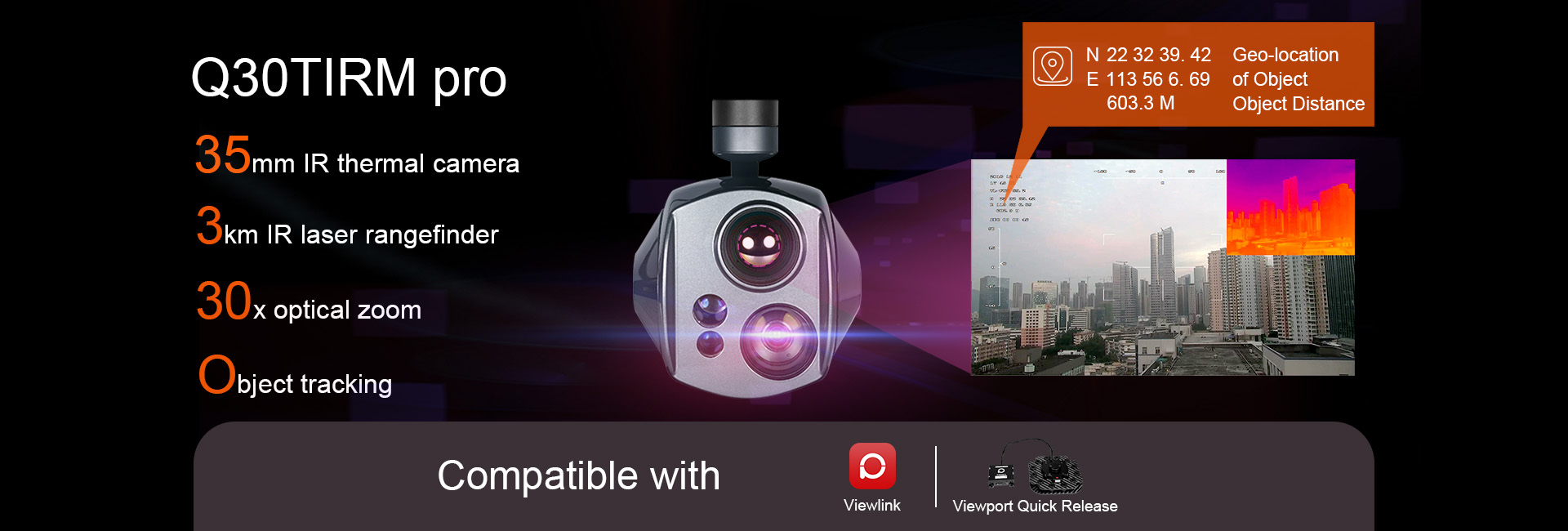

Q30TIRM Pro 3-Axis GPS Location Resolving & IR+EO Dual Sensors Object Tracking Gimbal

Description

Professional 3-axis High-precise FOC Program

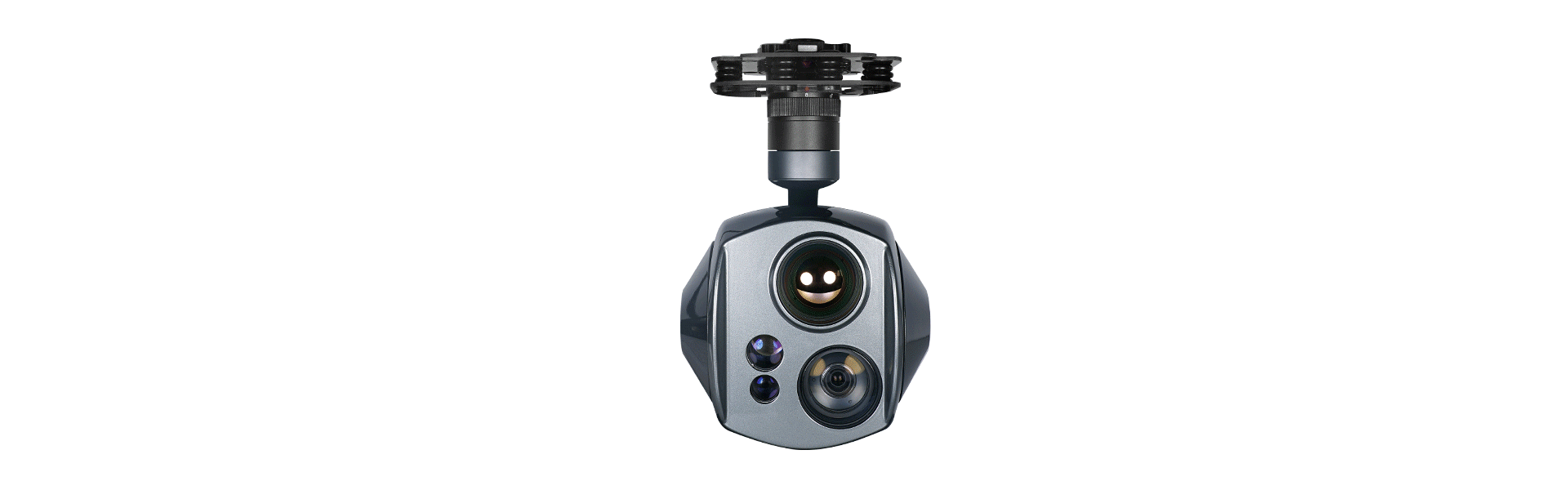

Q30TIRM pro is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera, a 640×480 thermal camera and a laser rangefinder. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 35mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, this information will display on screen automatically.

SONY 30x Zoom Starlight Camera

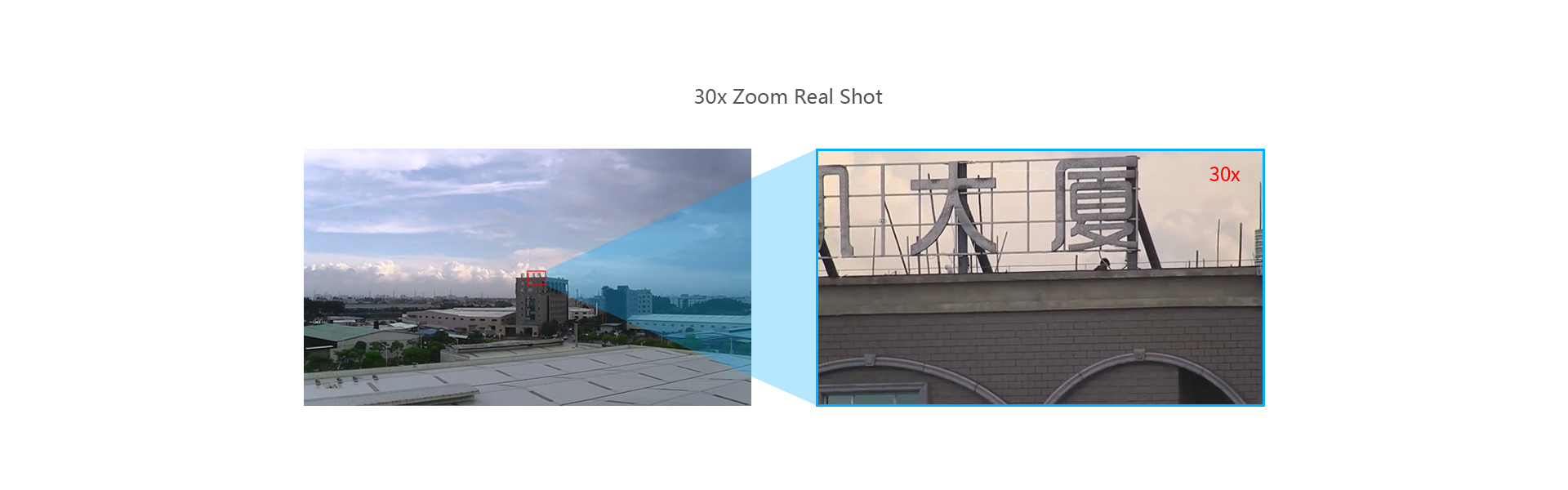

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30TIRM pro can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

IR+EO Dual Sensors Object Tracking

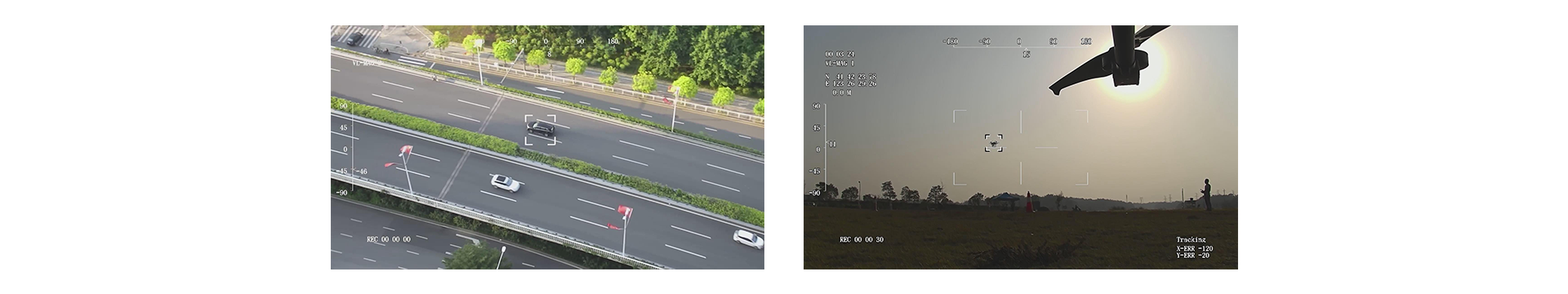

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 192pixel/frame,object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

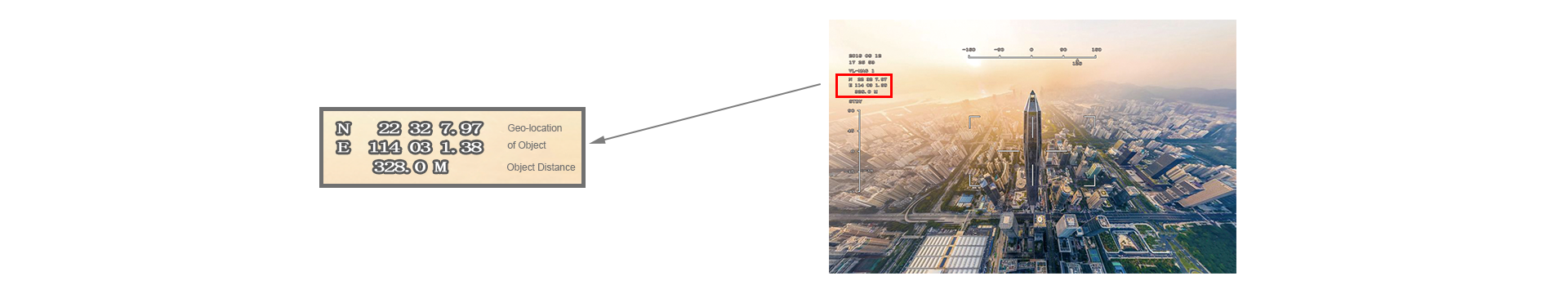

GPS Location Resolving

The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military and police.

Multi Output Methods Optional

Q30TIRM pro supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360 degree enless pan.

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

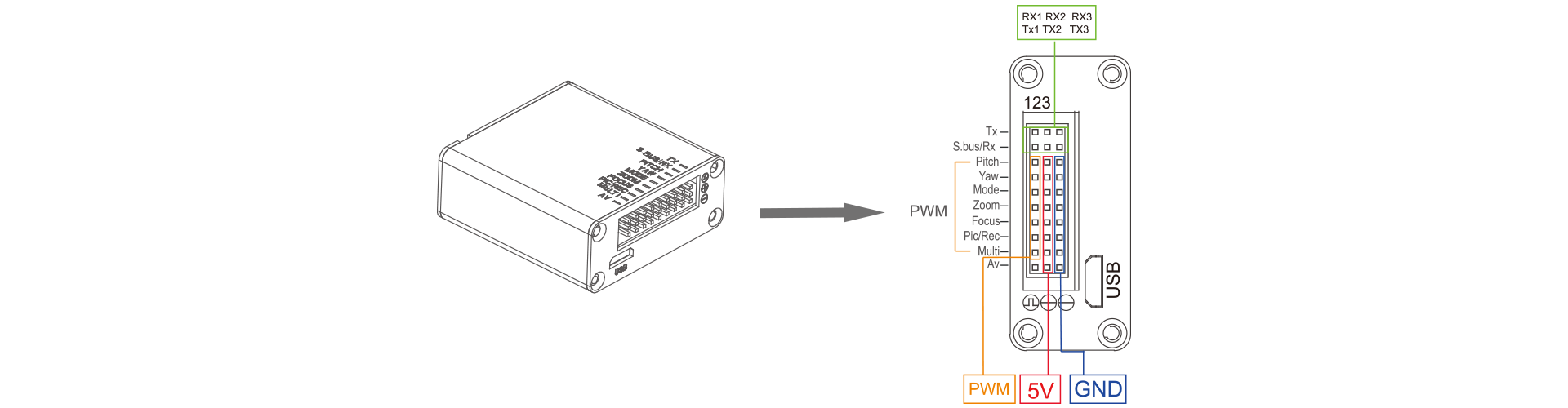

Control box signal interfaces:

Compatible with Viewport

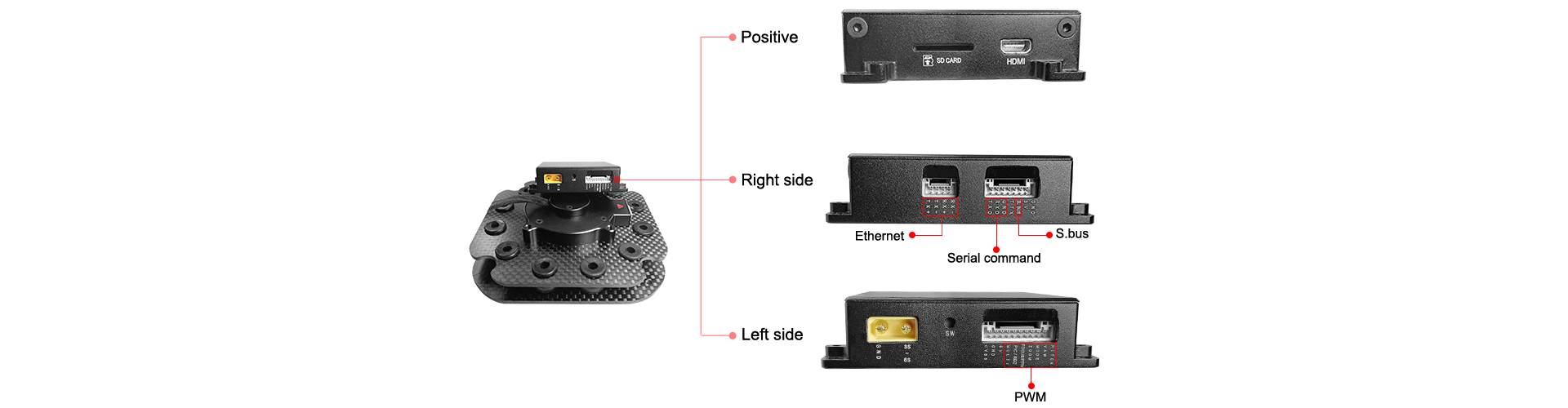

Q30TIRM pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Applications

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

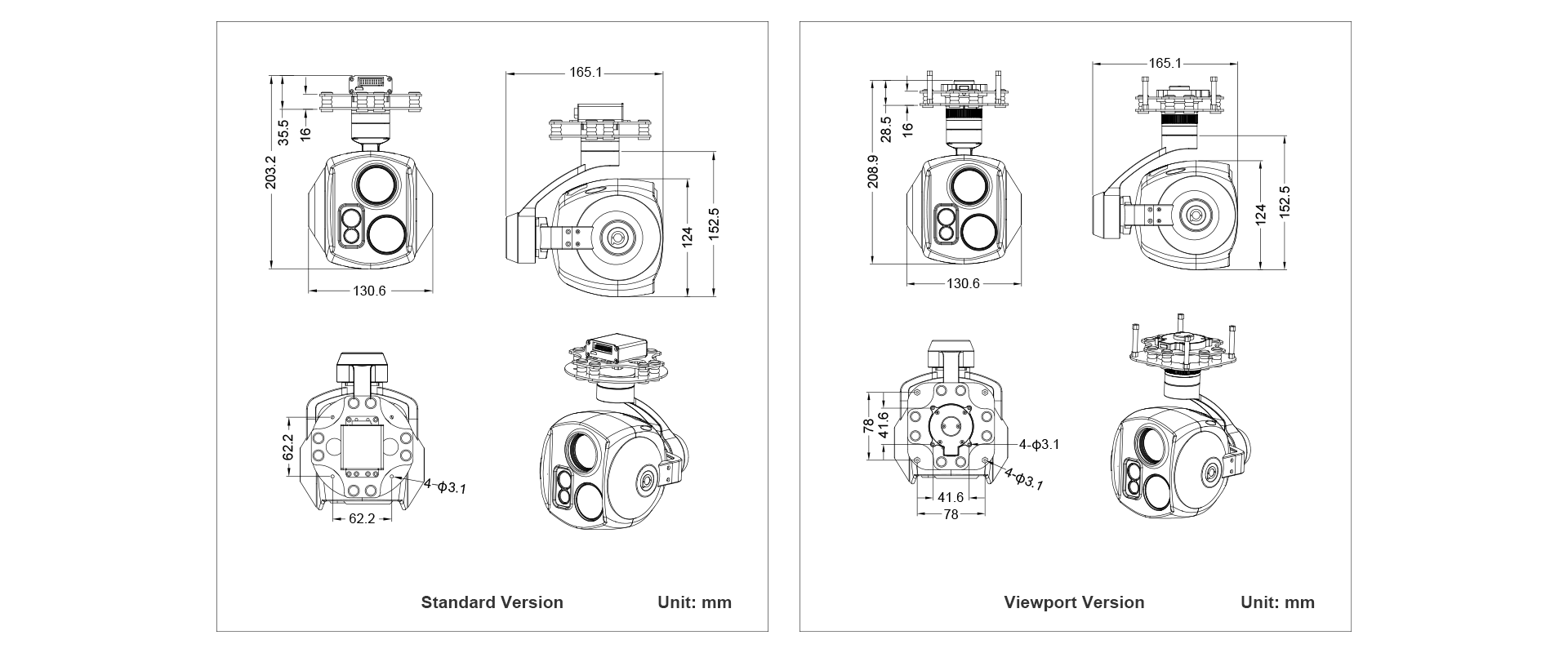

Dimensions

Specifications

HARDWARE PARAMETER
Working voltage: 14V~16V
Input voltage: 3S~6S
Output voltage: 5V(connect with PWM)
Dynamic current: 750mA@12v
Idle current: 650mA@12V
Working environment temp: -20°c~+60°c
Output: micro HDMI (HD output 1081P 60fps)/IP (720P)/SDI(1080P 30fps)
Local-storage: SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control: PWM/TTL/S.BUS/TCP(IP output)

GIMBAL SPEC
Angle scope of structure design: Pitch/Tilt:-100°~120°,Roll:70°,Yaw/Pan:±360°*N(IP output version)
Vibration angle:± 1 70°/±360°*N(IP/SDI output)
Vibration angle: Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center: √

CAMERA SPEC
Image sensor: SONY 1/2.8″ “Exmor R” CMOS
Picture quality: Full HD 1081(1920*1080)
Effective pixel: 2.13MP
lens optical zoom: 30x,F=4.3~129mm
Digital zoom: 12x(360x with optical zoom)
Min object distance: 10mm (wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle: 720p mode: 63.7°(wide end)~2.3°(tele end), SD: 47,8°(wide end)~1.7°(tele end)
Sync system: Internal
S/N ratio: more than 50dB
Min illumination: Color 0.01lux@F1.6,
Exposure control: Auto, Manual, Priority mode(shutter priority and iris priority), Bright, EV
Gain: Auto/ Manual 0dB to 50.0dB(0 TO 28 steps +2 steps/total 15steps)
Max.Gain Limit 10.7dB to 50.0dB(6 TO 28 STEPS +2step/total 12 steps)
White balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamb
(Fix/Auto/Outdoor Auto), One-push,Manual
Shutter speed: 1/1s to 1/10,000s, 22 steps
Backlight compensation: Yes
Aperture control: 16 Steps
Defog: Yes
OSD: Yes

CAMERA OBJECT TRACKING
Update rate of deviation pixel: 50 Hz
Output delay of deviation pixel: 5ms
Minimum object contrast: 5%
SNR: 4
Minimum object size: 32*32 pixel
Maximum object size: 128*128 pixel
Tracking speed: 32 pixel/frame
Object memory time: 100 frames(4s)
The mean square root values of pulse noise in the object position:<0.5pixel

THERMAL IMAGER SPEC
lens size: 32mm
Horizontal FOV: 17.7°
Vertical FOV: 13.3°
Diagonal FOV: 22°
Detective Distance(Man: 1.8x5m): 1029meters
Recognize Distance(Man: 1.8×0.5m) 257 meters
Verified Distance(Man:1.8x05m)129meters
Detective Distance(Car:4.2×1.8m)3157meters
Recognize Distance(Car: 4.2×1.8)789meters
Verified Distance(Car:4.2×1.8)395meters
Working mode: Uncooled long wave (8um~14um)thermal imager
Detector pixel: 640*480
Pixel size:17um
Focusing method: A thermal prime lens
Emissivity correction: 0.01~1
NETD:≤ 650mK(@25°c)
MRTD: ≤ 650mK(@characteristic frequency)
Image enhancement: Auto adjust image brightness and contrast ratio
Color palette: White, iron red , pseudo color
Auto Non- uniform correction: Yes(no shutter)
Digital zoom: 1x~4x
Sync correct time: Yes
Temperature type: Temperature bar (psudo color display) max temp, FOV center temp(Optional)
Temperature warning: 0°C~120°C(For thermometry version only)

THERMAL OBJECT TRACKING
Update rate of deviation: 50Hz
Output delay of deviation pixel: 5ms
Minimum object size: 32*32 pixel
Maximum object size: 128*128 pixel
Tracking speed: 32pixel/frame
Object memory time: 100frames(4s)

LASER RANGEFINDER
Laser Wavelengths: 1550nm
Optical aperture: Tranmit 13mm/ Receiver 17mm
Resolution: 3000m(Typical value 1: Object size: the target surface is larger than the laser spot area, Reflectivity:60%
Measure ability: Accuracy rate: 90%, Visibility: 10km , Environment temperature: 20°C, Atmospheric pressure: (1013mbar)2300m
Vehicle target measuring: (Typical value 2:Object size: 2.3*2.3m, Emissivity: 30%, Others same as Typical value 1)
Eye-safe: Class 1 [Standard IEC 60825-1, Second Edition(2007-03] Laser beam angle(Typical value): 1.0mrad
Accuracy(Typical value): ±0.75m
Accuracy(In harsh condition): ± 2m
Measurement frequency: 2Hz
Multi-target measuring: Max.2 targets distance values returning
Object resolution(Typical value) : 30m

Packing Information
N.W: 111OG/1180G(Viewport version)
Product meas: 203*131*165mm/209*131*165mm(Viewport version)
