Electric Power Package w/ Position Locking Props for Mugin 2930 and 4000

Description

Mugin UAV has joined forces with T-motor on a new design of motor that they’ve been working on. These motors are squeezing some higher thrust ratings at lower throttle and have another not so hidden secret that they can stop the VTOL propellers parallel to the booms while cruising.

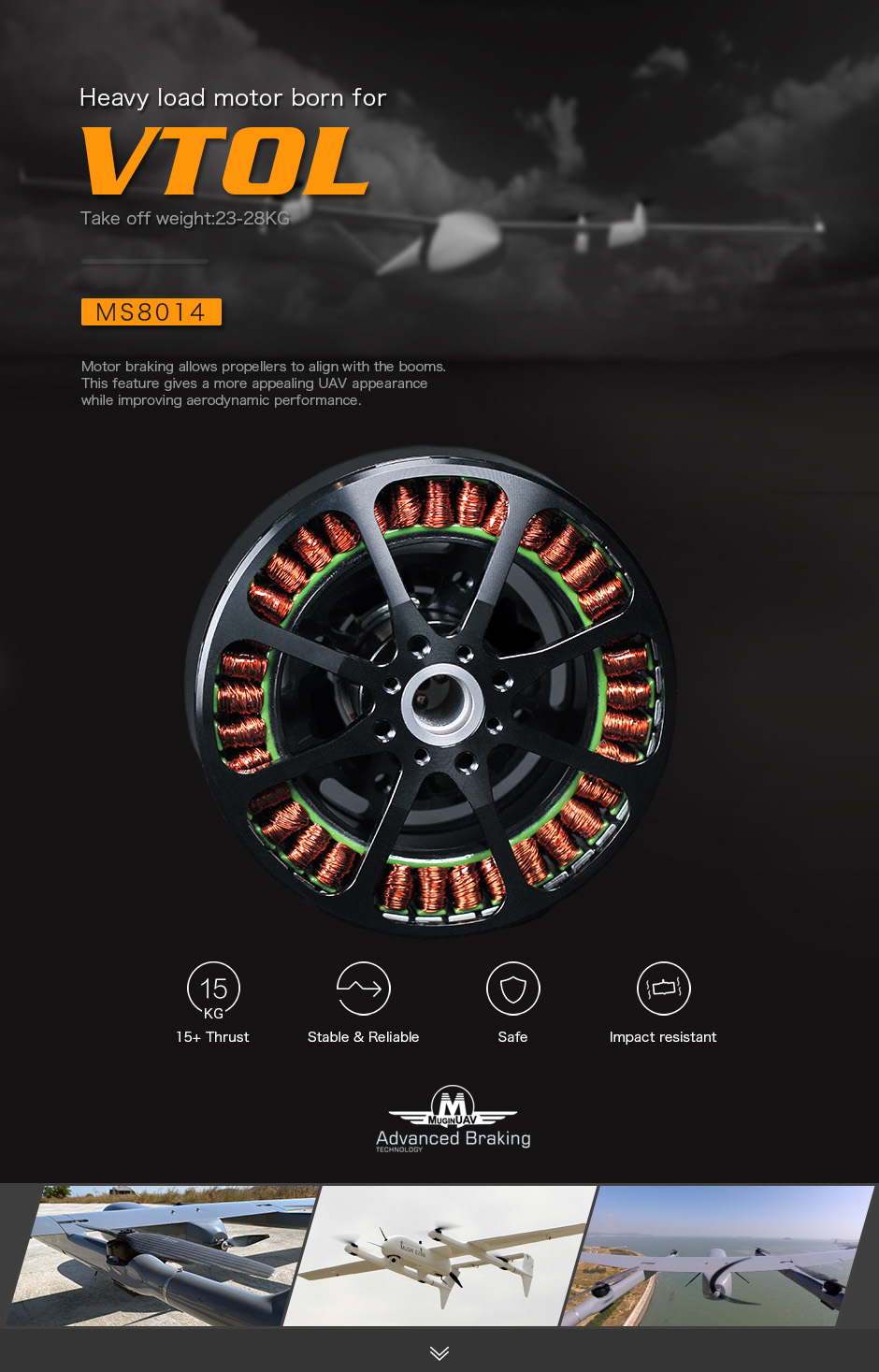

Motor braking allows propellers to align with the booms. This feature gives a more appealing UAV appearance while improving aerodynamic performance.

Now, after tests and tests, we include the motors in this new power pack for the use on Mugin 2930 Fiberglass Version, 2930 Carbon Fiber Version and Mugin-4 Pro 4000mm.

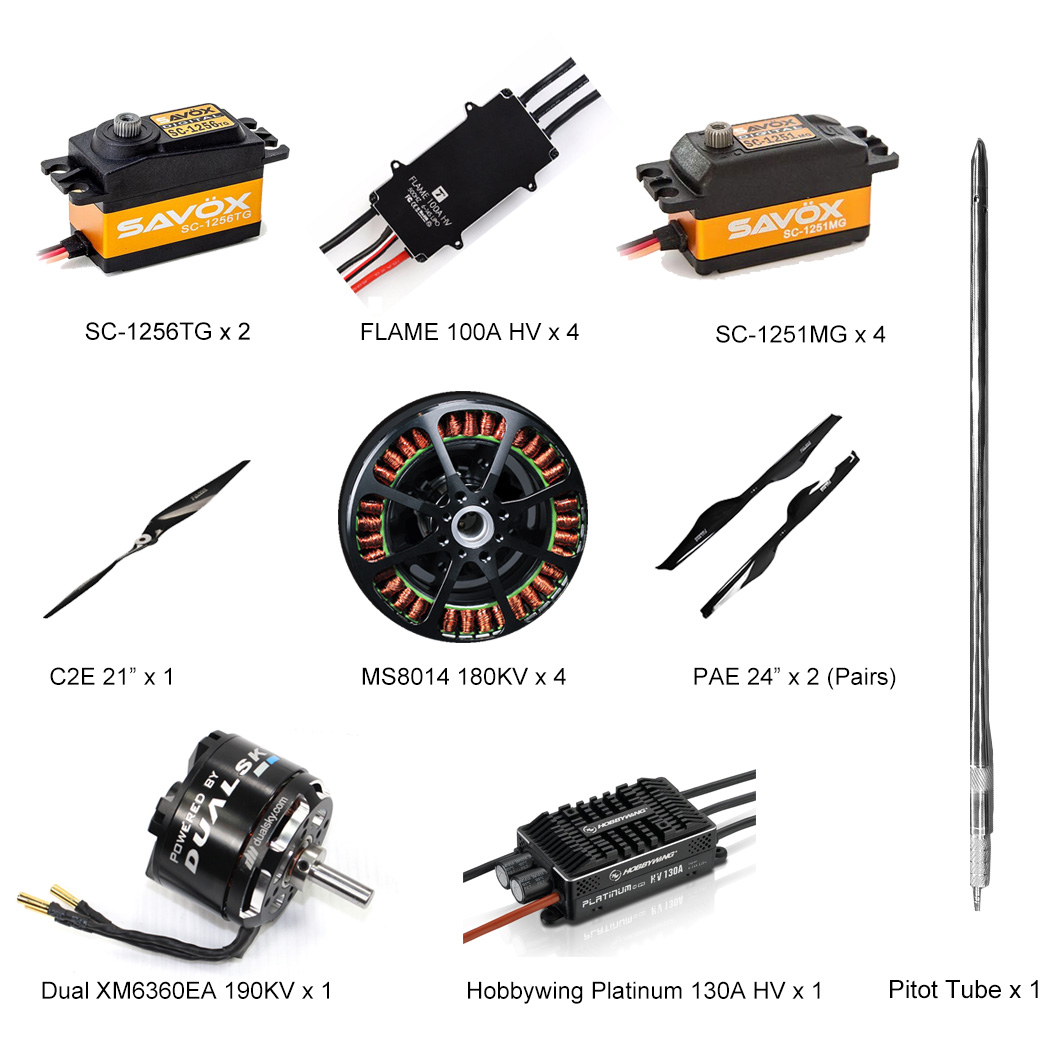

The power pack includes:

* T-motor MS8014 KV180 (VTOL Motors) x 4
* Dualsky XM6360EA 190KV (Forward Motor) x 1
* T-motor Flame 100A HV ESC x 4
* Hobbywing 130A ESC x 1
* Falcon PAE 24″ Propeller (Pairs) x 2
* Falcon C2E 21″ Propeller x 1
* Savox SC-1251MG Servo x 4
* Savox SC-1256 Servo x 2
* Long UAV Pitot Tube x 1
* Build Kit x 1

* The parts listed might be changed a bit based on the stock availability, but will with the same specifications and performance.

As per our flight tests with this power setup on Mugin 2930 Carbon Fiber Version, the maximum payload is about 5kg and the max. flight time is about 1.5 hours (it is about 2 hours for Mugin-4 4000 VTOL).

This Power Package is suitable to the VTOL UAV models of below:

• Mugin 2930 Fiberglass VTOL UAV Platform
• Mugin-2 Pro 2930mm Carbon Fiber VTOL UAV Platform
• Mugin-4 Pro 4000mm H-Tail Full Carbon Fiber VTOL UAV Platform
