Gasoline Power Package for Mugin VTOL UAV 2930 and 4000

Description

For your easier build of Mugin-2 2930mm and Mugin-4 4000mm UAV platforms, we have prepared this gasoline powered power package. It is suitable to use on both the Mugin 2930 Fiberglass Version, 2930 Carbon Fiber Version and Mugin-4 Pro 4000mm.  Before releasing, we have tested them to make sure all parts are matching well with each other.

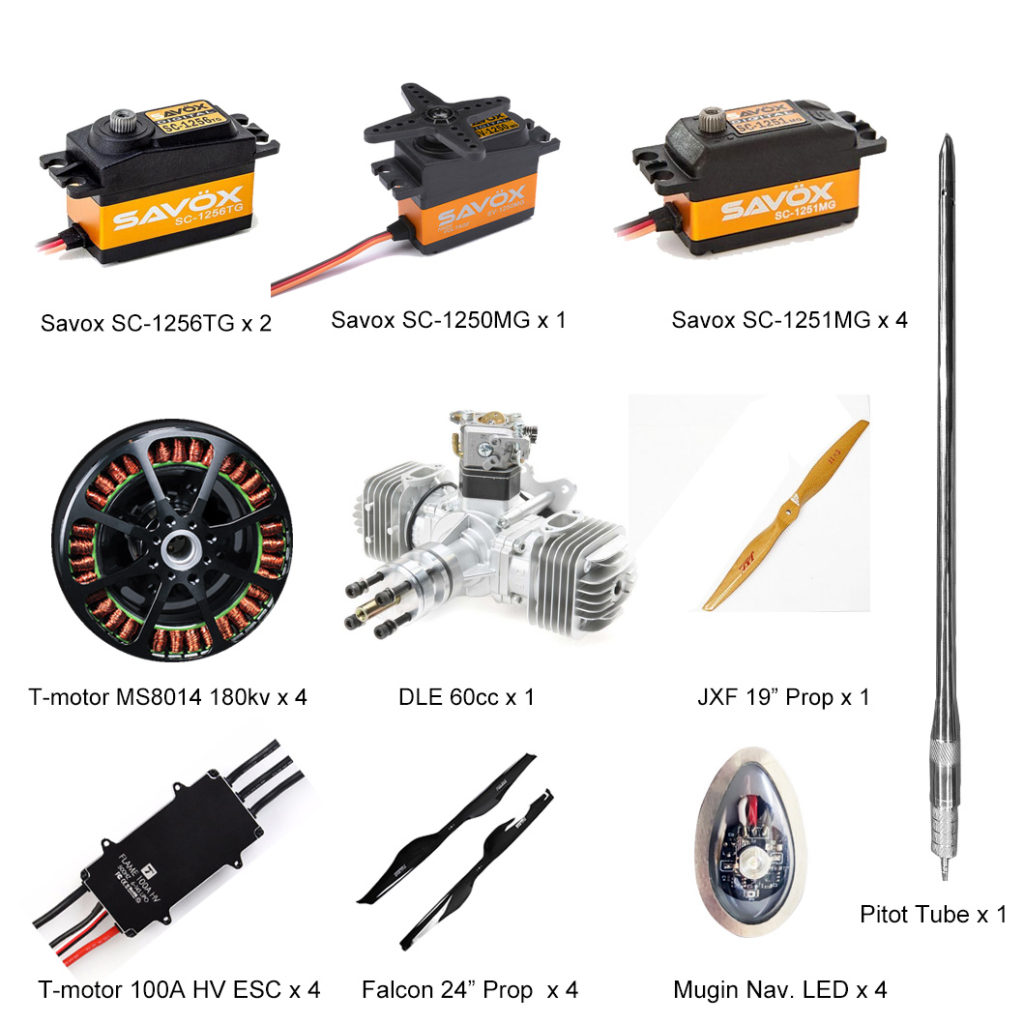

In order to ensure the excellent performance, we use the well-known and reliable brands only. This power package includes:

• T-motor MS8014 180kv Motors x 4
• T-motor Flame 100A HV ESC x 4
• DLE 60cc Engine x 1 (can be changed to DLE 40cc)
• Falcon PAE 24″ Propeller (Pairs) x 2
• Premier 19″ Wooden Propeller x 1
• Savox SC-1251MG Servo x 4
• Savox SC-1256TG Servo x 2
• Savox SC-1250MG Servo x 1
• Long UAV Pitot Tube x 1
• Build Kit x 1

* The parts listed might be changed a bit based on the stock availability, but will with the same specifications and performance.

As per our flight tests with Mugin-4 Pro 4000mm, the maximum flight time can be up to 5 hours, the maximum payload can be over 5kg.

• With 2kg payload and 5 liters fuel, the flight time is over 4 hours.
• With 3kg payload and 3.8 liters fuel, the flight time is over 3 hours.
• With 4kg payload and 2.5 liters fuel, the flight time is over 2 hours.

This Power Package is suitable to the VTOL UAV models of below:

• Mugin 2930 Fiberglass VTOL UAV Platform
• Mugin-2 Pro 2930mm Carbon Fiber VTOL UAV Platform
• Mugin-4 Pro 4000mm H-Tail Full Carbon Fiber VTOL UAV Platform
