Mugin-2 Pro 2930MM H-Tail Full Carbon Fiber VTOL UAV Platform – 2023 Edition

This is the newest 2023 version of Mugin 2930 VTOL UAV Platform. It can be either powered by full electric or by gasoline. This UAV platform is made in mold so as to make sure the replacement parts are the same. Compared to previous versions, there are some new features:

• Each boom is divided into two pieces for easier carry and international shipping.
• The booms and internal ribs all have been strengthened for longer time use.

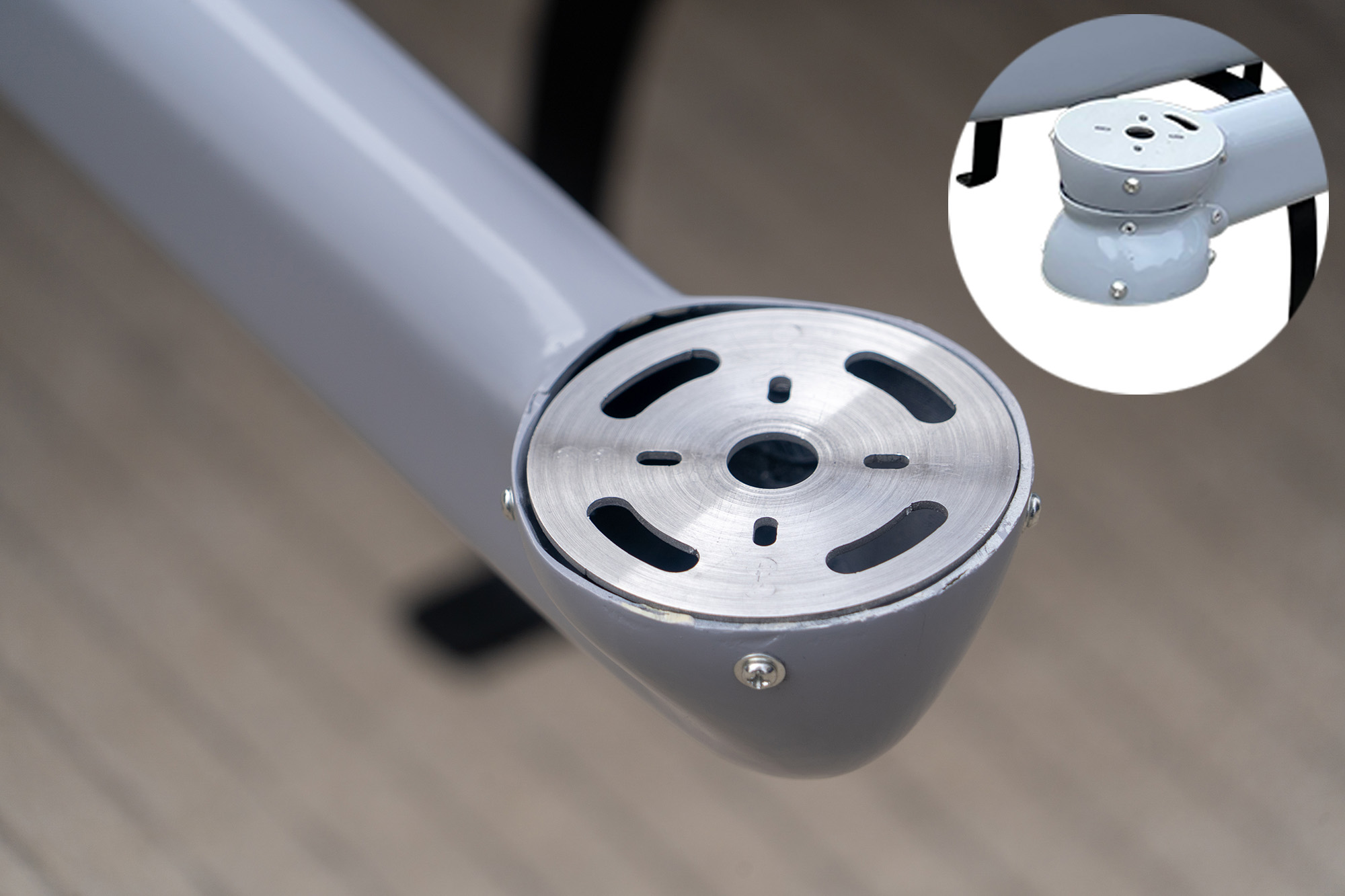

• Built-in VTOL motor mounts with 5 degree offset angle.
• It is easy to change the aircraft to Octo configuration with 8 motor mounts.

The Mugin-2 Pro is an aircraft with the vertical take-off and landing (VTOL) function that can hover, take off, and land vertically. No runway needed and much easier to save crash comparing to the standard fixed wings. The platform caters to larger UAS projects such as universities or commercial projects.

Recommended Setup:

• Mugin-2 VTOL Flight & Electric Propulsion System
• Mugin-2 VTOL Flight & Gasoline Propulsion System

  Mugin VTOL UAV Build Guide V1 (Electric Setup)

Dimensions
Wingspan: 2930mm
Length: 2030mm
Wing Area: 100.85dm2
Payload Bay: 560mm x 210mm x 185mm

Weight and Payload
Empty Weight: 7.1kg
Empty Weight with Propulsion System: 16.5kg
Maximum Take-off Weight: 25kg
Payload Capacity: 6kg

Flight Characteristics
Cruise Speed: 23 to 25m/s
Maximum Speed: 30m/s
Stall Speed: 18m/s
Max. Flight Time by Gasoline: 3 Hours
Max. Flight Time by Electric: 1.5 Hours
Range: Restricted to Flight Time

It is easy to change the aircraft to octocopter configuration.

The aircraft in octocopter configuration (Optional)
