Mini Mugin 2600mm Carbon Fiber H-tail/V-tail UAV Platform

Description

We are thrilled to introduce the newly upgraded Mini Mugin 2600 H-Tail/V-Tail UAV Platform, now crafted from high-quality carbon fiber for unparalleled durability and performance. The carbon fiber material not only offers the advantage of being lightweight but also provides greater strength and rigidity. This translates to a longer lifespan and higher payload capacity, giving this compact UAV frame kit a distinct edge in its category.

Aerodynamic Excellence

Engineered with a wingspan of 2600mm and a length of 2050mm, the carbon fiber construction offers superior aerodynamic performance. Its H-Tail/V-Tail configurations provide added stability and control, making it versatile for a wide range of aerial tasks.

Customization and Versatility

The Mini Mugin 2600 offers comprehensive customization options. Designed to accommodate a 20-35cc gasoline engine, it excels in both speed and efficiency, with a cruising speed of 24m/s and a stall speed of 16m/s.

Convenient Package Deals

Various package deals are available, including options for engines and servos, to save you the time and effort of sourcing components individually.

In summary, the upgraded Mini Mugin 2600 H-Tail/V-Tail UAV Platform, now made of carbon fiber, offers unparalleled performance, versatility, and customization options, setting it apart in the compact UAV market.

Specifications：
Wingspan: 2600mm
Captain: 2050mm
Wing Area: 88dm2
Empty weight: 6.5 kg
Engine: 20-35cc gasoline engine
Propeller: 19 * 8 propeller thrust
Maximum Takeoff Weight: 15 kg
Payload: 4 kg
Cruising Speed: 24m/s
Maximum Speed: 30m/s
Stall Speed: 16m/s
Flight time: 2 hours

Mugin 2600 UAV Build Guide (Videos)

 Mugin 2600mm UAV Build Guide

For your easier build, it also comes in four Package deals, so you do not need to spend hours of research looking for everything you need to get this plane in the air. Just assemble and you are ready to go.

Package Deal One – US$2250
1x Mini Mugin 2.6m UAV Frame Kit with fuel tank and landing gear (V-Tail and H-Tail selectable)

Package Deal Two – US$2699
1x Mini Mugin 2.6m UAV Frame Kit with fuel tank and landing gear (V-Tail and H-Tail selectable)
1x DLE 30CC Engine
1x 17*8 High Power Propeller (with Propeller Cover)

Package Deal Three – US$3049
1x Mini Mugin 2.6m UAV Frame Kit with fuel tank and landing gear (V-Tail and H-Tail selectable)
1x DLE 30CC Engine
2x Futaba S3001 Servo
2x Futaba S3003 Servo
1x Futaba S3010 Servo (V-Tail version does not contain this servo)
2x Hitec HS-5085MG Servo
1x 17*8 High Power Propeller with Propeller Cover

Package Deal Four- US$3450
1x Mini Mugin 2.6m UAV Frame Kit with fuel tank and landing gear
1x DLE 30CC Engine
2x Futaba S3001 Servo
2x Futaba S3003 Servo
1x Futaba S3010 Servo (V-Tail version does not contain this servo)
2x Hitec HS-5085MG Servo
1x Long UAV Pitot Tube (Dynamic version and Static Version selectable)
1x Hobbywing 25A UBEC
1x 17*8 High Power Propeller with Propeller Cover
1x Build Kit ( wires, screwnuts and other accessories)

Note: We provide free design services for the internal structure of fuselage. Only the production will be charged according to the structure change.

Mini Mugin 2.6m UAV V-Tail

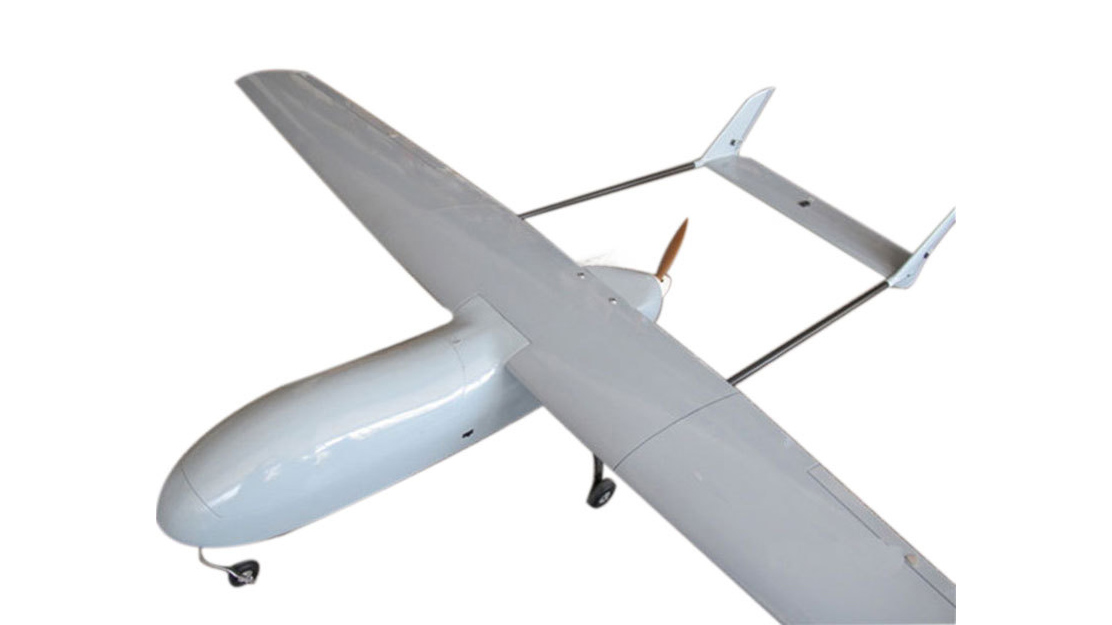

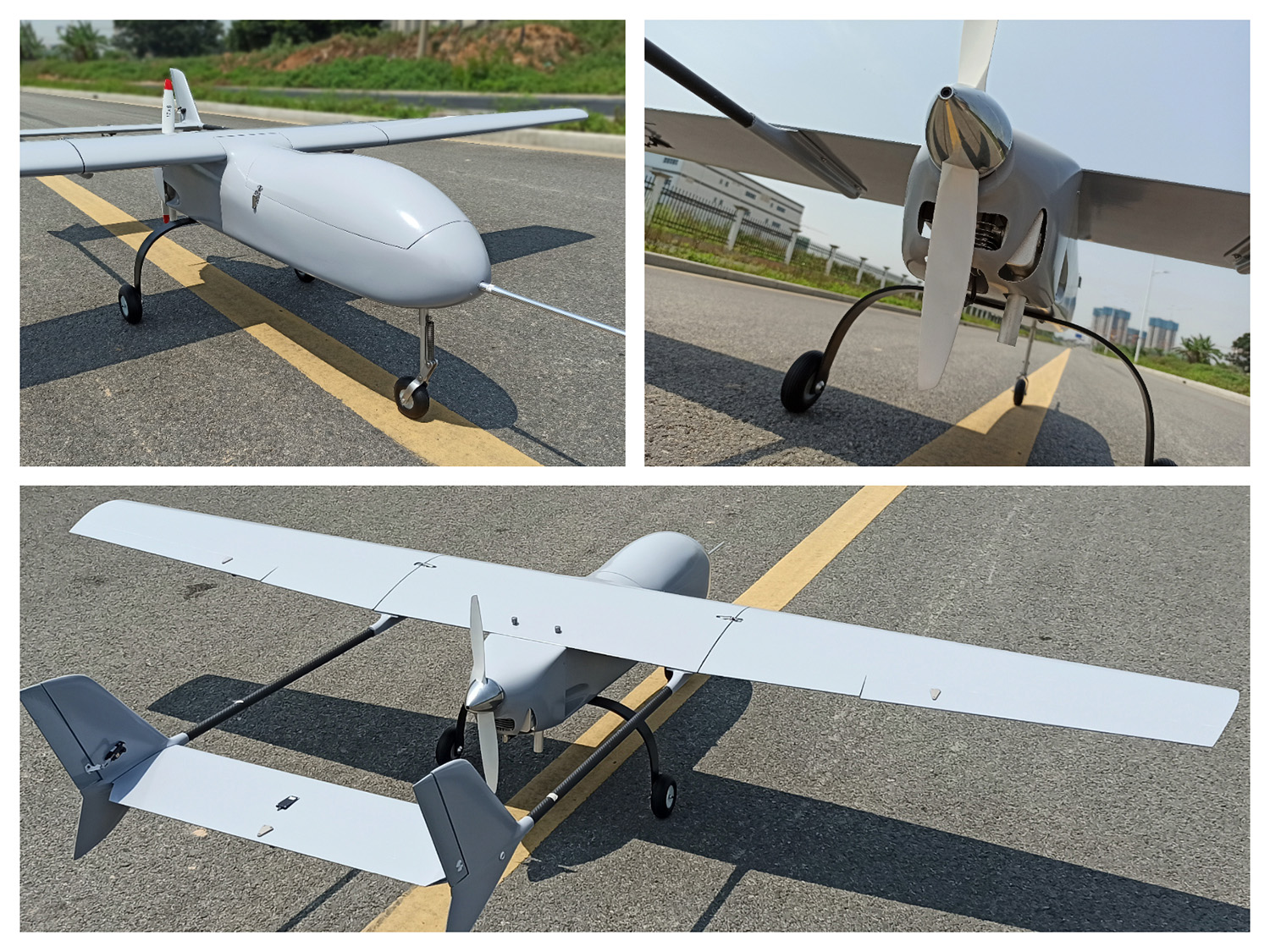

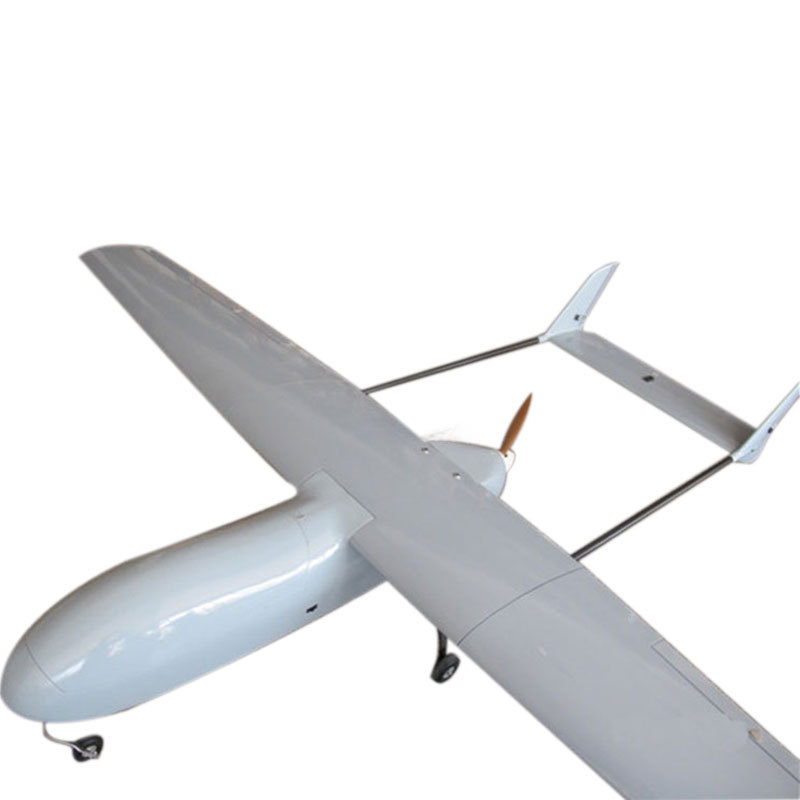

Mini Mugin 2.6m UAV H-Tail
