Mugin-6 Pro 6000mm Extra Large VTOL UAV Platform

The Mugin 6000mm VTOL is designed based on the Mugin 4450 VTOL with extended wingspan of 6000mm, in hope of reaching a longer flight time to 10 hours.

Comparing to Mugin 4450 VTOL, there’re some new features with this 6000 VTOL:

1. Extended Wingspan of 6000mm.
2. Each boom is divided into two pieces for easier carry and international shipping.
3. Booms and internal ribs all have been strengthened.
4. Built-in VTOL motor mounts with 5 degree offset angle.

The Mugin 6000 is an exceptionally large aircraft designed for professional use and can be equipped with a full system of advanced control electronics to run in sync with the most advanced ground stations. With full fuel of 27 liters, the flight time can be over 7 hours.

SPECIFICATIONS:

• Main material: carbon fiber
• Wingspan: 6000mm
• Length: 3500mm
• Maximum Width of Fuselage: 375mm
• Wing Area: 312 dm2
• Empty Weight: 34.2kg
• Maximum Take-off Weight: 110kg
• Maximum Speed: 36m/s
• Cruise Speed: 34m/s
• Stalling Speed: 24m/s
• Maximum Payload: 20kg
• Volume of Fuel Tank: 28Liters
• Maximum Flying Time:  5 to 10 Hours
• Equipment cabin size: 920mm x 340mm x 350mm

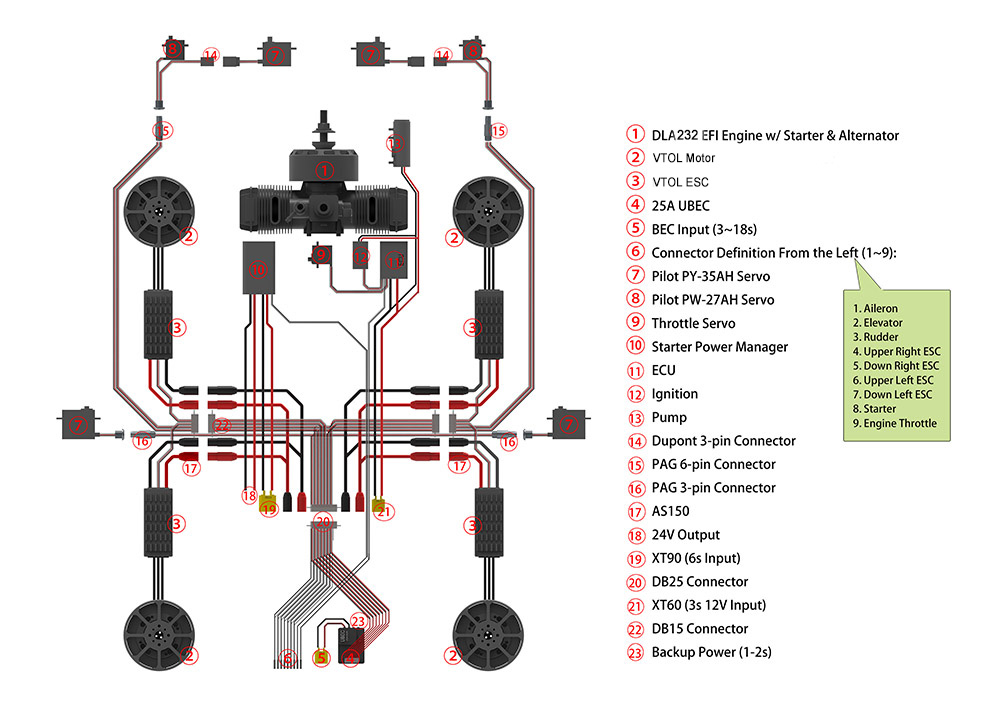

Recommended Setup (Additionally Charged):

• * DLA 232cc Engine w/ EFI, Starter & Alternator
  * Customized T-motor MS13L 65kv VTOL Motors x 4
  * Customized T-motor 24S 200A ESC x 4
  * Pilot PY-48AH Servo x 4
  * Pilot PW-28AH Servo x 3
  * JXF 32″x14″ Forward Propeller x 1
  * T-motor G40″ Carbon Fiber VTOL Propeller x 2 Pairs
  * Build Kit x 1
  * 6s 8000mAh Lipo x 17
