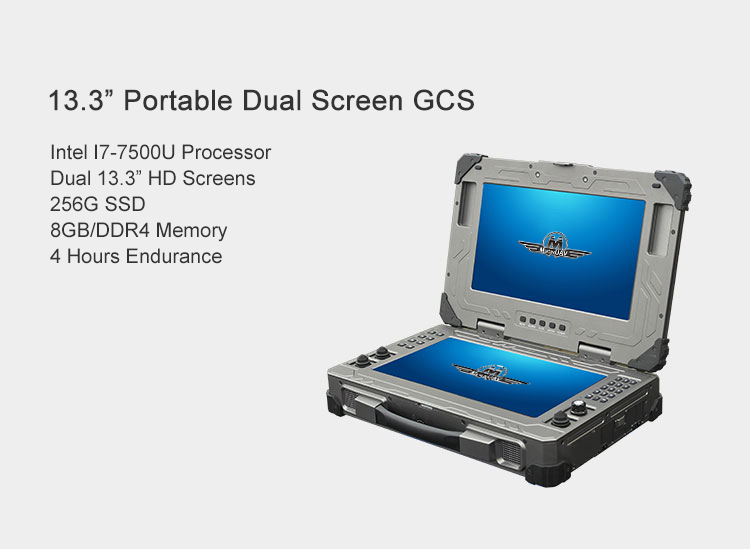

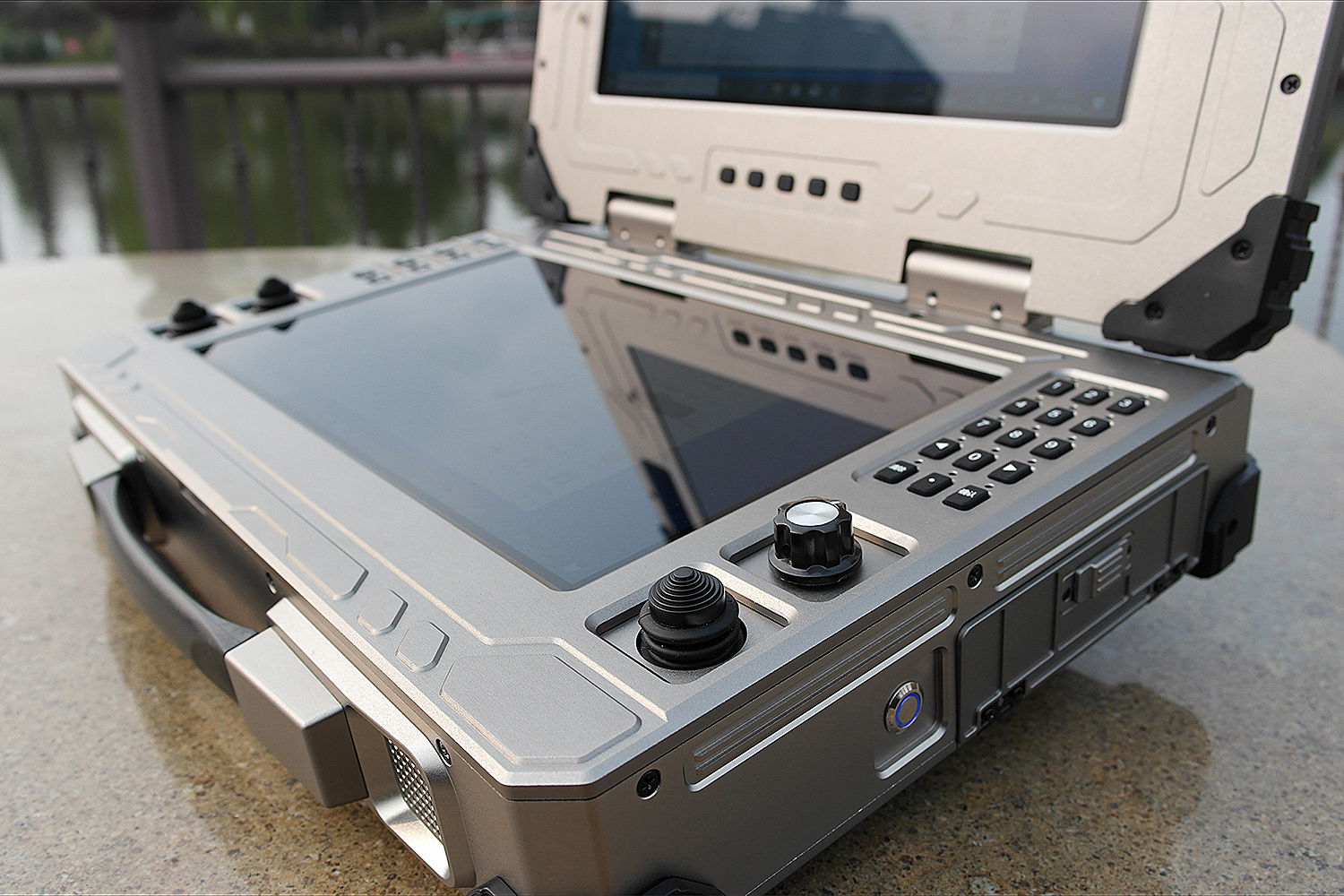

Mugin 13.3″ Portable Dual Screen Ground Control Station

Description

Mugin 13.3″ Portable Ground Control Station features a professional layout and functions. It is equipped with two 1000nits touch screens to minimize glare in bright conditions, ideal for your flight use in the field.

Features:

• • Two 1000 nits high-brightness LCD screens, screen brightness adjustable.
  • Optional memory, solid-state disk size.
  • Two Gigabit Ethernet ports for fast network communication.
  • 8 custom buttons.
  • Lithium battery with 4 hours long battery life.
  • Internal reserved space for secondary development.
  • Made of aluminum alloy, hard anodized and sandblasted.
  • Supports Windows 7 /Linux system.

This GCS works great with Potomac 80km transmission system and Potomac 150km transmission system.

System Parameters:

• Processor: Intel I7-7500U
• Battery Endurance: 4 Hours with Full Capacity
• Memory: 8GB/DDR4
• Disk: 256G SSD
• Operating System: Windows 7 /Linux

Screen:

• Monitor Type: 2 x 13.3″ FHD TFT LCD
• Resolution: 1920*1200
• Display Dimensions: 293.472 x 165.078mm

I/O Interfaces

• Ethernet Port: 2
• USB Port: 5
• HDMI: 2
• SIM: 1
• Power Supply: DC19V

Buttons

• Screen Brightness Adjustment Button: Brightness/Signal Adjustment
• Customization: 8
• Numerical Keyboard: 1
• Knob: 1
• Two-axis Joystick: 2

Touch Screens:

• Upper Screen: Optional Resistive Touch Screen
• Down Screen: Capacitive Touch Screen

Environmental Requirements:

• Operating temperature: -20~50℃
• Storage Temperature: -30~60℃

•
