DLE60 Pro 60cc Twin Gas Engine w/ Savox Servo and Mounting Plates

Introducing the Enhanced DLE60 Engine: Precision, Convenience, and Performance Redefined

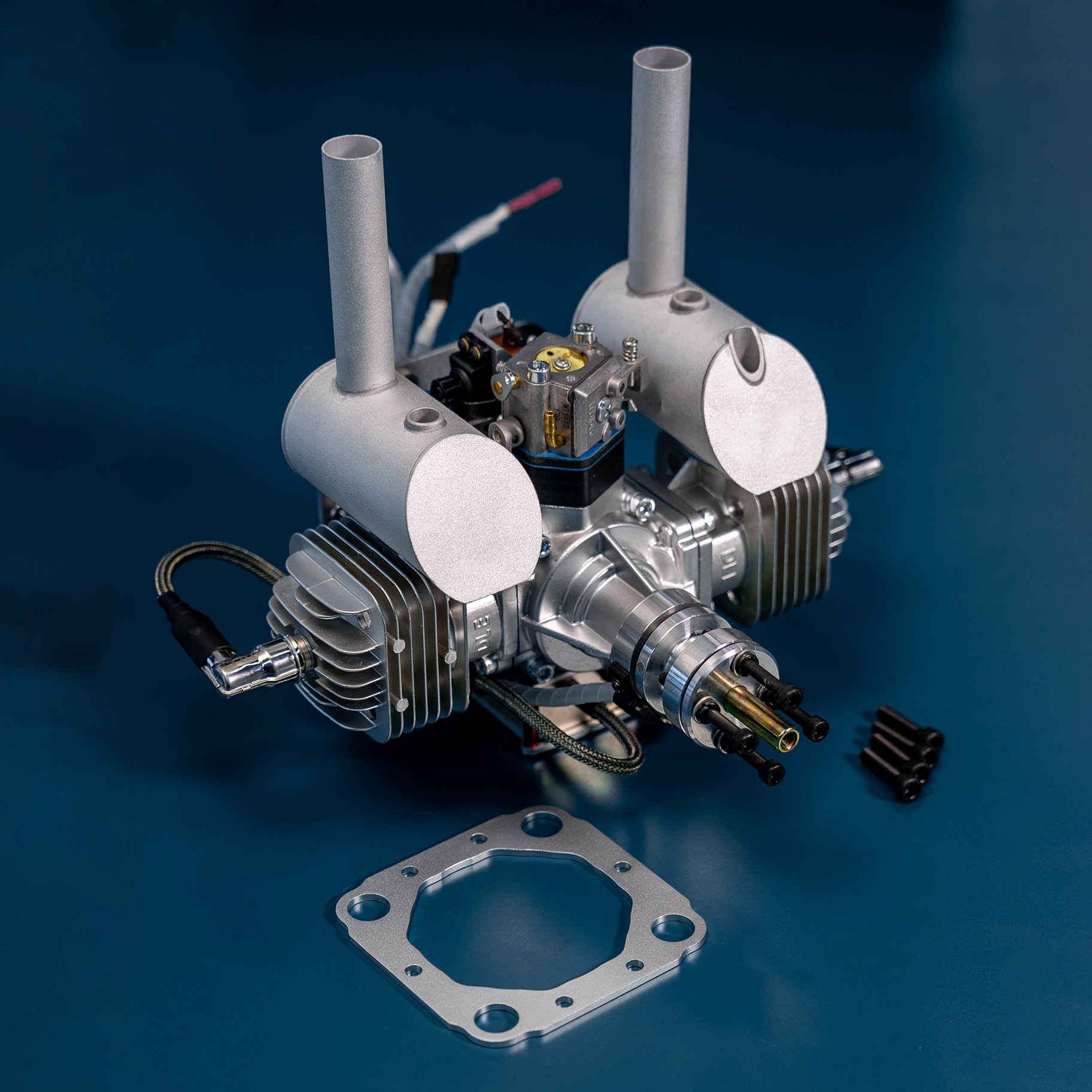

This is the DLE60 Pro twin gas engine, meticulously enhanced by Mugin UAV from the standard version, crafted to provide aviation enthusiasts with an unparalleled flying experience.

🔧 DLE60 Pro Upgraded Features:

• Built-in Savox 1250 Throttle Servo: Experience precise throttle control with the integration of the Savox 1251 servo, ensuring accurate engine cycles every time.
• Engine Mounting Bracket & Base Plates: Simplify your installation process with our newly added mounting bracket and base plates, designed for a seamless fit.
• Ignition Mounting Bracket: Our dedicated bracket ensures that the ignition system remains stable and secure, optimizing performance.
• Vibration Dampening System: Say goodbye to excessive vibrations! Our advanced dampening system greatly enhances the engine’s stability, ensuring smoother operations.
• Redesigned Throttle Intake: We’ve replaced the original engine intake with a design that bypasses the throttle, ensuring more accurate engine cycles and improved fuel efficiency.

Benefits:

• Ease of Installation: Our enhancements are tailored to make the engine installation process as straightforward as possible.
• Improved Vibration Dampening: Experience a significant reduction in vibrations, leading to better aircraft stability and longevity.
• Accurate Engine Cycles: With the throttle no longer passing through the intake, expect more precise engine cycles, optimizing performance and fuel consumption.

Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin! The DLE-60 Twin gasoline engine also offers strong horsepower and an excellent power-to-weight ratio, keeping weight low while producing all the muscle your bird requires.

• Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
• Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.
• Includes two high-quality Pitts style mufflers, beveled to reduce installation work by avoiding need to cut into cowl, thus also preserving scale lines and aerodynamics.

Performance：7HP/8500rpm
Idle Speed：1400 rmp/min
Static Thrust：15.2kg/100 meters Altitude
Static Thrust：13.5kg/1800 meters Altitude
Recommended Propeller：22×10 ; 23×8 ; 23×10 ; 24×8 ;
Spark Plug Type: NGK CM6
Displacement： 61cm3
Diameter x Stroke： 36mm×30mm
Compression Ratio： 7.6：1
Lubrication Ratio： 30:1
Weight of Main Engine： 1560g
Weight of Exhaust: 200g
Weight of Ignition: 190g
Ignition voltage： 4.8V-8.4V
