Mugin-6 Pro 6000mm Carbon Fiber UAV ARF

$39,900.00

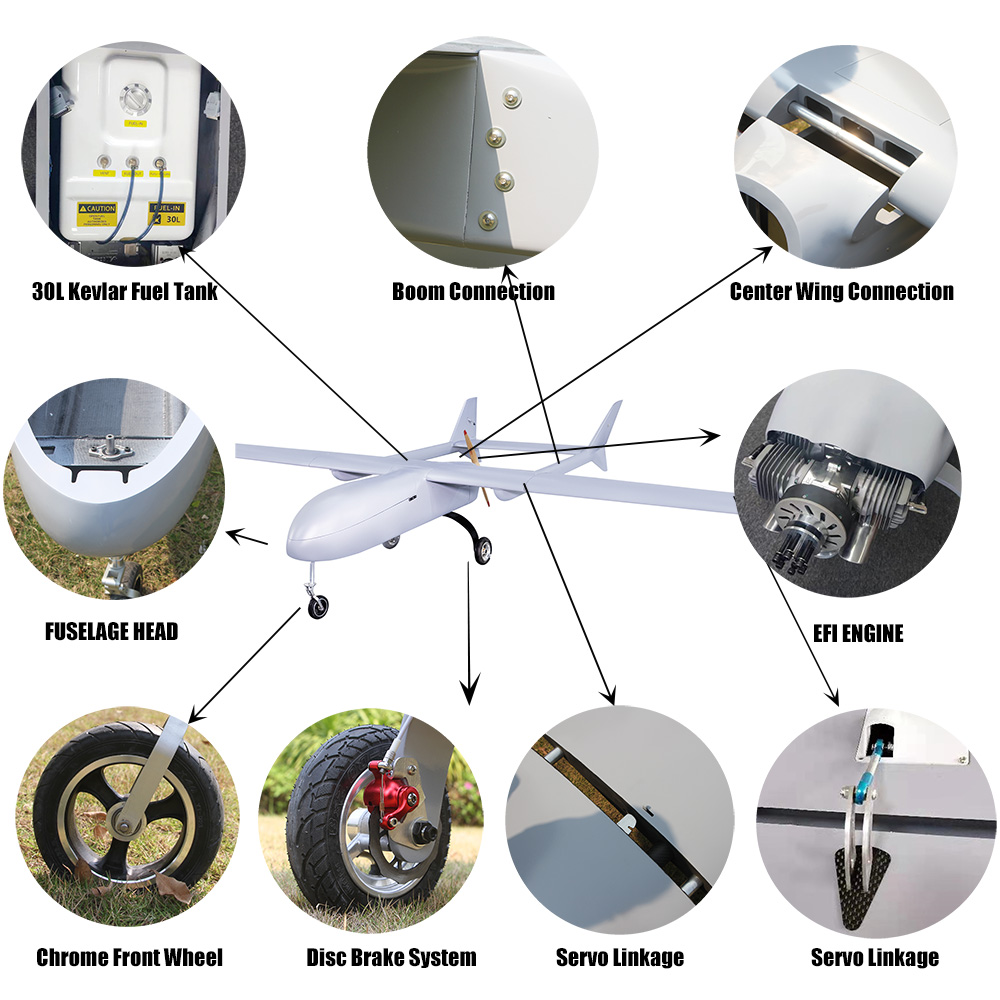

Introducing the Mugin-6 Pro 6000, the latest UAV platform from Mugin UAV. With a longer wingspan and a maximum payload of 30kg, this fixed-wing drone can fly for over 8 hours, making it perfect for long-range missions. Equipped with a reliable and efficient propulsion system, the Mugin-6 Pro 6000 can be used for a wide range of applications, including mapping, surveying, and inspection.

Safety is a top priority when it comes to drone operations, and the Mugin-6 Pro 6000 has you covered with its Disc Brake System. This feature allows the drone to come to a safe and controlled stop during landing, providing an additional layer of protection for your valuable equipment and ensuring a successful mission.

Category: Tags: , , , , , ,

Description

90kg Take-off Weight
30kg Payload
>8 Hours Flight Time
Disc Brake System

Introducing the Mugin-6 Pro 6000, the latest addition to our family of fixed-wing UAV platforms. Based on the popular Mugin-5 Pro 5000 platform, the Mugin-6 Pro 6000 boasts a longer wingspan for increased flight endurance, now reaching over 8 hours with a maximum payload of 30 kg.

Like the Mugin-5 Pro 5000, the Mugin-6 Pro 6000 is built with high-quality carbon fiber material to ensure durability and reliability in the most challenging environments. The platform features a strengthened internal rib structure for a longer lifespan, and each boom is now in two pieces for easier transport and shipping.

One of the standout features of the Mugin-6 Pro 6000 is its Disc Brake System. This advanced braking system ensures safe and efficient landings by providing the UAV with the ability to brake while landing, reducing the risk of accidents and improving overall safety.

As an ARF (Almost-Ready-to-Fly) platform, the Mugin-6 Pro 6000 is configured with our recommended power setup, which includes a CUAV X7+ Pro autopilot, RTK GNSS module, Neo 3 GPS, DLA 180cc EFI Engine with Starter & Alternator, Pilot PY-48AH Servo, Pilot PW-28AH Servo and more. The RTK/GPS-based autopilot system that ensures precise navigation and waypoint tracking, making it ideal for long-range missions.

Overall, the Mugin-6 Pro 6000 UAV is an excellent option for anyone looking to gather high-quality aerial data quickly and efficiently. Whether you’re a researcher, a farmer, or a delivery company, this drone offers the capabilities and flexibility to meet your needs.

Specifications:

  • Wingspan: 6000mm
  • Length: 3500mm
  • Fuselage maximum width: 375mm
  • Wing area: 261.5 dm2
  • empty weight: 33.64kg
  • Maximum speed: 140km/hr
  • Cruise Speed: 115km/hr
  • Stalling speed: 55km/hr
  • Maximum Take-off Weight: 110kg
  • Maximum Payload: 30kg
  • Equipments cabin size: 920mmx340mmx350mm
  • Volume of fuel tank: 30 Liters
  • Take off distance: 60 meters
  • Landing distance: 85 meters
  • Maximum Flying Time: >8 Hours

Your Purchase Includes:

CUAV X7+ Pro Autopilot x 1
CUAV 9Ps RTK GNSS Module x 2
DLA 180cc EFI Engine with Starter & Alternator x 1
Pilot PY-48AH Servo x 2
Pilot PW-28AH Servo x 4
Tower Pro MG958 Servo x 1
32″ x 10″Forward Propeller x 1
AT23D Long UAV Pitot Tube x 1
Navigation LED Lights x 1 set
Build Service x 1
Transport Case x 1
