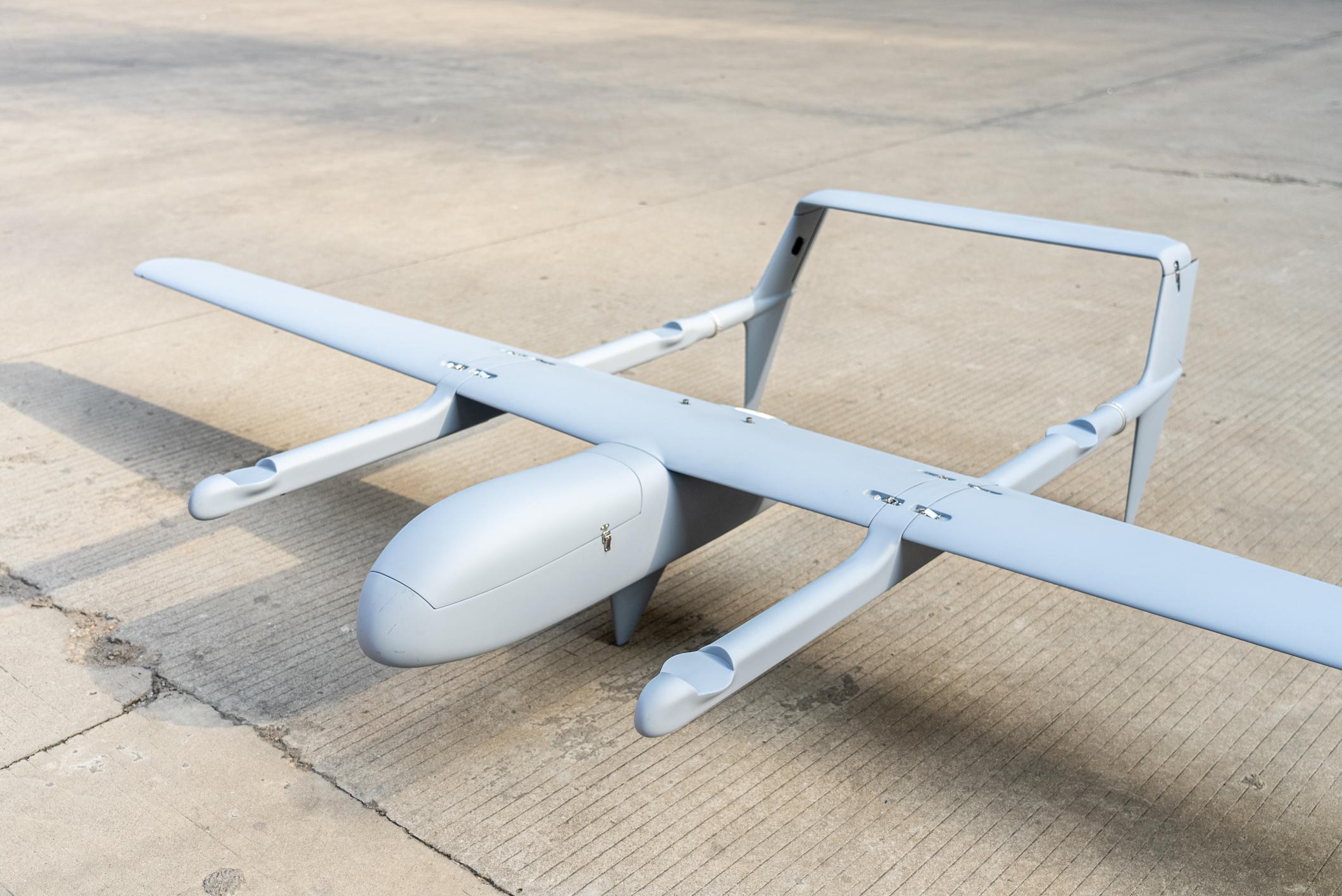

Mugin EV350（ARF） Full Electric Carbon Fiber VTOL UAV Platform
EV350D ARF is the ARF (Almost Ready to Fly) version of the pure-electric vertical takeoff and landing (VTOL) drone (Model 350D), featuring a highly compatible power system as its core to deliver streamlined integration and enhanced user experience.
Key Features
- Highly Compatible Power Components

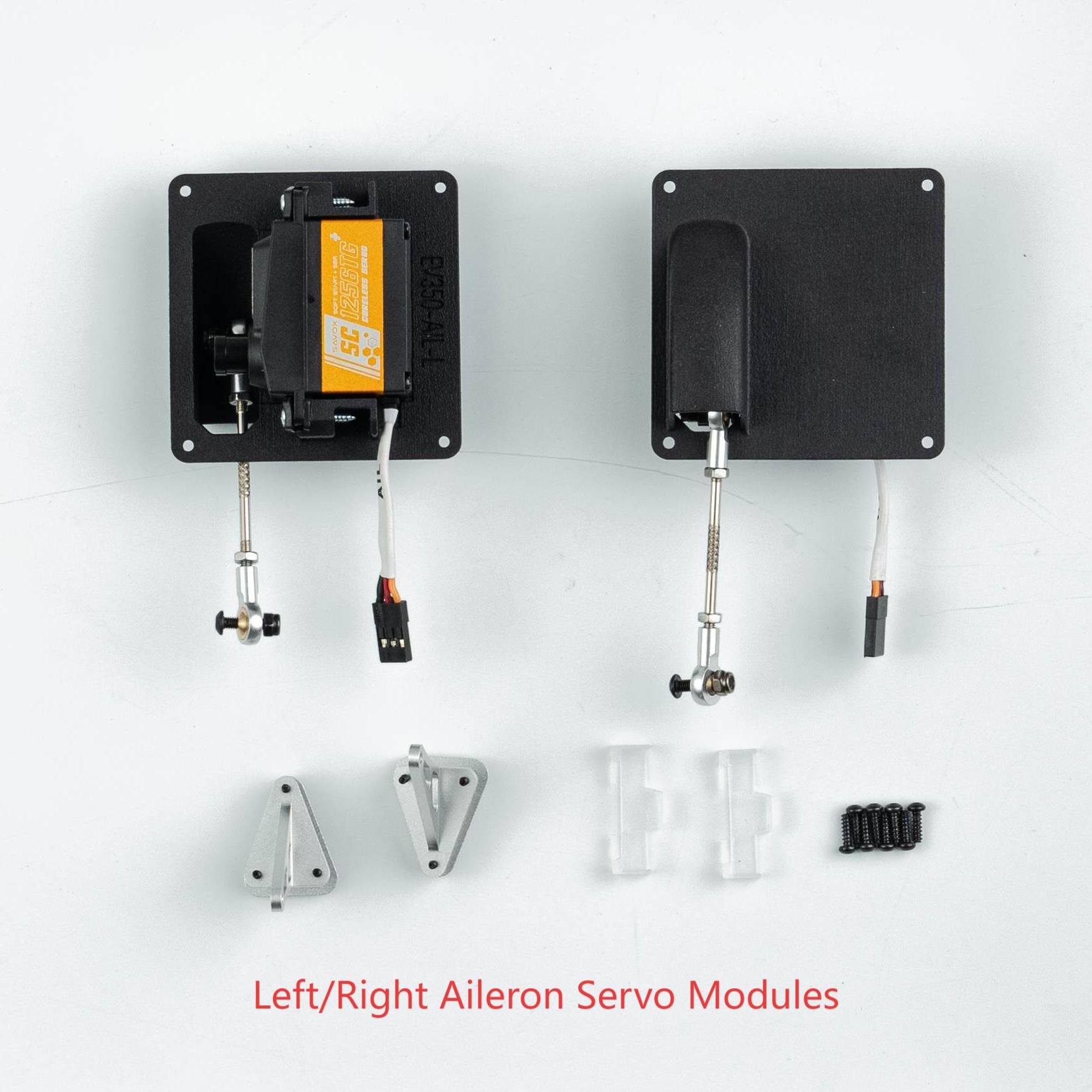

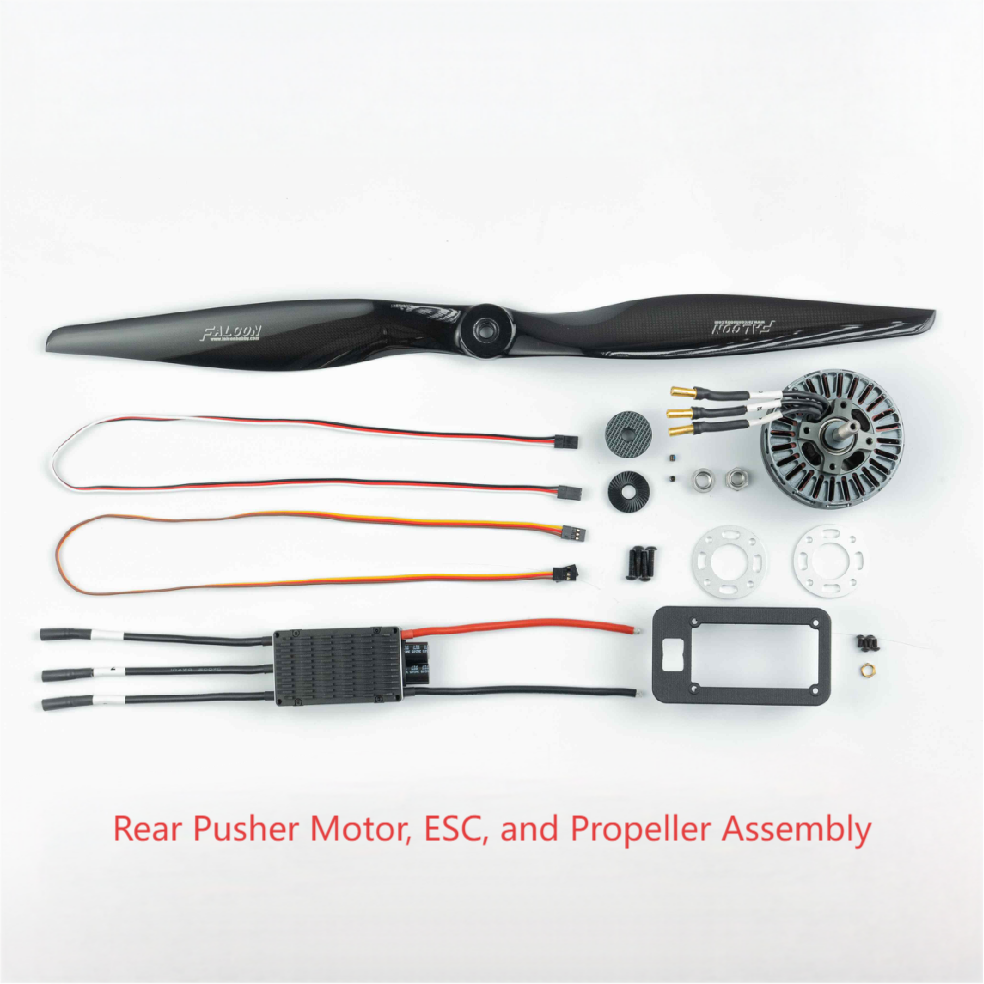

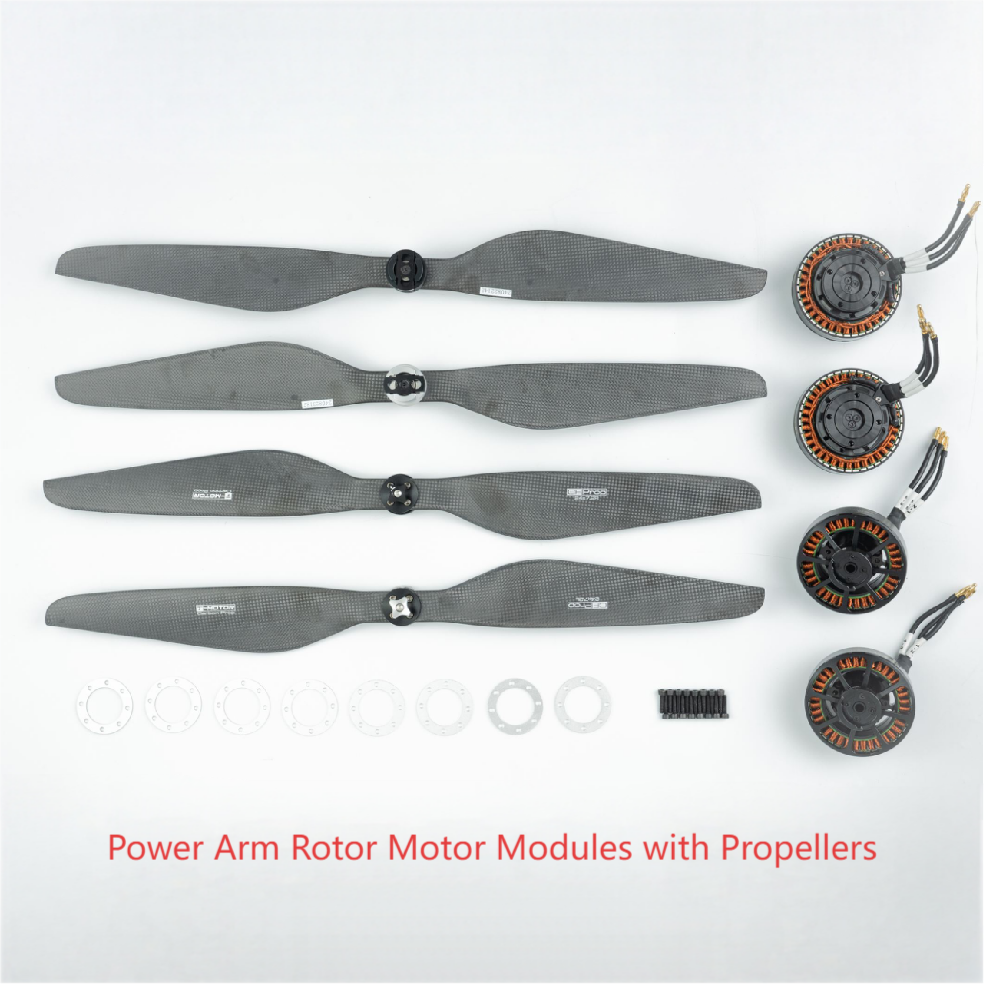

The EV350D ARF integrates professional-grade servos, brushless motors, ESC (Electronic Speed Controller) modules, and propellers, ensuring seamless compatibility with the flight platform. This design guarantees operational safety, reliability, and a stable, high-performance flight experience. - Precision Flight Data Support

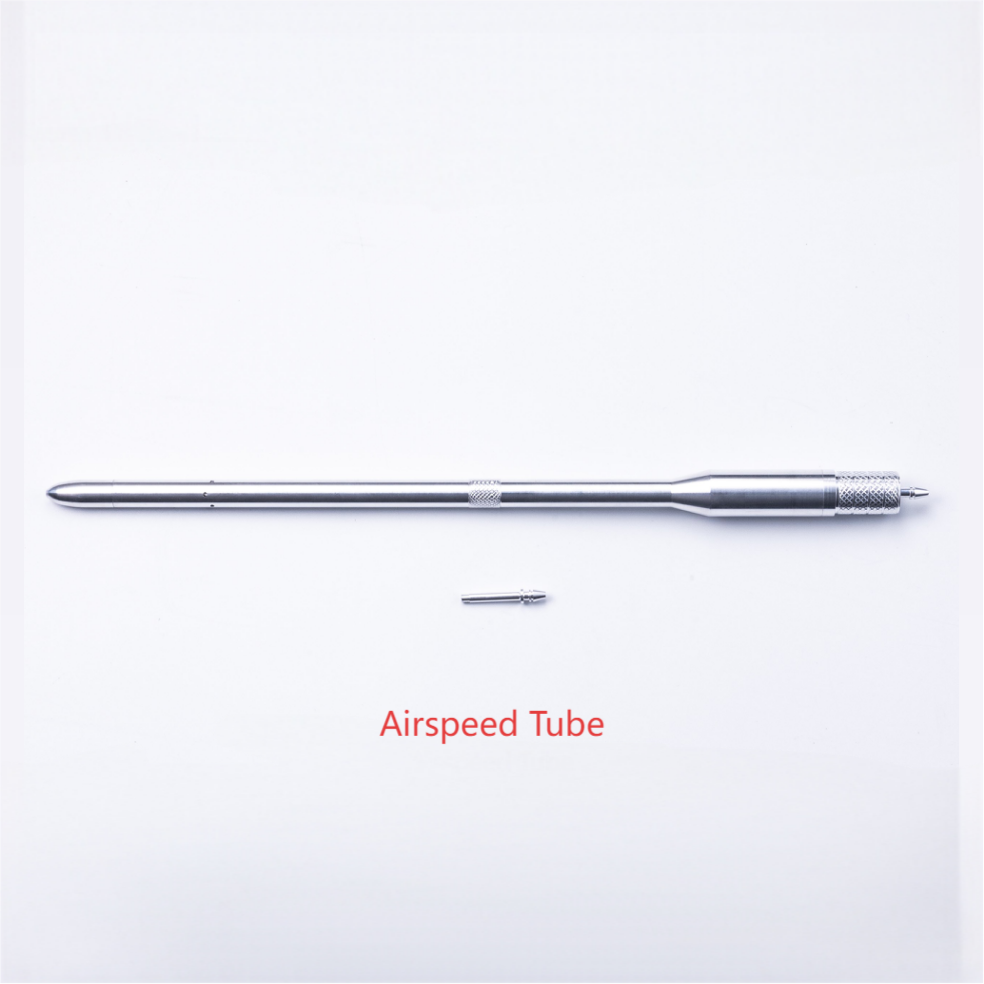

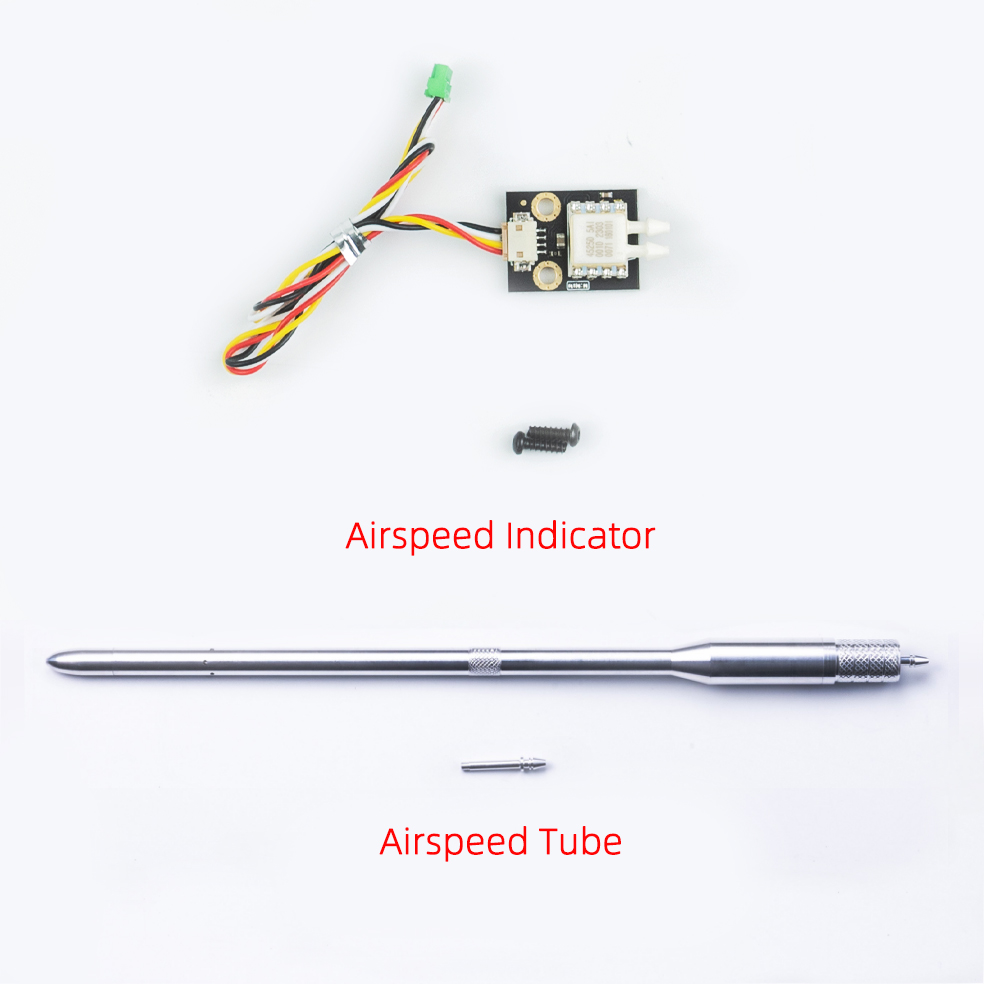

Equipped with a precision airspeed sensor, the system captures highly accurate telemetry data, enabling fine-tuned flight control. This ensures stability and accuracy across diverse mission profiles, meeting stringent performance requirements for industrial or commercial applications. - Professional Integrated Wiring Harness & Battery Mount
- Integrated Wiring Harness: Simplifies assembly while enabling efficient, low-loss power transmission, ensuring reliable in-flight energy supply.

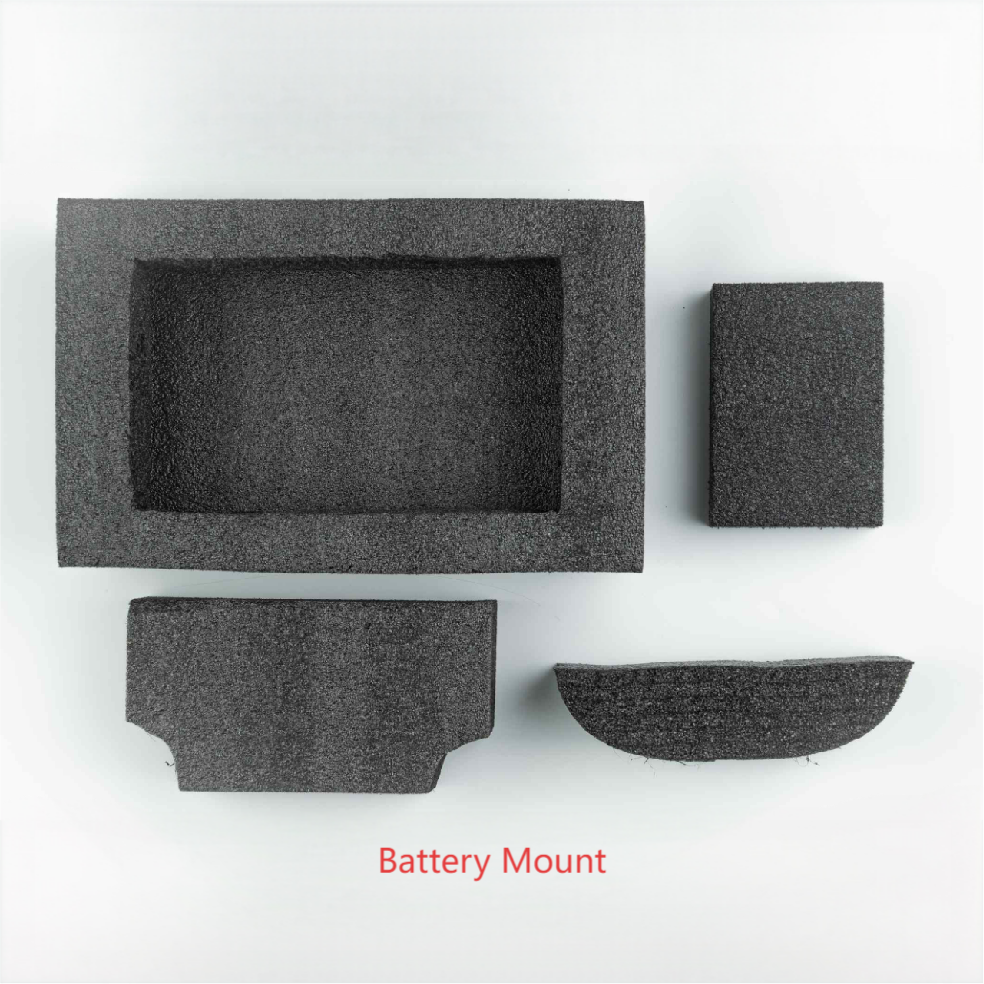

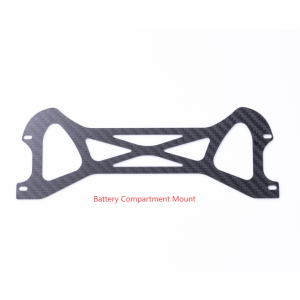

- Engineered Battery Mount: Stabilizes battery positioning during flight, minimizing vibrations and physical stress. This design enhances battery longevity, operational safety, and overall flight endurance.
- Streamlined Assembly & Technical Support
Designed for users with moderate technical skills, the EV350D ARF provides intuitive assembly guidance through detailed positioning diagrams and step-by-step instructions. Comprehensive technical support—including assembly assistance and post-deployment troubleshooting—is included to ensure seamless user adoption and rapid deployment.
SPECIFICATIONS
Dimensions: 3500 * 1860 * 590 mm
Empty Weight: 6.86 kg
Maximum Takeoff Weight: 23 kg
Maximum Payload: 2 kg
Maximum Speed: 30 m/s
Cruise Speed: 24 m/s
Stall Speed: 16 m/s
Flight Duration: 2 Hours
Effective Range: 150 km
Wind Resistance Rating: Rotor: Class 4, Fixed-wing: Class 6
Cabin Dimensions: 1020 * 160 * 206 mm
Packaging/Transport Dimensions: 1500 x 545 x 610 mm
Ideal For
If you possess basic technical capabilities and prioritize cost-effectiveness alongside product reliability, the EV350D ARF is the optimal solution. Visit www.muginuav.com for detailed specifications, purchasing options, and customization inquiries.
| Product Configuration | KIT | ARF | PNP | RTF |
|---|---|---|---|---|
| Airframe (Flight Platform) | ✓ | ✓ | ✓ | ✓ |
| Power System | ✗ | ✓ | ✓ | ✓ |
| Avionics System | ✗ | ✗ | ✗ | ✓ |
| Ground System | ✗ | ✗ | ✗ | ✓ |
| Mission Payload | ✗ | ✗ | ✗ | ✓ |
| Complete Package | ✓ | ✓ | ✓ | ✓ |
| Assembly Service | ✗ | ✗ | ✓ | ✓ |
| Consultation Service | ✓ | ✓ | ✓ | ✓ |

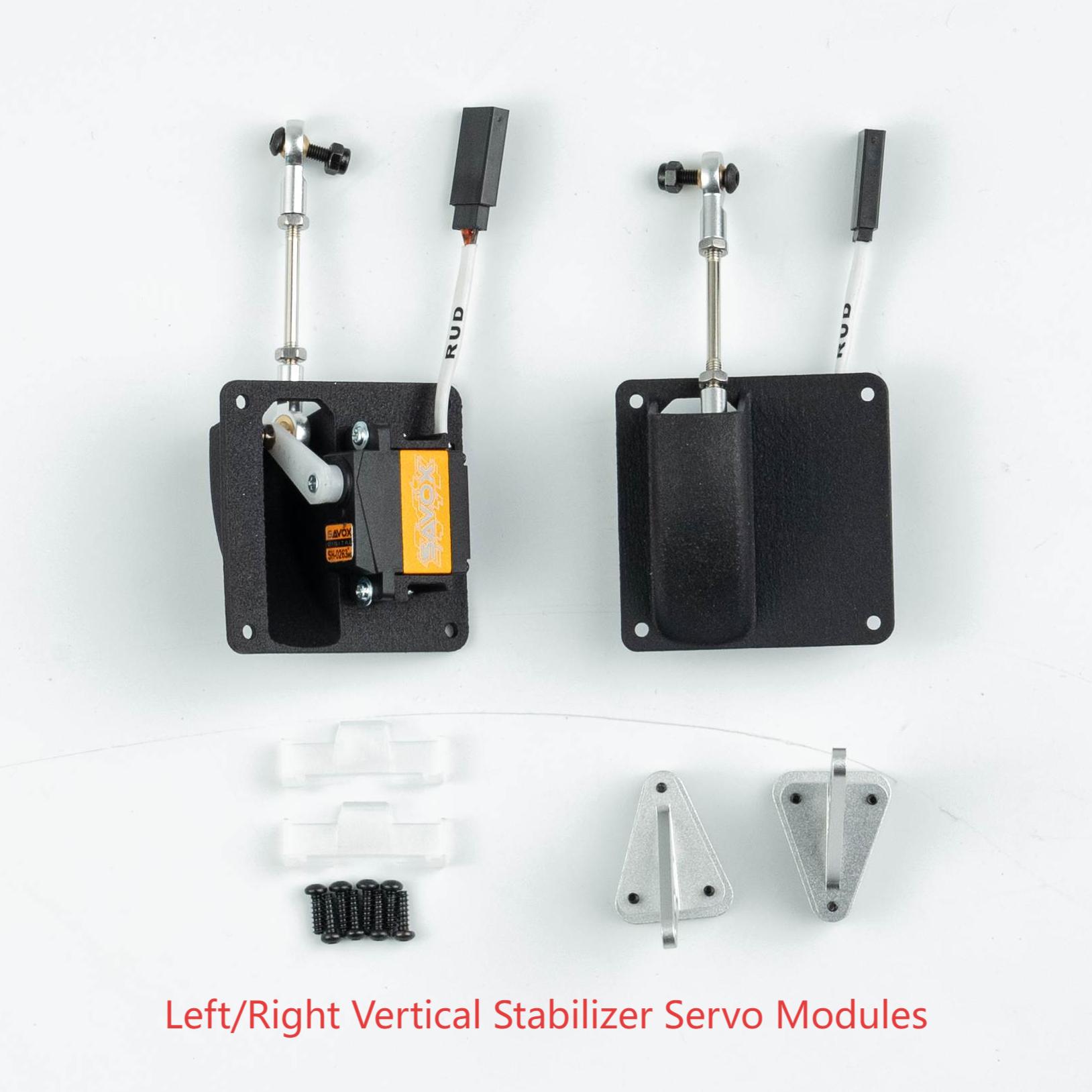

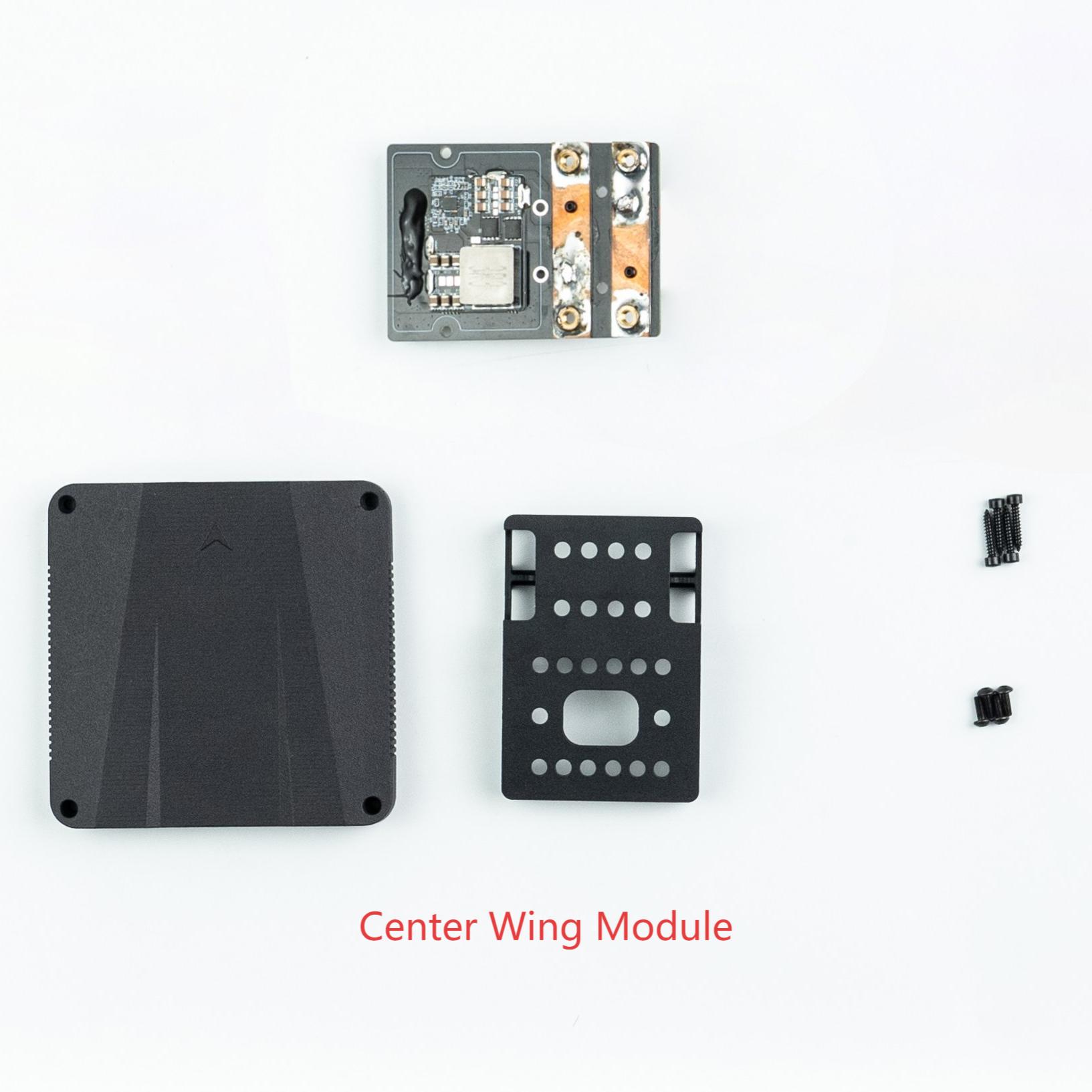

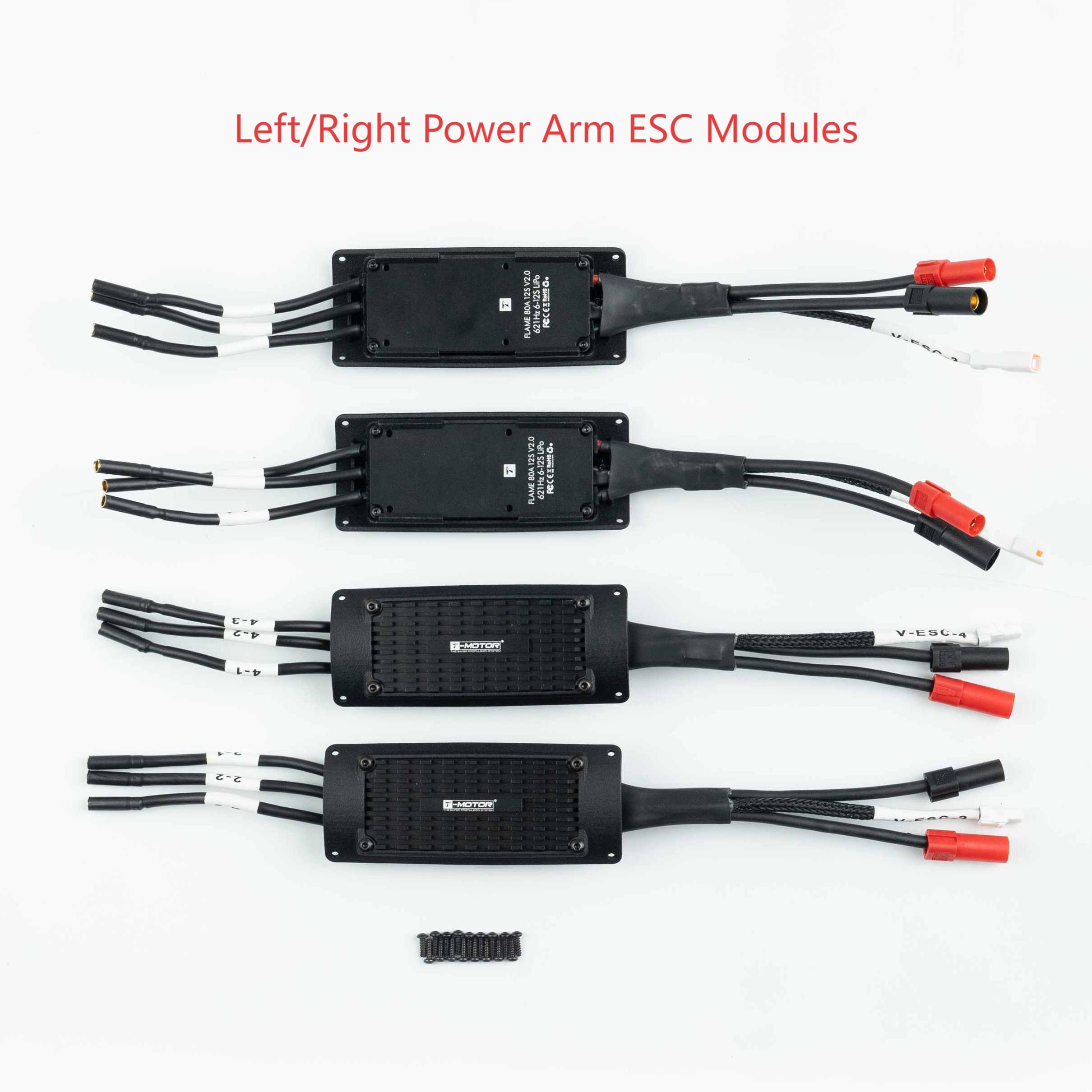

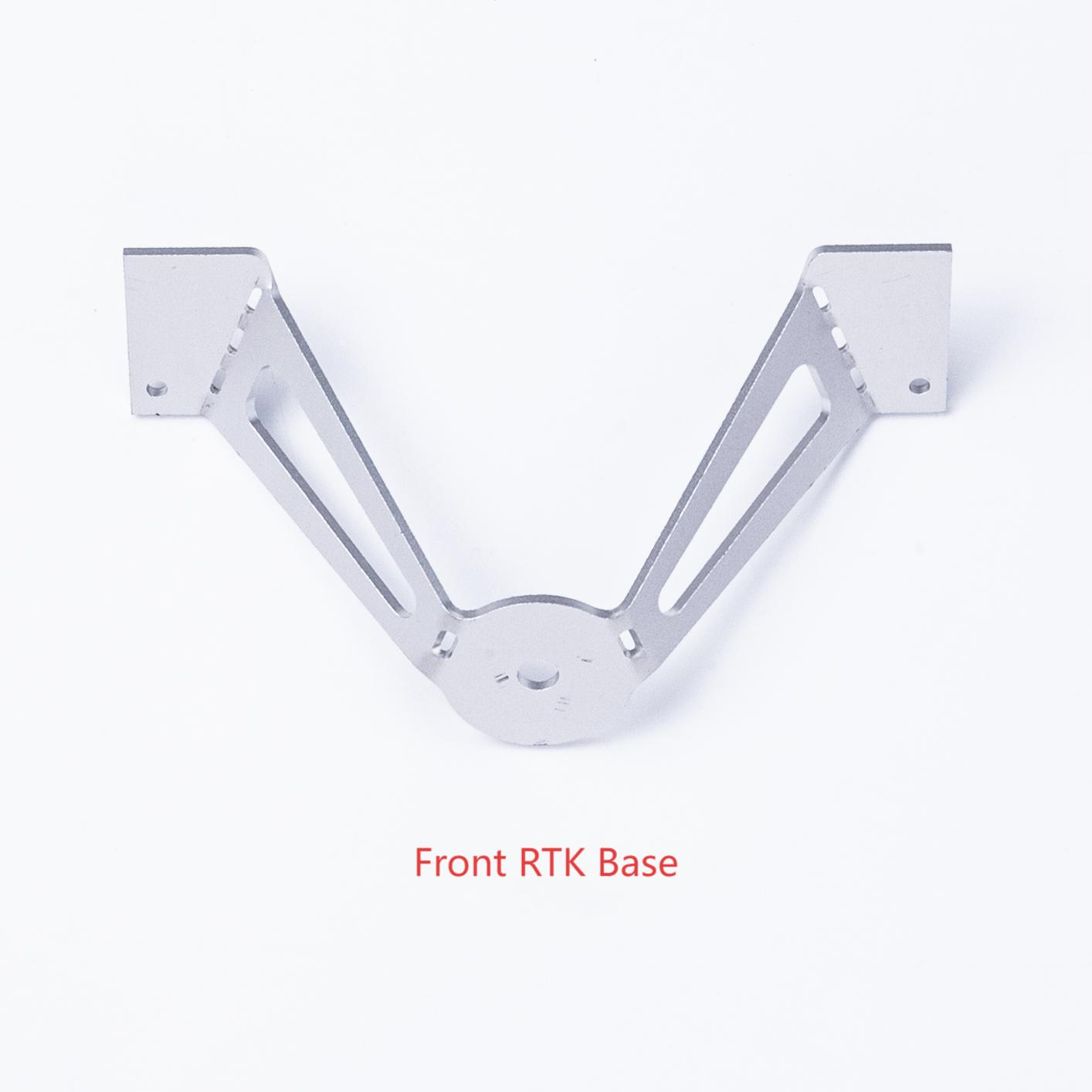

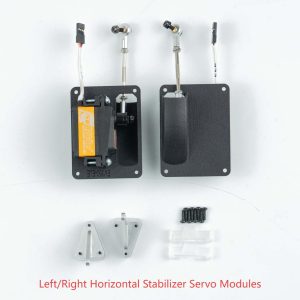

About ARF Picture
